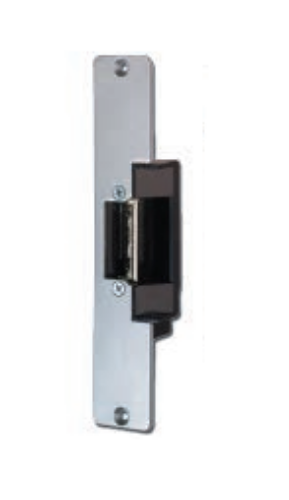

Trine 2678 Adjustable Face Plate - 6-7/8" x 1-1/4" - Satin Aluminum

Trine 2678 Adjustable Face Plate - 6-7/8" x 1-1/4" - Satin Aluminum

Features & Description:

For use in new or replacement aluminum, or hollow, metal jamb installations. Auxiliary lever ramps for use with locksets containing dead-locking levers.

Useful when converting an MS Lock to a dead latch. Up to 5/8" throw, based on 1/8" door gap.

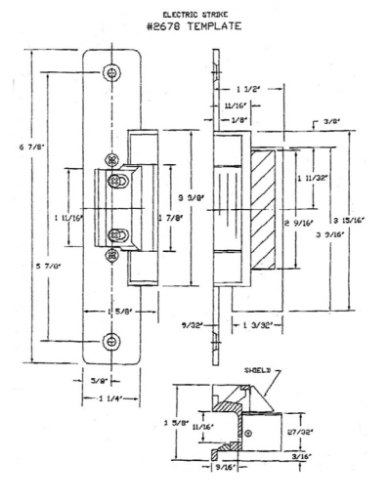

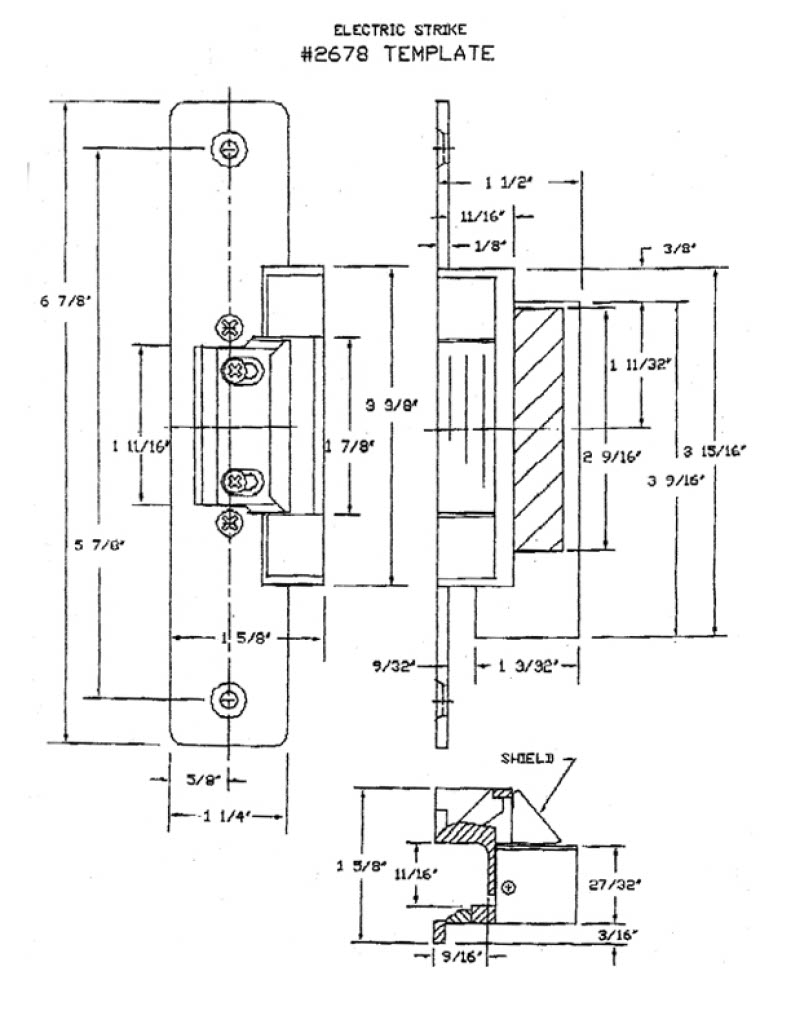

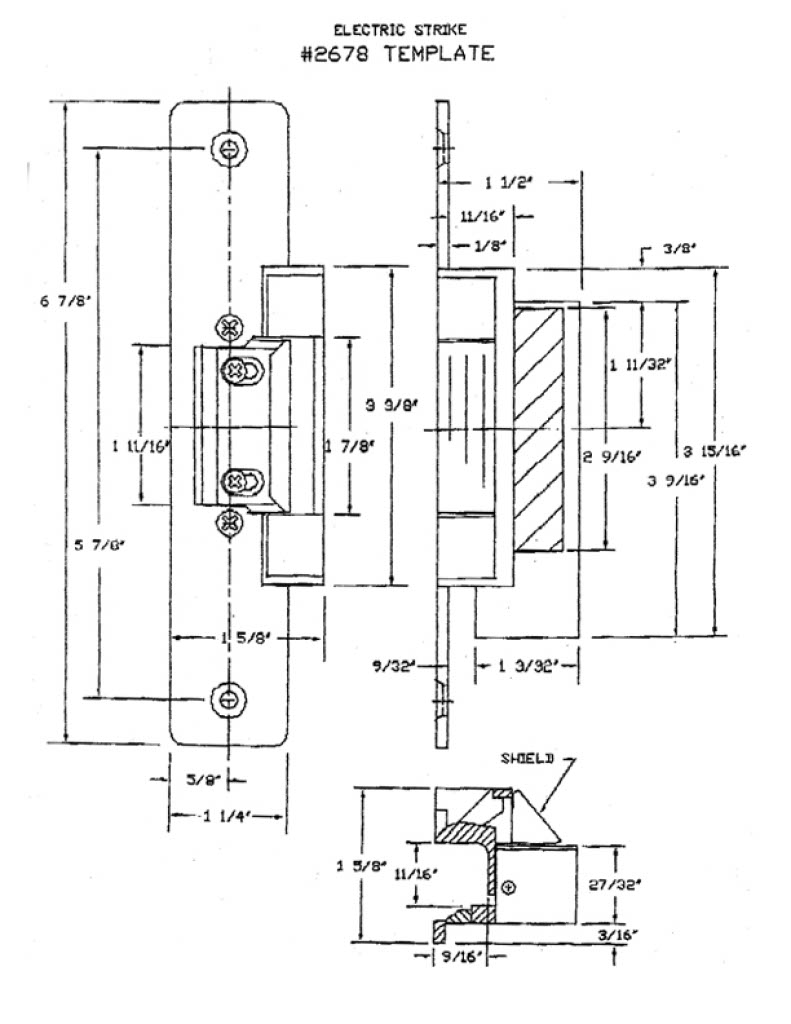

Face Plate 6-7/8" x 1-1/4"

Auxiliary Ramp 3-3/8"

Mortise Backset 1-9/16"

Cavity Depth 9/16"

Cavity Width 5/8"

Cavity Height 1-11/16"

Allows adjustment for wider latch bolts & poorly aligned doors & locksets

1/8" Horizontal Latch Adjustment

Releases Under Slight Door Preload

Life Cycles - 500,000

Holding Force - 900 lbs

Solid Cast Latch - Chrome Plated

Non-Handed Operation

Model: 267812DC, 267824DC
