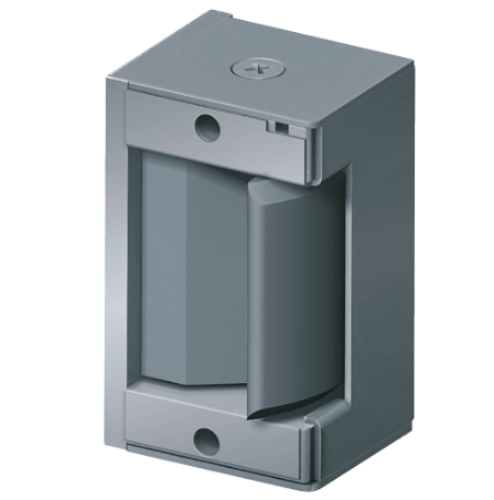

Trine 3024 Electric Strike - Body Only -24DC

Trine 3024 Electric Strike - Body Only -24DC

Mechanism Features:

Fail secure - standard action (unlocks with power)

Intermittent Duty

Included spacers increase cavity depth up to 1/8"

GRADE 1

500,000 + life cycles

1,500 + lbs. holding force (1,200 lbs. for 334)

Dynamic Force 70 ft/lb.

Solid stainless steel latch and in the device body.

Accepts a bolt with a up to 5/8" throw

Non-handed Unit

voltage: 24DC

Specifications:

BHMA - A156.31, 2001

BHMA Grade 1 - All models (except 334)

BHMA Grade 2 - 334
