Trine 323478F-LC Electric Strike, Fire Rated, 12/24VAC/DC, 2-3/4" and 4-7/8" Faceplates, LC-100

Trine 323478F-LC  Electric Strike, Fire Rated, 12/24VAC/DC, 2-3/4" and 4-7/8" Faceplates, LC-100

323478F-LC Electric Strike Features:

3 Hour Fire RatedGRADE 11/8" Horizontal adjustment on both the 478 faceplates as well as the 234 faceplates.12-24 AC and DC - Surge and Kickback protection included.All solid stainless construction.1/8" Horizontal adjustments on all faceplatesIncludes: One (1) 234-234X Adjustable Faceplate One (1) 478-32D Faceplate One (1) 30LC Fire Rated Mechanism One (1) 478-CCFP (Competitor Filler Plate)

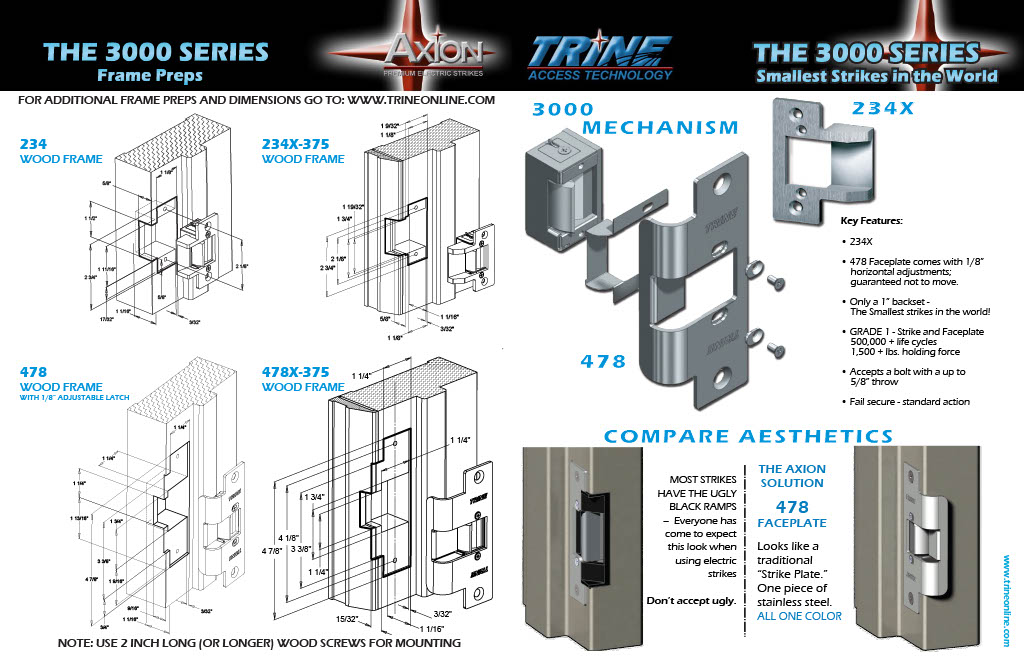

Compare Cutting: Top:Standard Door Strike Plate Middle:Trines 323478FLC electric strike requires up to 60% less cutting and the 234 requires up to 80% less cutting. Bottom:Their electric strike requires extensive cutting of the frame.

323478FLC Includes:

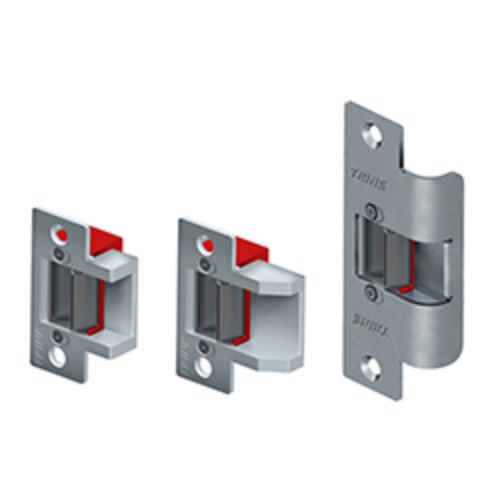

(1) 234-26D - 2 3/4" Faceplate(1) 234X-375-26D - 2 3/4" Faceplate with extended ramp(1) 478-32D - 4 7/8" Faceplate(1) 30LC - 11-29 AC & DC Mechanism323478FLC*Standards:*

3-hour fire rated-  UL10C, Fire Tests of Door Assemblies.Tested to Grade 1 - Heavy Duty NOTE: Fire listing is always void when using fail safe (RS) action

Compare Cutting: Top:Standard Door Strike Plate Middle:Trines 323478LC Faceplates Require up to 60% less cutting and the 234 requires up to 80% less cutting. Bottom:Their strike requires extensive cutting of the frame.

323478LC Electrical Characteristics:

Voltage    Current/Amps  Ohms (Ω)         Duty                  Sound          Wire Color 12DC        0.743/0.298      13.0            Intm./Cont.    Silent         Red 12DC        0.715/0.277       13.0            Intm./Cont.    Silent         Red     12DC        0.397/0.170       13.0            Intm./Cont.    Silent         Red     12DC        0.378/0.173       13.0            Intm./Cont.    Silent         Red

LC100: This electric strike utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.
