Trine 323478LC Electric Strike, 12/24VAC/DC, Fail Secure 234, 234X, 478 Faceplates, 478-CCFP Filler and 30LC Included, Satin Chrome

Trine 323478LC 3000 Series Electric Strike, 12/24VAC/DC, Fail Secure234, 234X, 478 Faceplates, 478-CCFP Filler and 30LC Included, Satin Chrome

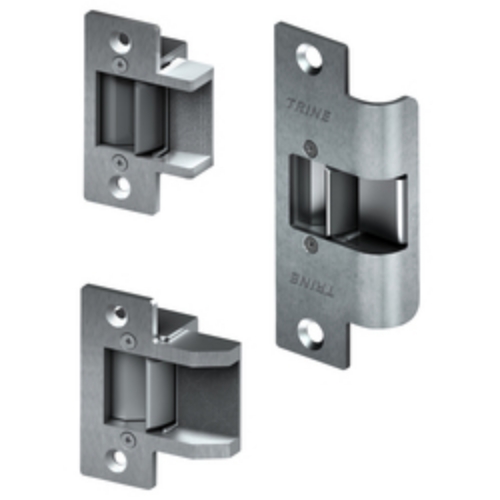

323478LC Includes:

(1) 234-26D - 2 3/4" Faceplate(1) 234X-375-26D -- 2 3/4" Faceplate with extended ramp(1) 478-32D - 4 7/8" Faceplate(1) 30LC - 11-29 AC & DC Mechanism323478FLC*Standards:*

3-hour fire rated -- UL10C, Fire Tests of Door Assemblies.Tested to Grade 1 - Heavy Duty NOTE: Fire listing is always void when using fail safe (RS) action

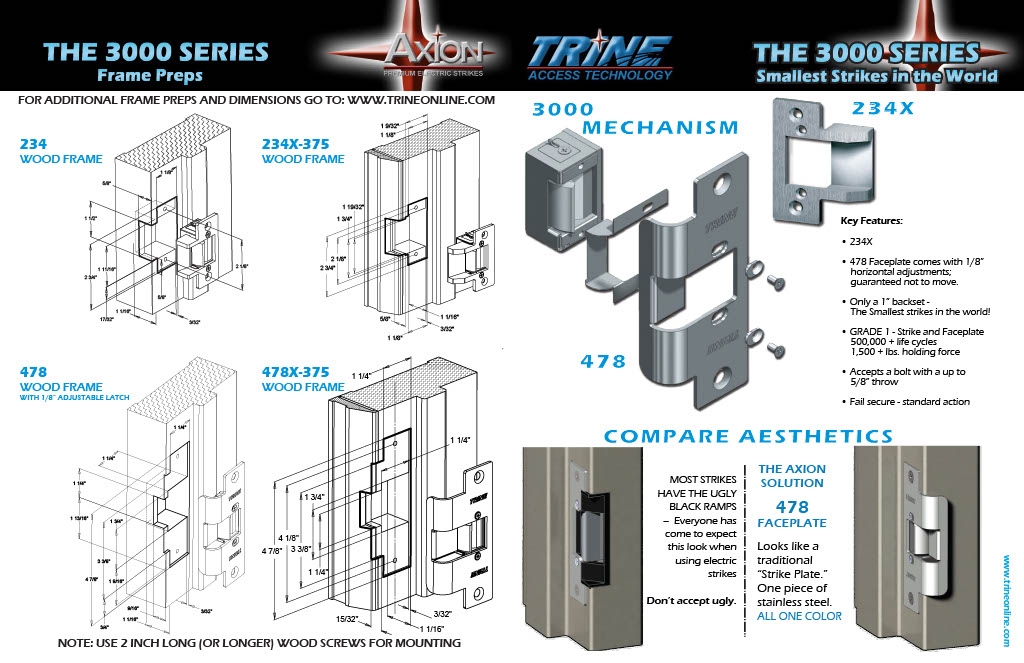

Compare Cutting: Top:Standard Door Strike Plate Middle:Trines 323478LC Faceplates Require up to 60% less cutting and the 234 requires up to 80% less cutting. Bottom:Their strike requires extensive cutting of the frame.

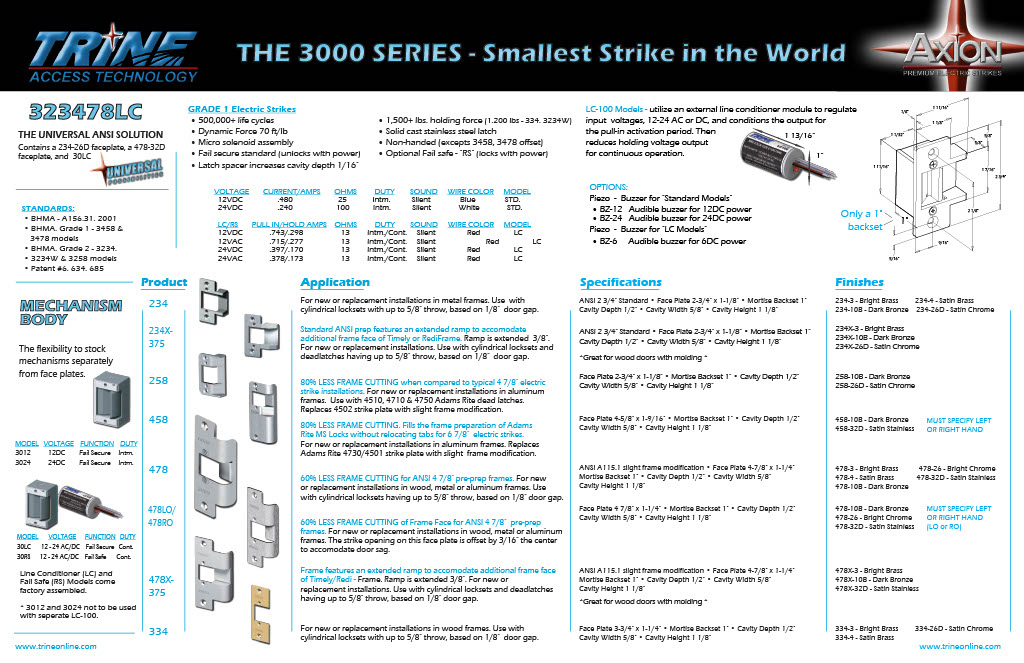

323478LC Electrical Characteristics:

Voltage    Current/Amps  Ohms (Ω)         Duty                  Sound          Wire Color 12DC        0.743/0.298      13.0            Intm./Cont.    Silent         Red 12DC        0.715/0.277       13.0            Intm./Cont.    Silent         Red     12DC        0.397/0.170       13.0            Intm./Cont.    Silent         Red     12DC        0.378/0.173       13.0            Intm./Cont.    Silent         Red

MUST USE LC100 WITH 323478lc AND 30LC - This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.
