Electric Strikes
Trine Electric Strikes
Trine 3000 Series Electric Strikes
Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

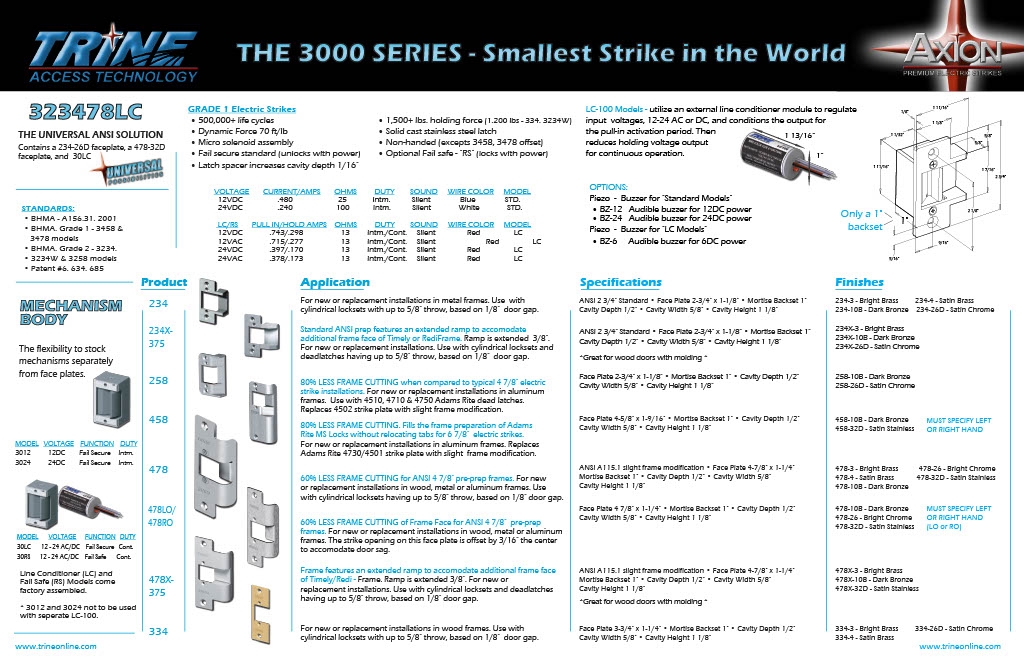

1-page1-3000SERIES

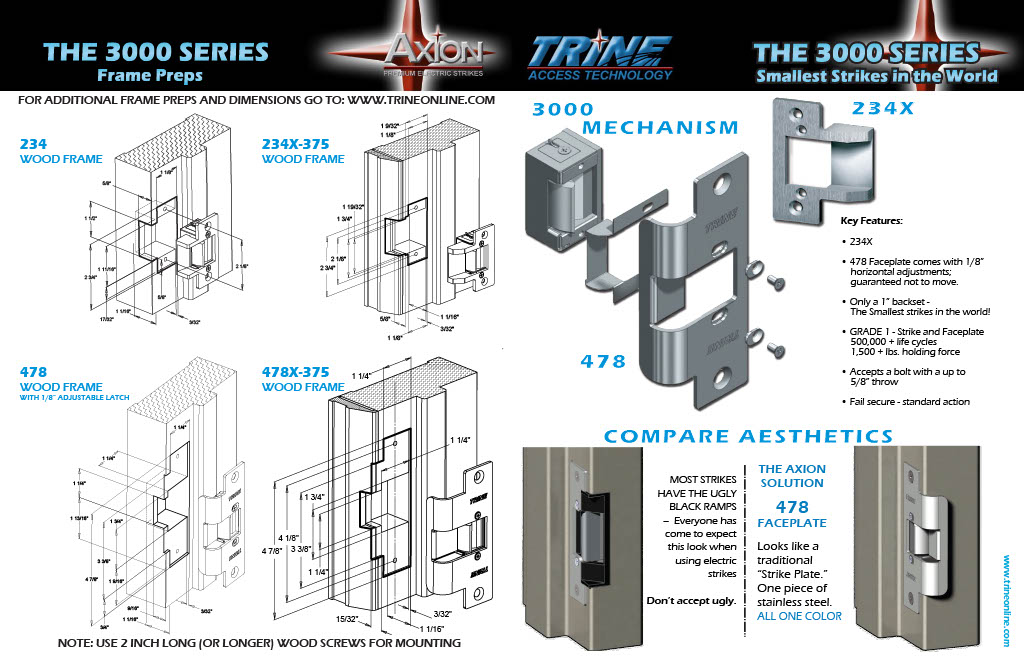

1-Page2-3000SERIES

Product Details

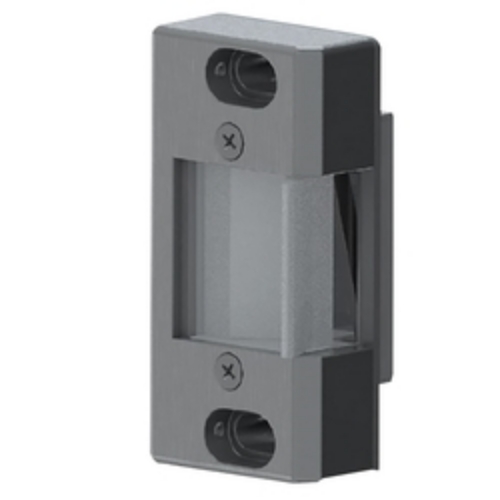

Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

The 3275VRP is the smallest electric strike solution for vertical rod latches. Utilizes theheavy duty3000F series mechanism.

For Use with:

Sargent 97/68Arrow 3700/S1150/600Cal-Royal 9860V/F9860VTownsteel ED1200FVon Duprin 33/35Von Duprin 98/99 (Without the Deadlocking option)

Features:Solid stainless steel latch and locking mechanismIncludes Trine's 4-pin patented anchoring pin system.Horizontal adjustmentMetal installation template included (acts as a mounting bracket, too)1/16" spacer plate provided1/8" Horizontal AdjustmentInclude Trine's patented anchoring system for stability.LC100 included - 12/24 AC/DC input with surge and kick back protectionTested to Grade 1: BHMA - A156.311,500 lbs holding force500,000+ life cyclesVOLTAGE: PULL IN/HOLD AMPS: OHMS: 12VDC .743/.298 13 12VAC .715/.277 13 24VDC .397/.170 13 24VAC .378/.173 13 DUTY:Intermittent/Continuous

Finishes: 3275VRP-LC-ALUM (Aluminum Powder Coat) 3275VRP-LC-DKBZ (Dark Bronze Powder Coat)

Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

SKU: 3275VRP

In Stock

$309.38

Parts & Accessories

About this item

The 3275VRP is the smallest electric strike solution for vertical rod latches.

Resources

Trine 3275VRP Strike Catalog

Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

The 3275VRP is the smallest electric strike solution for vertical rod latches. Utilizes theheavy duty3000F series mechanism.

For Use with:

Sargent 97/68Arrow 3700/S1150/600Cal-Royal 9860V/F9860VTownsteel ED1200FVon Duprin 33/35Von Duprin 98/99 (Without the Deadlocking option)

Features:Solid stainless steel latch and locking mechanismIncludes Trine's 4-pin patented anchoring pin system.Horizontal adjustmentMetal installation template included (acts as a mounting bracket, too)1/16" spacer plate provided1/8" Horizontal AdjustmentInclude Trine's patented anchoring system for stability.LC100 included - 12/24 AC/DC input with surge and kick back protectionTested to Grade 1: BHMA - A156.311,500 lbs holding force500,000+ life cyclesVOLTAGE: PULL IN/HOLD AMPS: OHMS: 12VDC .743/.298 13 12VAC .715/.277 13 24VDC .397/.170 13 24VAC .378/.173 13 DUTY:Intermittent/Continuous

Finishes: 3275VRP-LC-ALUM (Aluminum Powder Coat) 3275VRP-LC-DKBZ (Dark Bronze Powder Coat)

3275VRPLCALUM

Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

Product code: 3275VRP

In Stock

$309.38

$309.38

3275VRPLCALUM

Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

Product code: 3275VRP

In Stock

$309.38

$309.38

Trine 3275VRP-LC-DKBZ Grade 1 Electric Strike, Vertical Rod Solution, 12 & 24 AC/DC

SKU: 3275VRP
