Trine 4200 Flexible Electric Strike For Cylindrical Locksets & Dead Latches

About this item

Trine 4200 Flexible Electric Strike For Cylindrical Locksets & Dead Latches

Description & Features:

• Standarad 4200 is Fail Secure, For Fail-safe action (locks with power) Select “RS" to the item number.

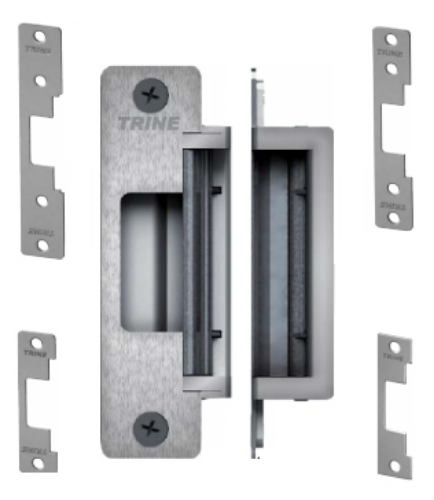

• All 4 Faceplates Included - The Faceplates Will Cover Most Installations In Aluminum Frames

• Use with cylindrical locksets & dead latches in aluminum, metal, and wood frames.

• The 4200 solves problems auxillery latch “pins" found on Adams Rite® locks.

• Tall Cavity solves door sag problems. Tallest latch in its class.

• 1 - 1/16" shallow backset solves frame depth Problems

• 4 faceplates included

• 12 & 24DC, 12-24 AC All the low voltage fl exibility you need.

• Low Current Draw .240 Amp at 12DC makes it very PoE Friendly

• 1 Trim Skirt Included

• Removeable Fascia: Change colors in the field to match your frame.

• Grade 1 Strike: 1,500+ lbs. of Holding Force

Model: 420032D, 4200ALUM, 4200BLK, 4200GRN, 4200WHT, 4200DKBZ, 4200RS32D, 4200RSALUM, 4200RSBLK, 4200RSGRN, 4200RSWHT, 4200RSDKBZ
