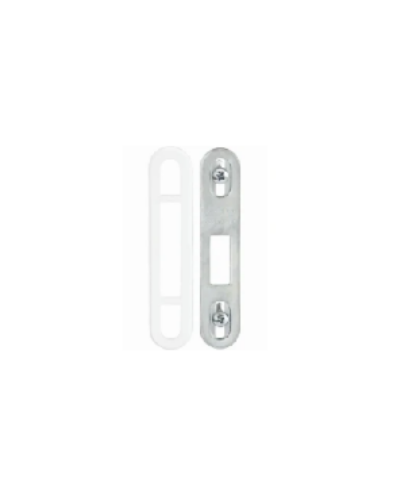

Trine 4801 Electric Bolt Strike - For Yale Squarebolt & Corbin Russwin Securebolt

About this item

Trine 4801 Electric Bolt Strike -  For Yale Squarebolt & Corbin Russwin Securebolt

Features:

• This is a Grade 1 Strike - 3/4" thick Surface Mount that comes with a 1/8" Spacer.

• Fail-safe/Fail-secure (field selectable).

• Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input - with surge and kickback protection

• For use with the Yale (LB Option) Squarebolt® or Corbin Russwin Securebolt™ in new or replacement installations with wood or metal door frames.

• Use with surface mounted rim device with up to 1" throw.

• Cavity Opening - Height: 1 17/32" Width: 1 5/32"

• 6-Pin Anchor system provided to handle the toughest installations.

• BHMA Grade 1 Electric Strike - 1,500,000+ Life cycles - 3,000+ lbs. Holding Force

• Contains a one piece locking mechanism with one Solenoid

Model: 4801US10, 4801US10B, 4801US4, 4801US32D

Resources

• http://www.trineonline.com/pdfs/catalog_pages_priceless/17.pdf
