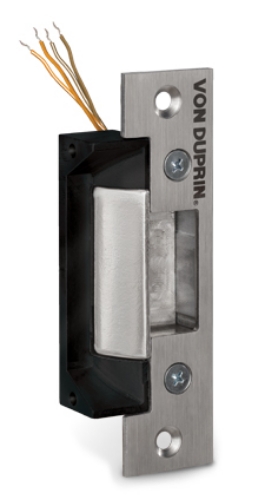

Von Duprin 4211 Electric Strike for cylindrical locks, 5⁄8" - 3⁄4" throw

Von Duprin 4211 Electric Strike for cylindrical locks, 5⁄8" - 3⁄4" throw

Standard features

Power failure mode: Field configurable fail-secure/fail-safe

Voltage: Field configurable 12 VDC/24 VDC dual voltage solenoid

Finish: BHMA 630/US32D satin stainless steel

Includes mounting tabs, fail secure conversion hex key, wood and machine screws, plus a suppressing diode.

Features and Benefits

Capable of four in-field configurations

Shallow 1-3/8" backbox depth

Non-handed, internal solenoid design

Low current draw for PoE installations

Field selectable power failure mode (fail-safe/fail-secure) without disassembly

Heavy-duty stainless steel faceplate

Options include entry buzzer and rectifier kits

Suitable for interior and exterior doors

Meets ANSI/BHMA A156.31, Grade 1 for endurance and dynamic strength

Meets ANSI/BHMA A156.31, Grade 2, 1000 lbs static strength

Dynamic strength 70 ft-lbs

Endurance 500,000 cycles

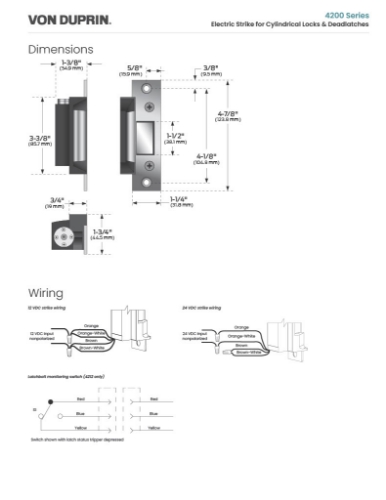

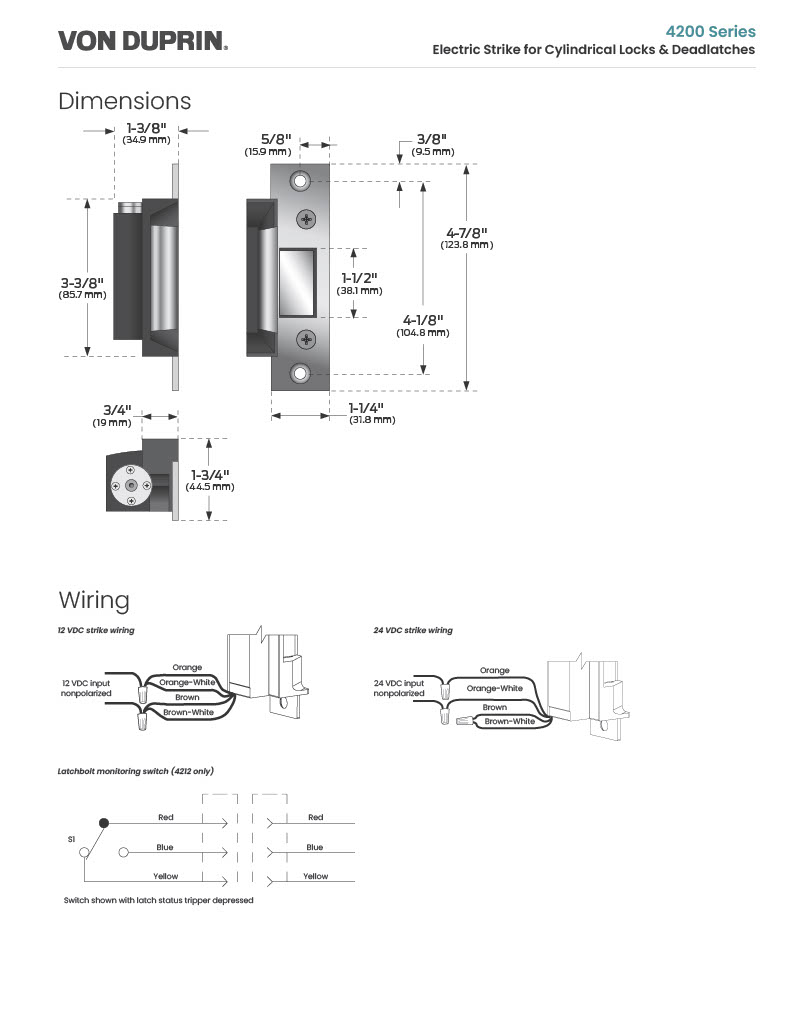

Dimensions

Backbox depth: 1-3/8"

Face Plate Lentgh: 4 7/8"
