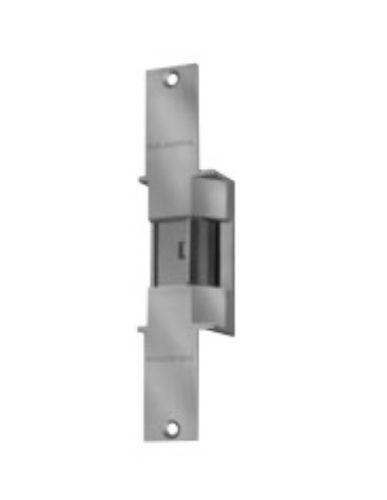

Von Duprin 6225 Electric Strike, Open Back for Double Door

Von Duprin 6225 Electric Strike with Open Back

Von Duprin 6225 electric strike open back: for use with mortise locks without deadbolt or cylindrical locks on 1 3⁄4˝ (44mm) thick double door (hollow metal or aluminum) applications. Designed to replace Folger Adam 310-2 OB.

Heavy-duty stainless steel construction Tested to over 250,000 cycles 1500 lbs. holding strength 70 lbs. impact strength.

FSE - Fail Secure(standard) electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.

24VDC standard with 12VDC and AC operation optional.

Features and Benefits

Accepts 3⁄4˝ (19mm) Throw Latchbolt Non-handed Horizontally Adjustable Strike box is adjustable to compensate for any misalignment of the door or frame Two piece plug connectors are furnished for ease of installation and for removal during strike servicing.

Options

AC Operation: SO12 and SO24 are rectifier kits to  convert AC voltage to operate the  DC solenoids. These kits are field installable and plug in-line to solenoid.

EB - Entry Buzzer: Is available for use with fail-secure strikes. Installed in the frame and in parallel with the circuit, the buzzer will sound when the strike is unlocked.

Finishes:

US32D Satin Stainless, US10 Satin Bronze, US10B Oil Rubbed Bronze, US32 Bright Stainless.

Model: 622524V32D, 622512V32D, 6225FSE, 622512V, 622524VDC,  6225US10, 6225US10B, 62250US32, 6225US32D.

Dimensions:

**
