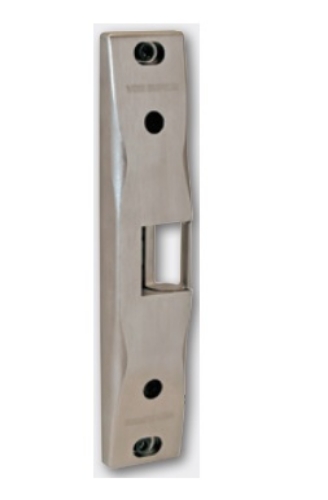

Von Duprin 6300 Surface Mount Electric Strike for Rim Device, Satin Stainless Steel

Von Duprin 6300 Series electric strikes are designed for use with a variety of Rim Devices. It interfaces with the latch mechanism of the exit device. The movable lip (keeper) allows a door to open even when the latch bolt is extended. This feature, called remote release, provides added benefits such as increased convenience and efficiency. The 6300 Series also provides added security and traffic control.

The 6300 is fail-secure (FSE) only to achieve compliance with UL10C for fire-rated openings. In a fail-secure application, the door is normally locked. To unlock the door, power must be applied. The 6300 strike can be used with either 12VDC or 24VDC. There are 2 connectors that ship with it and the appropriate connector for either 12VDC or 24VDC will be used, based upon the available voltage at the opening.

Features and Benefits

Non-handed design provides greater flexibility Requires no alteration or cutting to existing frame UL1034 burglary-resistant and UL10C electric strike for fire door Stainless steel (satin) finish Durable stainless steel construction Field selectable voltage 12VDC or 24VDC Meets BHMA A156.31, Grade 1 for endurance and strength Static strength 1500 lbs Dynamic strength 70 ft-lbs Endurance 2,000,000 cycles

Rim exit device compatibility 6300 strikes:

Von Duprin    VD    22/22-F Rim Von Duprin    VD    33A/35A Rim Von Duprin    VD    55 Rim Von Duprin    VD    88/88-F Rim device Von Duprin    VD    98/99 and 98/99-F Rim Falcon                   24/24-F Rim Falcon                   25/25-F Rim Falcon                   19/19-F Rim Falcon    Doromatic  1790 Falcon    Doromatic  2090

Options

AC Operation: SO12 and SO24 are rectifier kits to  convert AC voltage to operate the  DC solenoids. These kits are field installable and plug in-line to solenoid.

EB - Entry Buzzer: Is available for use with fail-secure strikes. Installed in the frame and in parallel with the circuit, the buzzer will sound when the strike is unlocked.

Model: Von Duprin 6300, 6300US32D, 630032D, 6300 US32D, 630032D

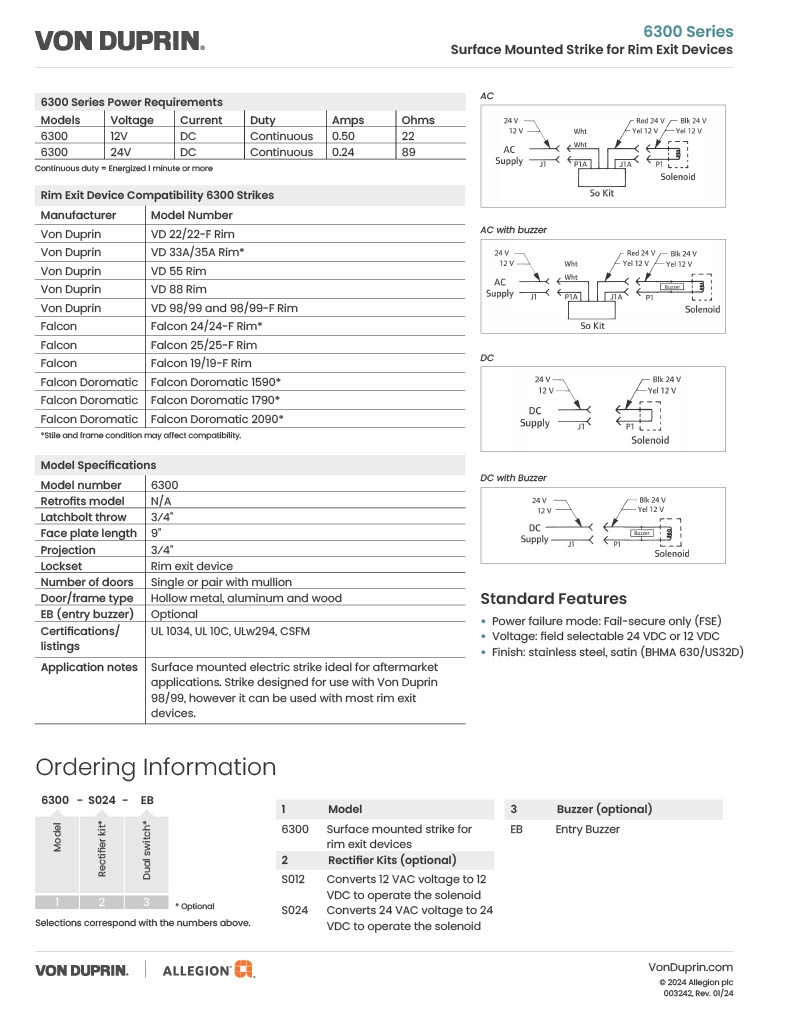

6300 specifications: Model #                           6300 Latchbolt throw                3⁄4" Face plate length              9" Projection                        3⁄4" Lockset                            Rim exit device

Doors                           Single or pair with mullion

Door/frame type               Hollow metal, aluminum and wood EB (entry buzzer)             Optional Certifications                   UL1034, UL10C

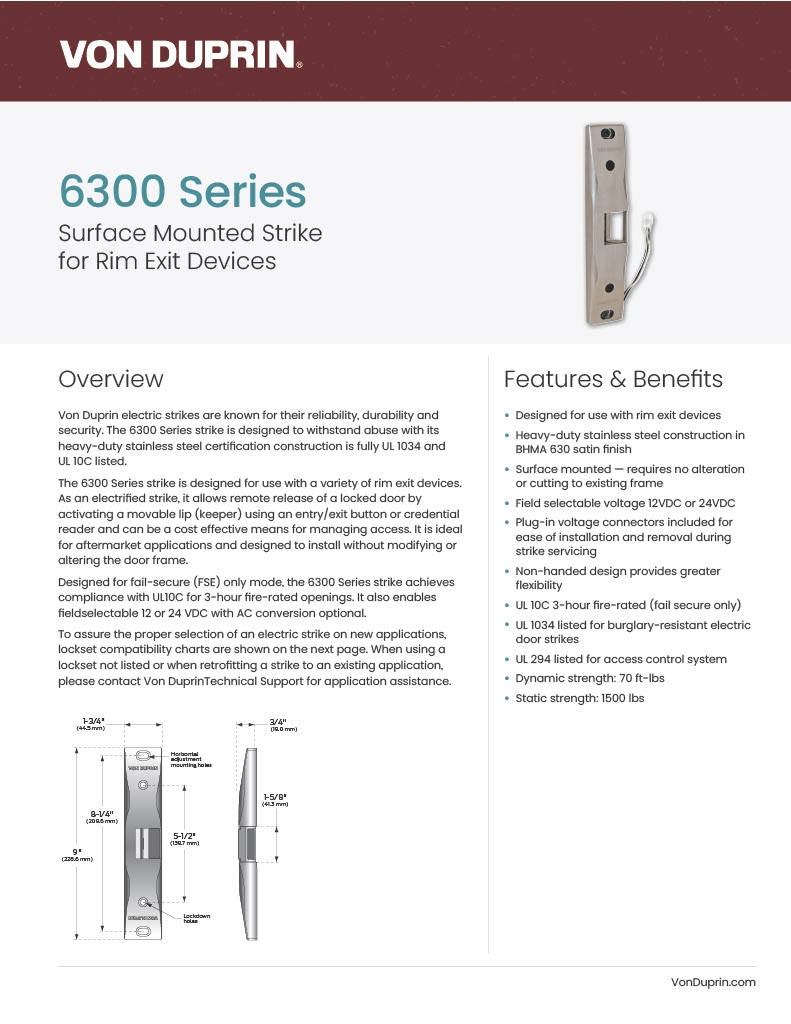

Dimensions:

**
