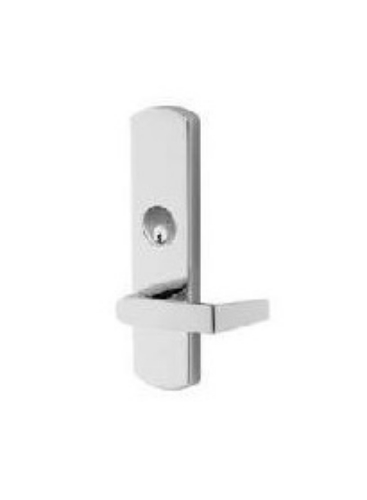

Von Duprin E996L Electrified Breakaway Lever Trim

**Von Duprin E996L Electrified Breakaway Lever

**

Power input for E996L is 24VDC Two wires on trim are non-polarized (18 AWG minimum)

The E996L electrified Breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented Breakaway trim design.

The 24VDC solenoid can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim.

When electrically unlocked the unit operates as a normal lever trim. When electrically locked, the lever feels locked, but when more than 35 pounds of torque pressure is applied, the Breakaway lever feature engages.

The E996L is provided standard in a fail safe (FS) condition, but can be field converted to a fail secure (FSE) where allowed.

Device type:R/V (rim/surface or concealed vertical rod) or M (mortise).

Handing:RHR is furnished standard if not specified. Field reversible.

Lever style:(06 lever is furnished standard). #01 #02 #03 #05 #06 #07 #12 (Handed) #16 #17 #18

Cylinder Type: - Rim or Vertical Rod Device - Rim  - Mortise Lock Device - 1-1/4" Mortise

Finish:US3, US4, US10, US10B, SP313, US26, US26D, SPBLK, US15

Solenoid Continuous Duty 24VDC Solenoid Draw 0.22 amp

Model:Von Duprin, E996L01M, E996L01R/V, E996L02M, E996L02R/V, E996L03M, E996L03R/V, E996L06M, E996L06R/V, E996L07M, E996L07R/V, E996L12M E996L12R/V, E996L17M, E996L17R/V, E996L18R/V, E996LBE03R/V, E996LBE06M, E996LBE06R/V, E996LBE17R/V
