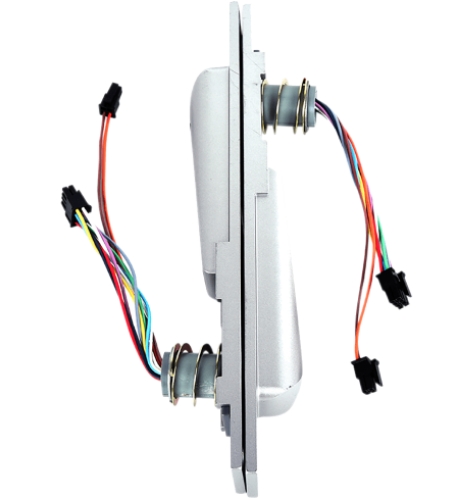

Von Duprin EPT-2 Electrical Power Transfer

Von Duprin EPT-2 Electrical Power Transfer

Two 18 gauge wires, Up to 2 AMPS @ 24VDC, with a 16 AMPS Maximum Surge

Electric Power Transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The units are completely concealed when the door is in the closed position, and are ideal for installations involving abuse or heavy traffic.

Two models are available; EPT-2, two 18 gauge wires and EPT-10, ten 24 gauge wires.

The EPT-2 and EPT-10 are U/L listed asmiscellaneous door accessory. UL Listed for use on firedoors

Door applications up to 5" butt hinges 180˚ swing, 5-1/2" butt hinges 130˚ swing, 6" butt hinges 110˚ swing, 3/4" butt offset pivots 180˚ swing. Not for use with swing clear hinges or center-hung pivots.

Finishes SP28 (sprayed aluminum) SP313 (sprayed duranodic)

Dimensions Housing 9" x 1-1/4" x 1-5/8" (229mm x 32mm x 38mm)

Model:Von Duprin EPT2, SP28, SP313
