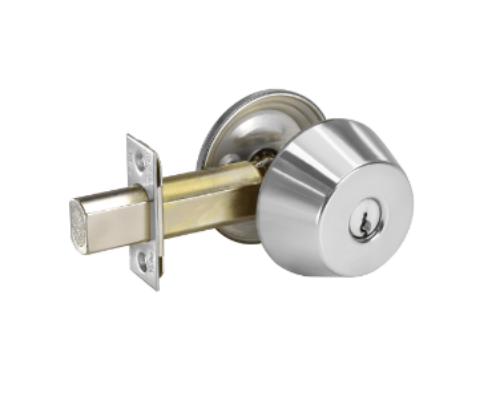

Accentra D211 Single Cylinder Deadbolt, Grade 2, 2-3/8" Backset

The Accentra D211 is the single cylinder deadbolt from the Accentra D Series, configured with a 2-3/8-inch backset. If you searched "d211 strike", "accentra deadbolt", "accentra deadbolts", "yale d292", "d211", or "211l"  this is the product. Accentra is the rebranded name for Yale commercial hardware under ASSA ABLOY. The D211 carries the same specifications as the Yale D211  same function, same bolt, same certifications, same installation. The brand name changed; the product did not.

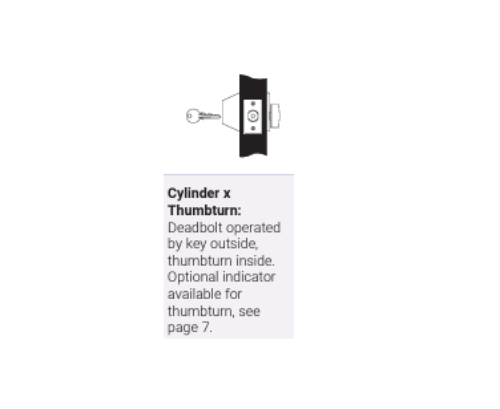

ANSI E0152 Function: Key Outside, Thumbturn Inside

The D211 function is ANSI E0152  deadbolt operated by key from outside, thumbturn from inside. From outside, a key retracts and extends the deadbolt. From inside, a thumbturn retracts and extends the deadbolt. Neither side requires a key for operation from the inside  the thumbturn always works freely. This is the standard single cylinder deadbolt function used on virtually every commercial and institutional door that requires supplemental dead-locking in addition to the primary latchbolt.

The D211 is deadbolt only. It has no latch, no lever, and no automatic door retention. It's installed as a secondary security lock above the primary cylindrical or mortise lock, adding a dedicated key-controlled bolt that stays thrown until manually retracted.

D211 vs D212: The Backset Is the Only Difference

If you searched "d211" and compared it to the D212  these are the same lock in different backsets. The D211 is the 2-3/8-inch backset version. The D212 is the 2-3/4-inch backset version. Backset is the distance from the edge of the door to the center of the bolt hole. Most standard commercial and residential doors use either 2-3/8-inch or 2-3/4-inch backsets. Measure from the door edge to the center of your existing hole before ordering. The wrong backset means the faceplate won't sit flush on the door edge.

D211 Strike: What Ships Standard and What You Need to Know

If you searched "d211 strike"  the D211 ships with both a metal door strike and a wood door strike standard. The strike is 2-3/4 inches by 1-1/8 inches with strike reinforcement included in the package. A 1-1/8-inch latch front filler plate is also supplied standard with each D Series deadbolt. The standard bored hole prep follows ANSI/BHMA A156.115 specifications. No special tools or custom preparation required  standard hole saw installation applies to square or beveled doors opening in or out.

211L: The SFIC Prep Variant

If you searched "211l"  the B-D211 variant accepts SFIC (Small Format Interchangeable Core). The standard D211 ships with a conventional cylinder. The B-D211 ships less core and is prepped for SFIC drop-in cores for facilities running an interchangeable core key system. Confirm which cylinder format your facility uses before ordering. The standard D211 with conventional cylinder includes two keys.

Yale D292 vs D211: Occupancy Indicator vs Standard Deadbolt

If you searched "yale d292" and landed here  the D292 is a different function in the Yale/Accentra D Series. The D292 includes built-in occupancy indicators that display on both sides of the door showing "In Use" or "Vacant" status when the deadbolt is thrown. The D211 has no indicator. If your application requires visible occupancy status on restroom or consultation room doors, the D292 is the correct specification. If a standard key-and-thumbturn deadbolt without indicator is what you need, the D211 is the correct product.

Bolt Construction and Why the Hardened Pin Matters

The D211 deadbolt is 1-inch throw solid steel with a hardened, free-spinning steel pin insert. The free-spinning pin is the anti-saw feature. When a saw blade contacts the spinning pin during a cutting attack, the pin rotates with the blade rather than being cut through. The saw generates heat and friction but can't make progressive cuts through the spinning steel. This is a security feature that doesn't show in photos but matters significantly on doors subject to physical attack risk.

Specifications

Model: Accentra D211

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: D Series Cylindrical Deadbolt

Function: ANSI E0152  single cylinder, key outside, thumbturn inside

Backset: 2-3/8" (60mm)

2-3/4" Backset Version: D212

Deadbolt: 1" (25mm) throw, solid steel with hardened free-spinning pin insert

Faceplate: 2-1/4" x 1" (57mm x 25mm)

Latch Filler: 1-1/8" supplied standard

Strike: 2-3/4" x 1-1/8" metal and wood strikes with reinforcement, included

Door Thickness: 1-3/8" to 1-3/4" standard

Handing: Non-handed, field reversible

SFIC Version: B-D211 (less core)

Grade: ANSI/BHMA A156.36 Grade 2

UL Fire Listing: 3 hours (steel/composite/hollow metal), 1-1/2 hours (wood/plastic composite), 20 minutes (wood core)  with primary latching device

Finishes: 605, 606, 612, 613, 619, 625, 626

American Locksets has stocked Accentra and Yale D Series deadbolts since 2001.
