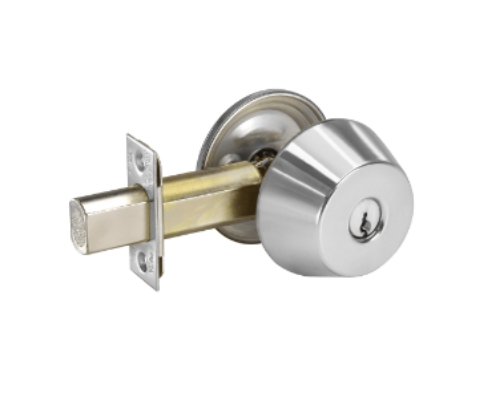

Accentra D232 Cylinder x Blank Rose Deadbolt, Grade 2, 2-3/4" Backset

D232 Cylinder x Blank Rose Deadbolt, Grade 2, 2-3/4" Backset, 2-1/4" x 1" Face

Deadboltoperated by keyoutside. Blank rose withexposed screws inside.

Model:D231 - 2-3/8" Backset, D232 - 2-3/4" Backset.

Deadbolt:1" (25mm) throw, solid steel deadboltwith hardened, free spinning, steel pininsert.

Front:2-1/4" x 1" (57mm x 25mm) front and1-1/8" (29mm) latch front filler suppliedstandard with each D series deadbolt.

Strikes:2-3/4" x 1-1/8" (70mm x 29mm) metaland wood door strikes with strikereinforcement supplied standard.

Installation:Can be installed on doors prepared toANSI/BHMA A156.115 specificationsusing a simple bored-hole installation forsquare or beveled doors, opening in orout.

Backset:The D series deadbolts are available witheither 2-3/4" (70mm) or 2-3/8" (60mm)backset.

Door thickness:Standard for 1-3/8" (35mm) to1-3/4" (44mm) thick doors.

Handing:Functions are non-handed and easily field reversible.

Warranty:The D series deadbolts carry a one yearmechanical warranty

ANSI/BHMA:Certified ANSI/BHMA A156.5 Grade 2.

Fire listings:D series deadbolts, when used in conjunction with the primary latching device, are UL - cUL listed for use on fire doors having a rating up to and including 3 hours. In addition, D Series are cUL listed for use on wood doorsm having a rating up to and including 90 minutes.
