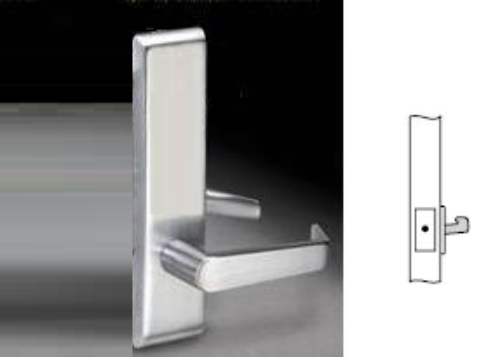

Accentra (Yale) 855FL Mortise Dummy lever trim one side

Available in the following trim styles: **

**

Dummy trim one sidePush or pull only.Knob/lever one side.Knob/lever non-operational and rigid at all times.Available in all sectional and escutcheon trim.

Handing:Yalemortise locks are field reversible. These lockscan be converted to accommodate thehand of the door. However, to reduceinstallation costs, it is recommendedthat the hand of the door be specifiedfor each lockset ordered.

*Door Thickness: *

1-3/4" (44mm) standard.

Warranty:Mechanical mortise locks (10) year warranty and Electrified mortise (2) year warranty.

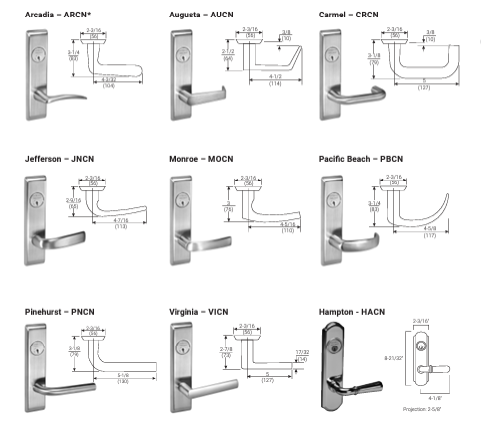

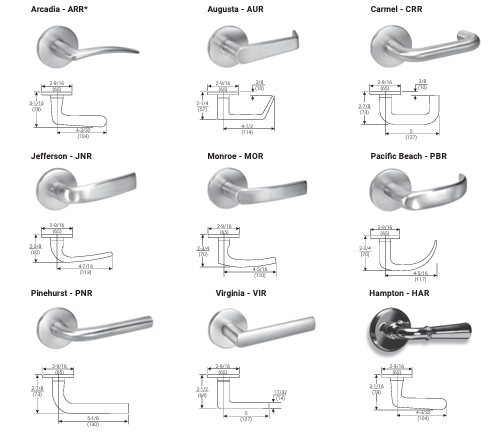

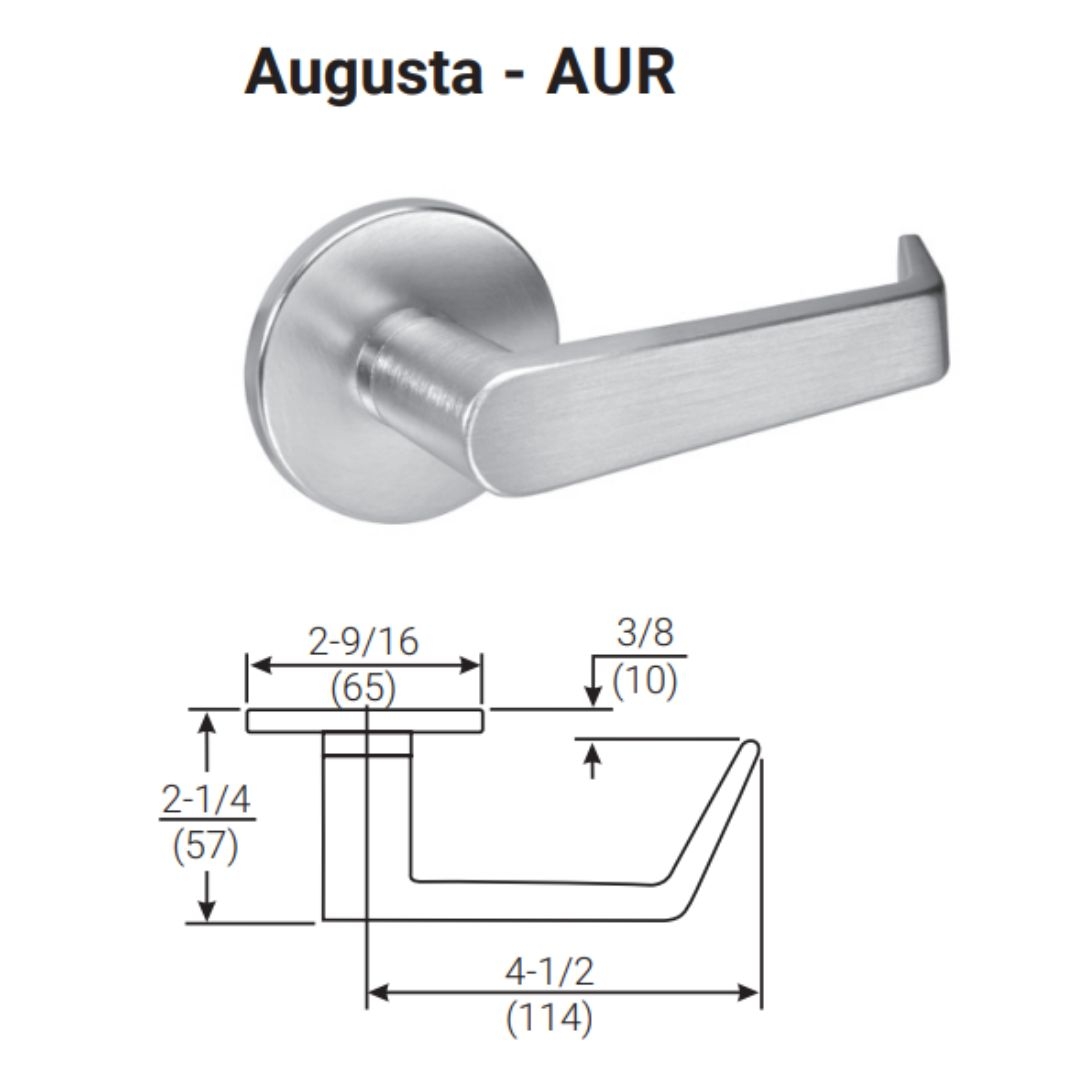

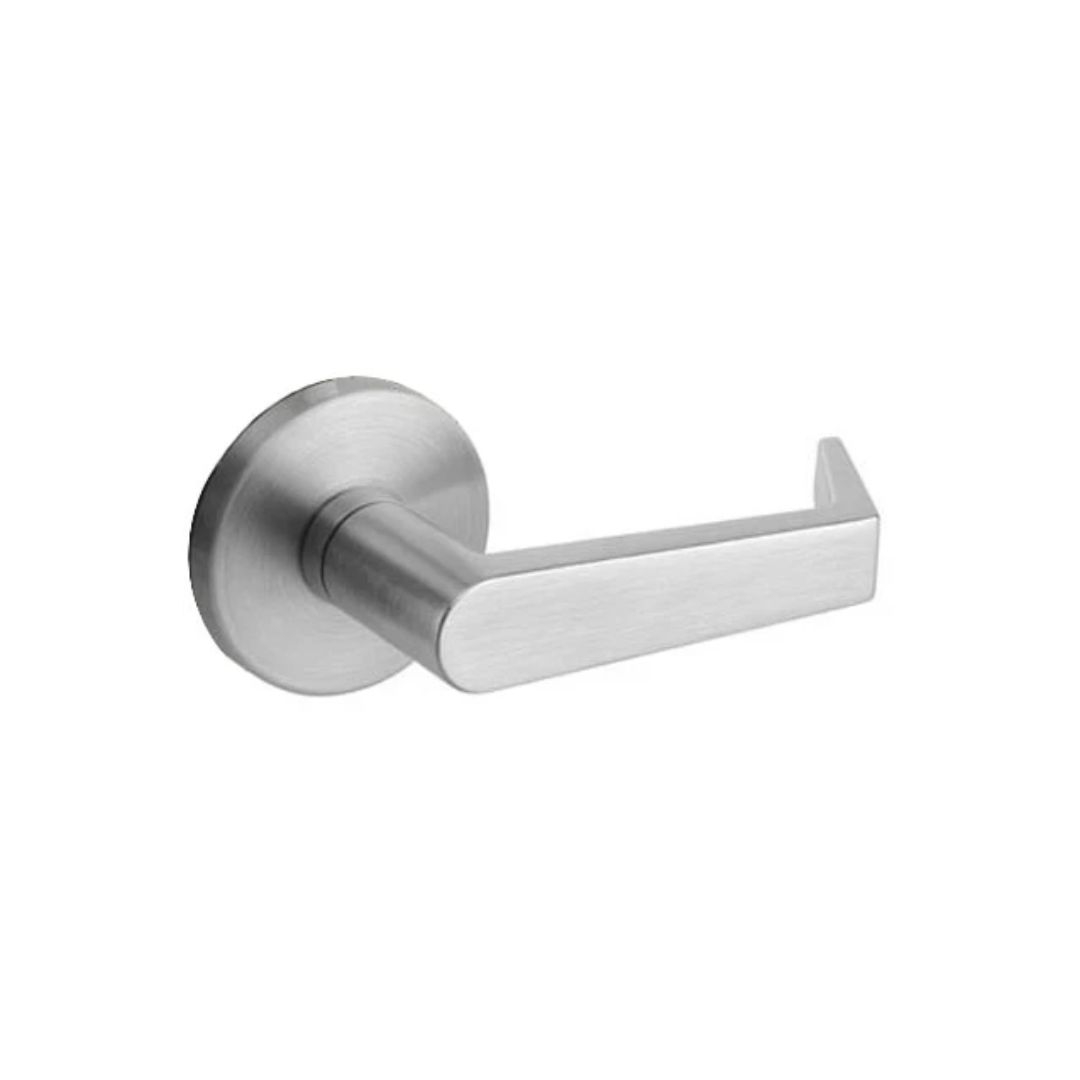

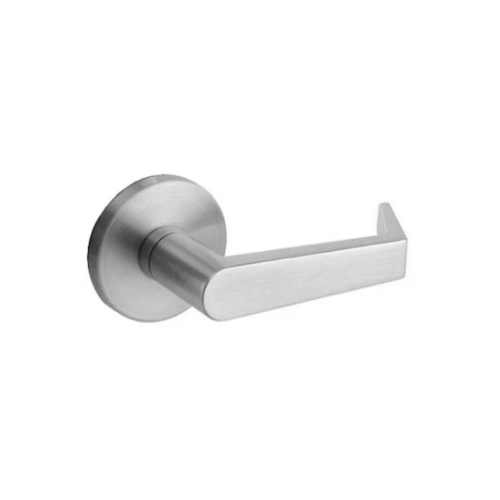

Model: 855FL ARR, AUR, CRR, JNR, MOR, PBR, PNR, VIR, ZAUR, ZCRR, ZMOR, ZPBR, ARCN, AUCN, CRCN, JNCN, MOCN, PBCN, PNCN, VICN, ZAUCN, ZCRCN, ZMOCN, ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal:Meets FF-H-106C.

UL /ULC:Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction

Model: 855FL-ARR, 855FL-AUR, 855FL-CRR, 855FL-JNR, 855FL-MOR, 855FL-PBR, 855FL-PNR, 855FL-VIR, 855FL-ZAUR, 855FL-ZCRR, 855FL-ZMOR, 855FL-ZPBR, 855FL-ARCN, 855FL-AUCN, 855FL-CRCN, 855FL-JNCN, 855FL-MOCN, 855FL-PBCN, 855FL-PNCN, 855FL-VICN, 855FL-ZAUCN, 855FL-ZCRCN, 855FL-ZMOCN, 855FL-ZPBCN.
