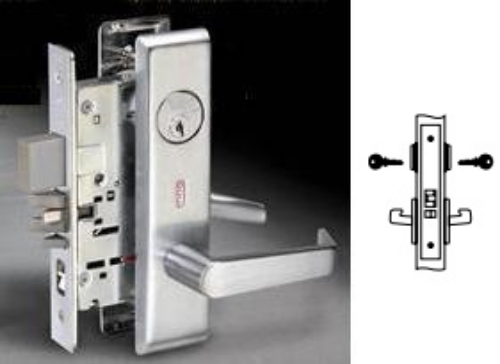

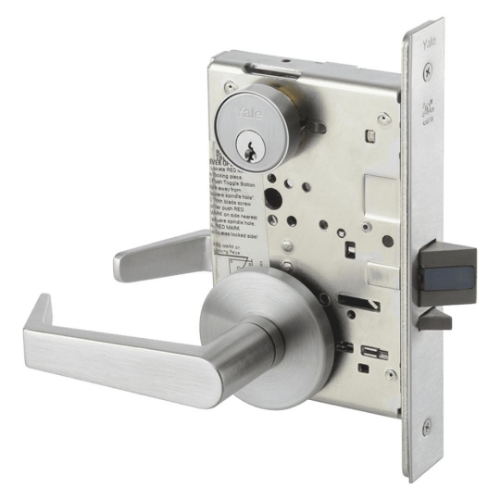

Accentra (Yale) AUR8817-2FL Mortise Apartment, Exit or Public Toilet Lever Lock, Augusta Lever

Accentra (Yale) AUR8817-2FL Mortise Apartment, Exit or Public Toilet Lever Lock, Augusta Lever

Apartment, Exit or Public Toilet - ANSI F09

Latchbolt retracted by lever either side, except when outside lever is locked by key inside. When outside lever is locked, latchbolt is operatedby key outside and lever inside. Deadlocking latchbolt.

Handing: Yale mortise locks are field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Model: Accentra 8805FL / Yale 8805FL

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: 8800 Series Mortise Lock

Function: ANSI F07- storeroom; outside lever always rigid, key always required from outside, inside lever always active

Deadbolt: 1" stainless steel throw

Latchbolt: 3/4" stainless steel, two-piece antifriction camming action, deadlocking

Cylinder: Not included- 2153 or 2553, 1-1/8" mortise cylinder with 2160 cam, order separately

Trim Formats: Sectional rose (R suffix), escutcheon (CN suffix)

Lever Options: Augusta (AUR/AUCN)

Door Thickness: 1-3/4" standard; through 3-1/4" with standard trims

ANSI/BHMA: A156.13 Series 1000, Operational Grade 1; Security Grade 1 with CN escutcheon

ADA: Compliant- all lever designs meet ANSI 117.1 and UFAS

UL/cUL: 3-hour fire doors; 20-minute wood doors

Cycle Test: 12.3 million cycles, UL Verification ID V572228

Federal: FF-H-106C

ISO: 9001

Warranty: 10-year mechanical

Model: 8817-2FL-ARR, 8817-2FL-AUR, 8817-2FL-CRR, 8817-2FL-JNR, 8817-2FL-MOR, 8817-2FL-PBR, 8817-2FL-PNR, 8817-2FL-VIR, 8817-2FL-ZAUR, 8817-2FL-ZCRR, 8817-2FL-ZMOR, 8817-2FL-ZPBR, 8817-2FL-ARCN, 8817-2FL-AUCN, 8817-2FL-CRCN, 8817-2FL-JNCN, 8817-2FL-MOCN, 8817-2FL-PBCN, 8817-2FL-PNCN, 8817-2FL-VICN, 8817-2FL-ZAUCN, 8817-2FL-ZCRCN, 8817-2FL-ZMOCN, 8817-2FL-ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction
