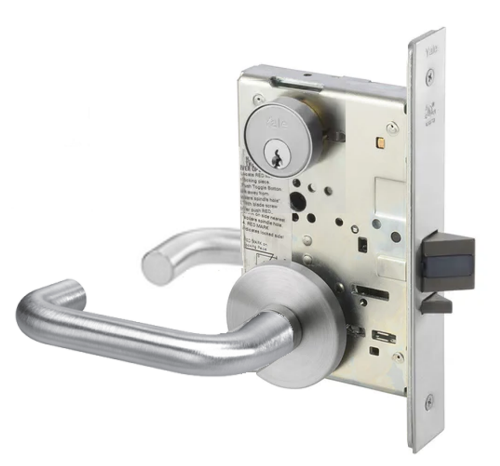

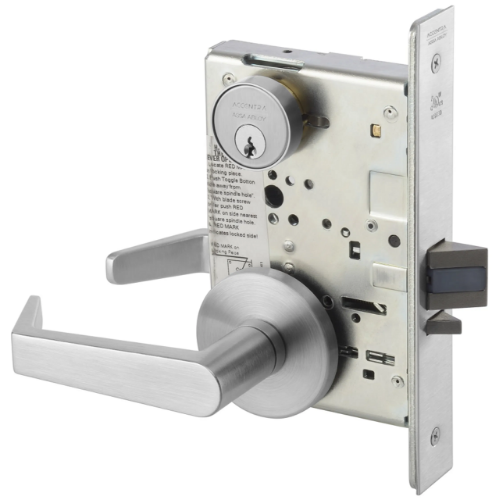

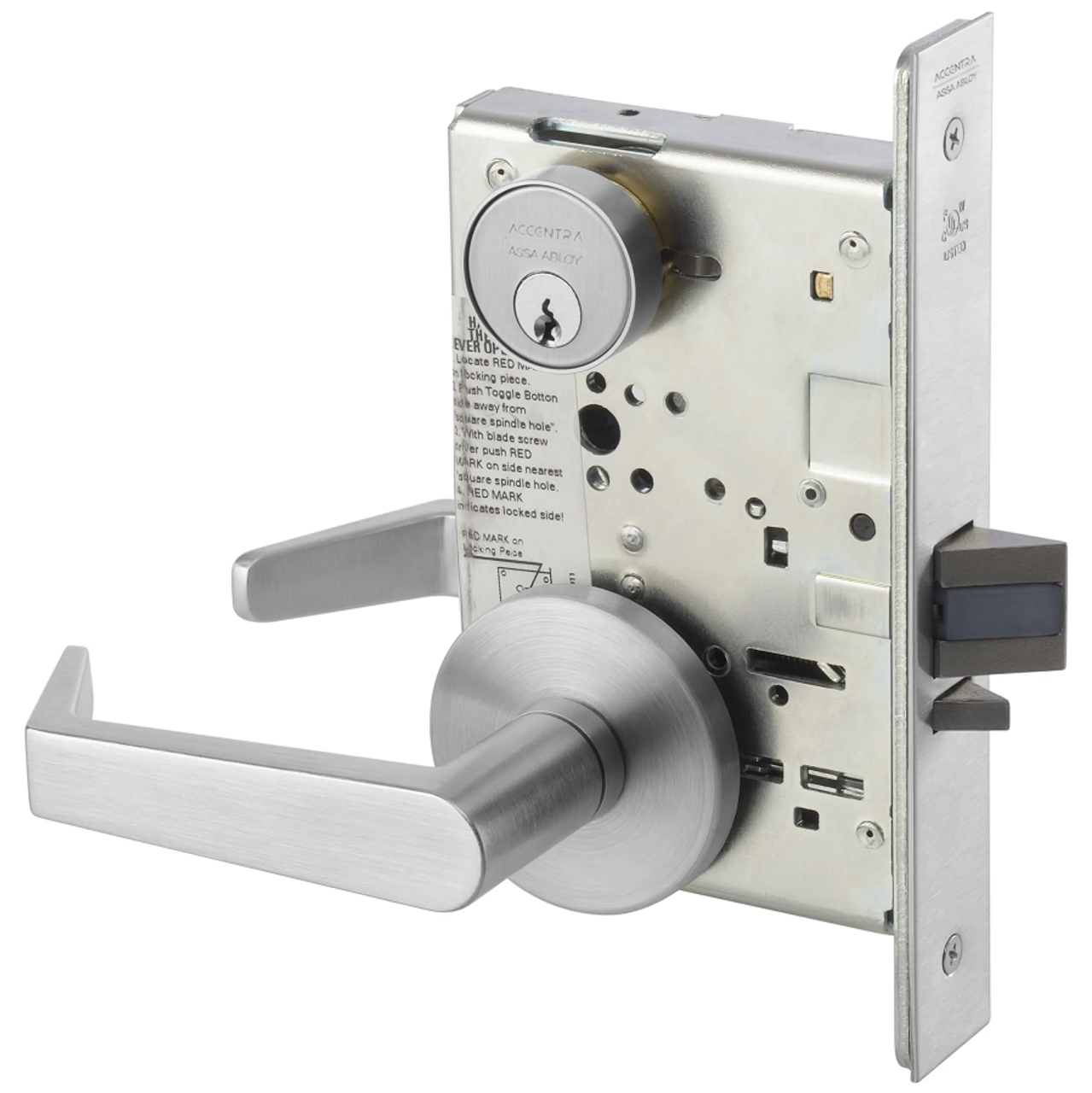

Accentra (Yale) 8891FL Electrified Mortise Lever lock - Fail Secure

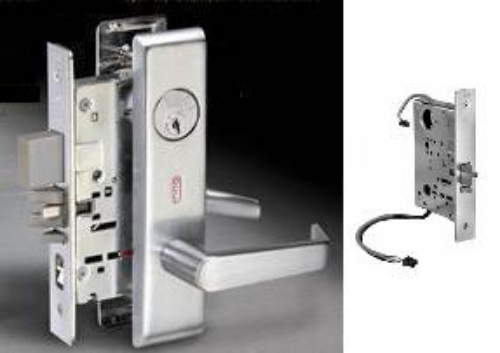

Electrified Mortise Lever lock - Fail Secure

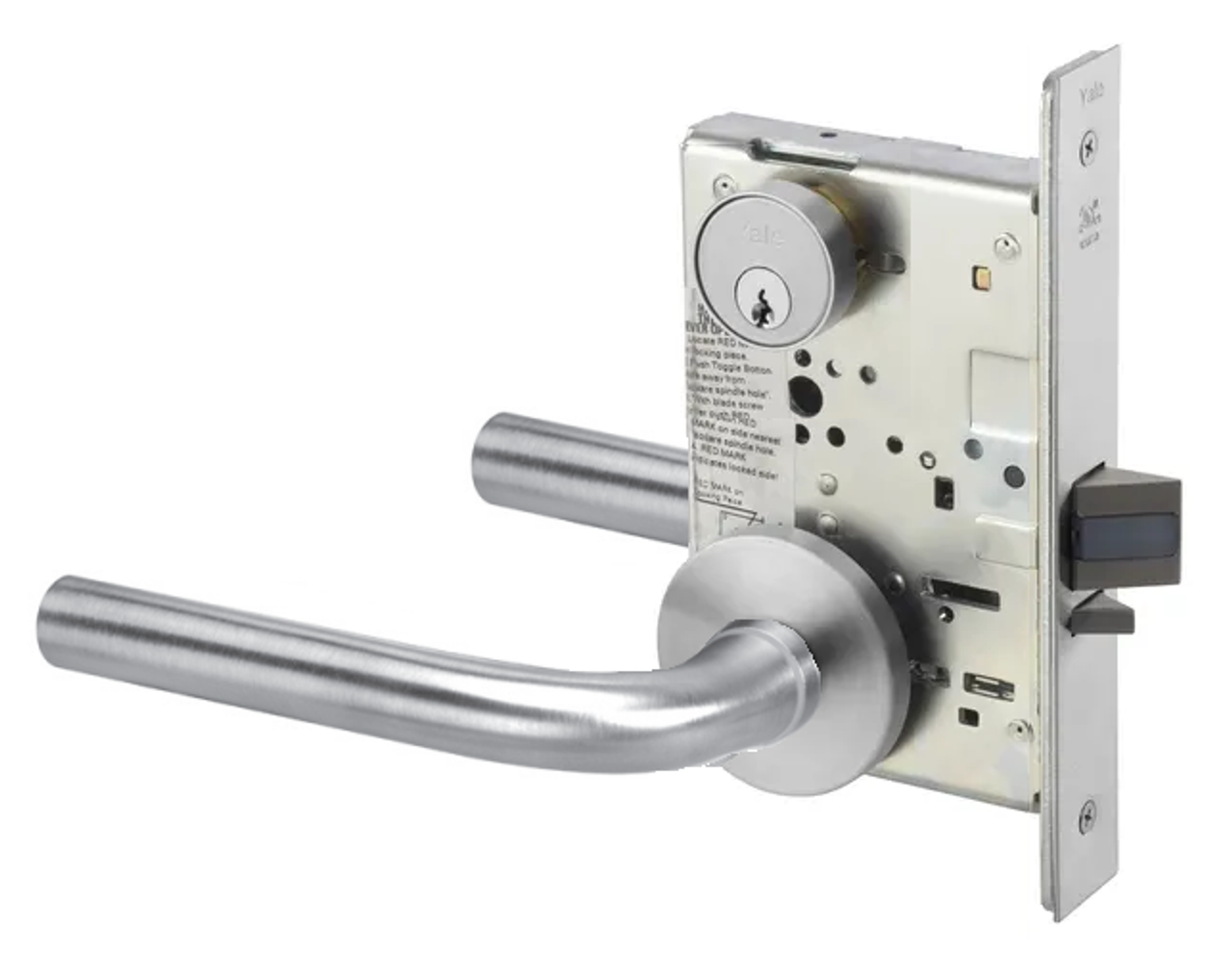

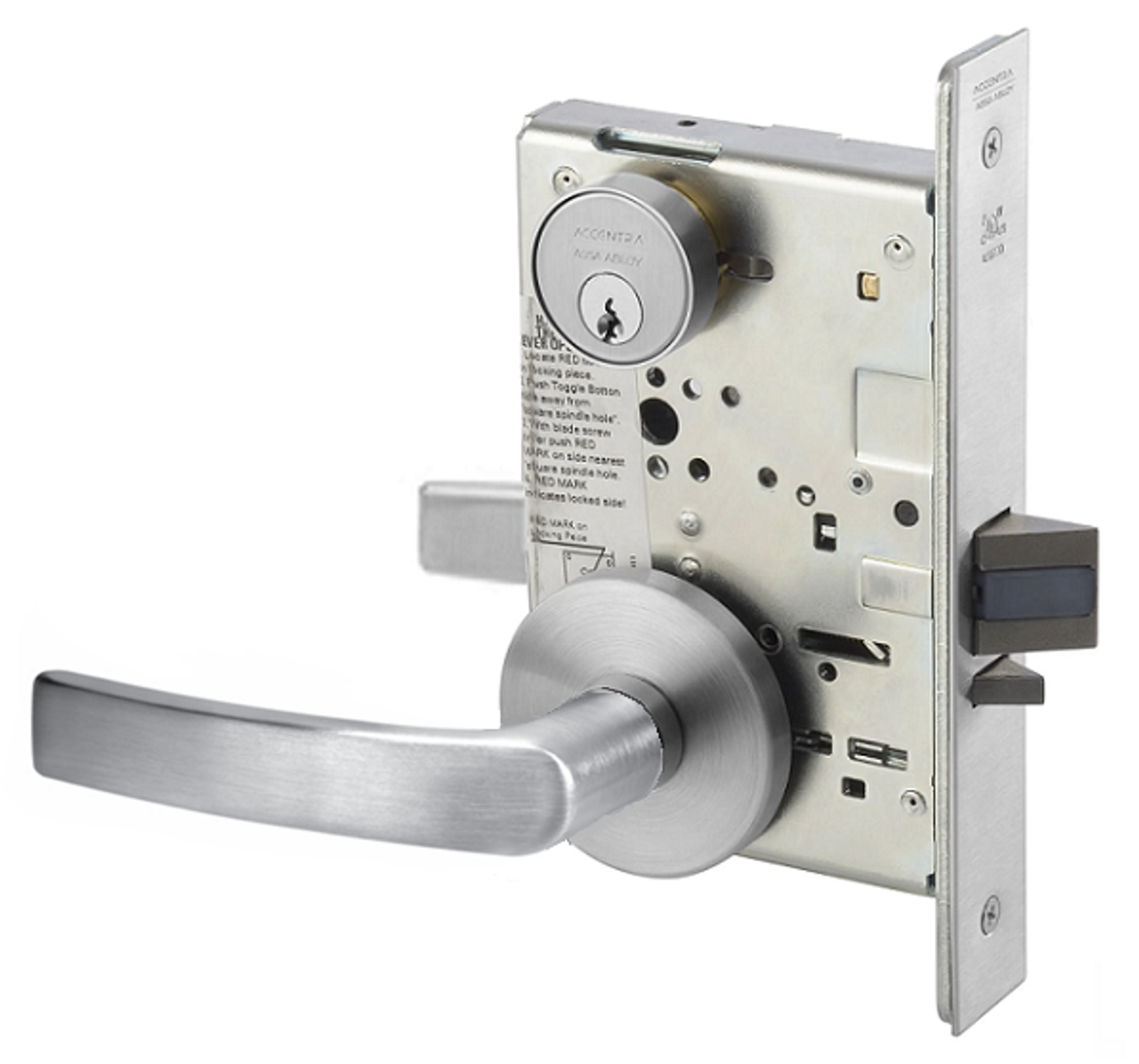

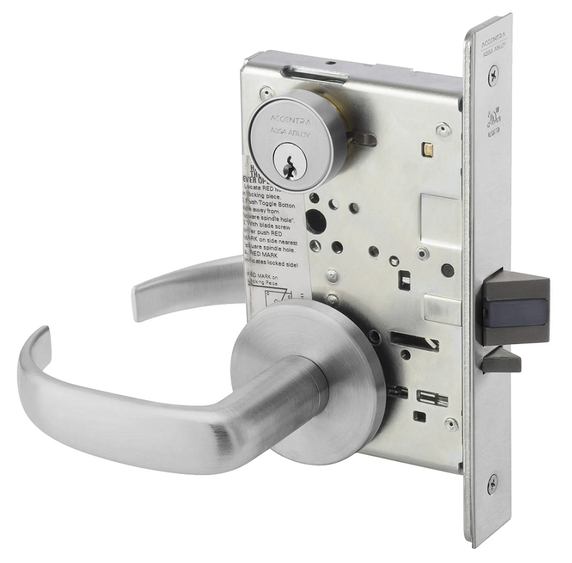

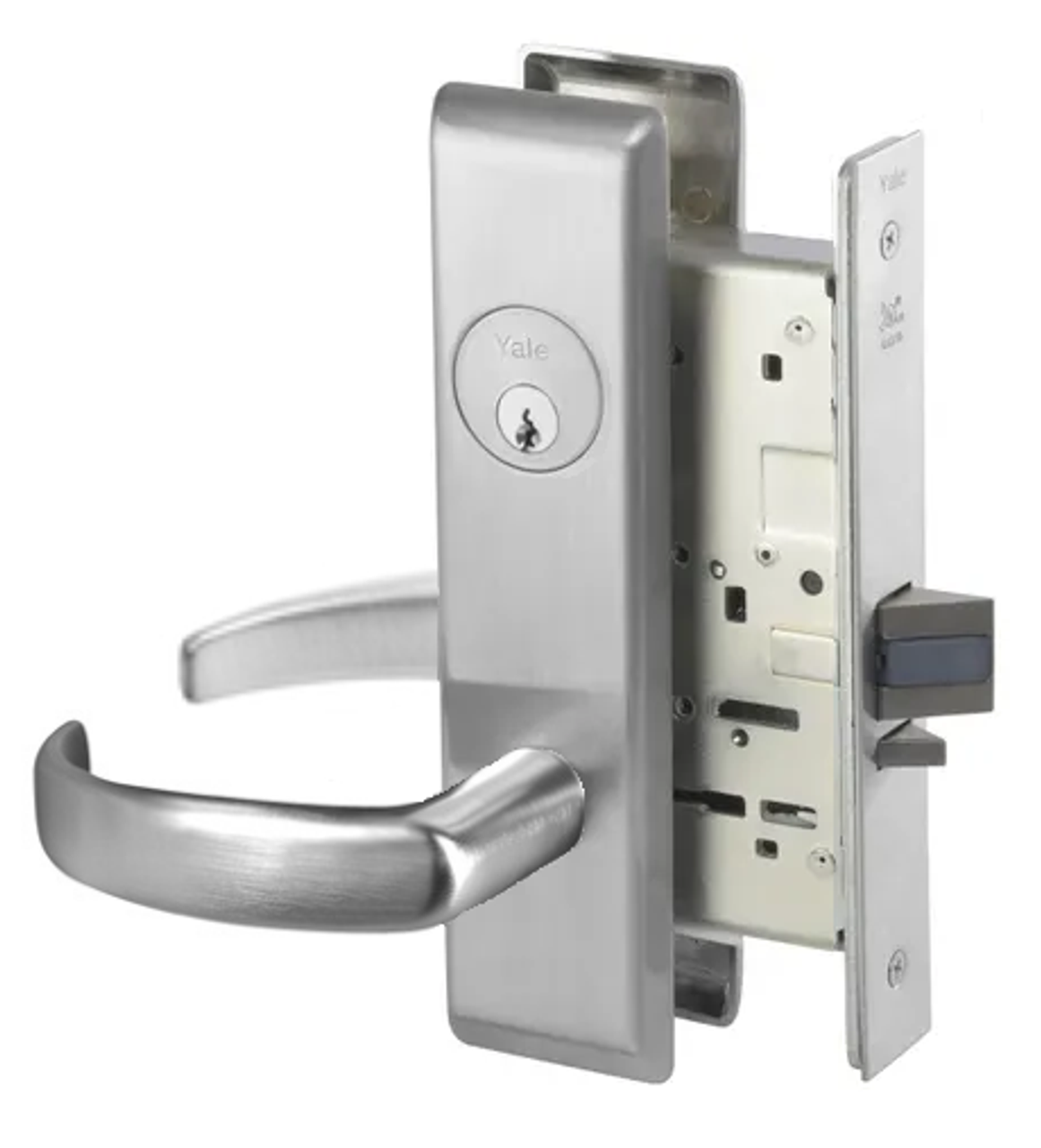

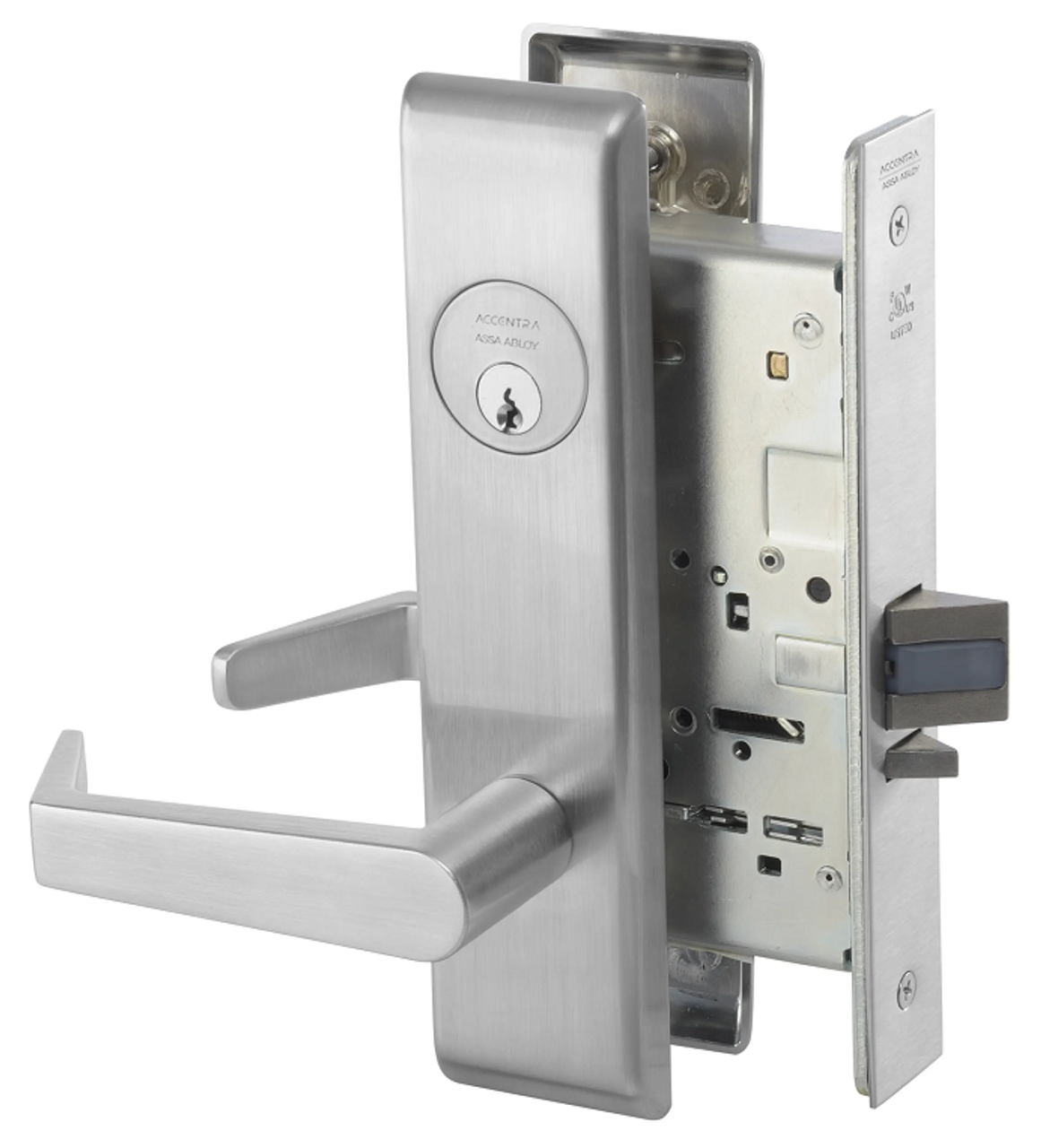

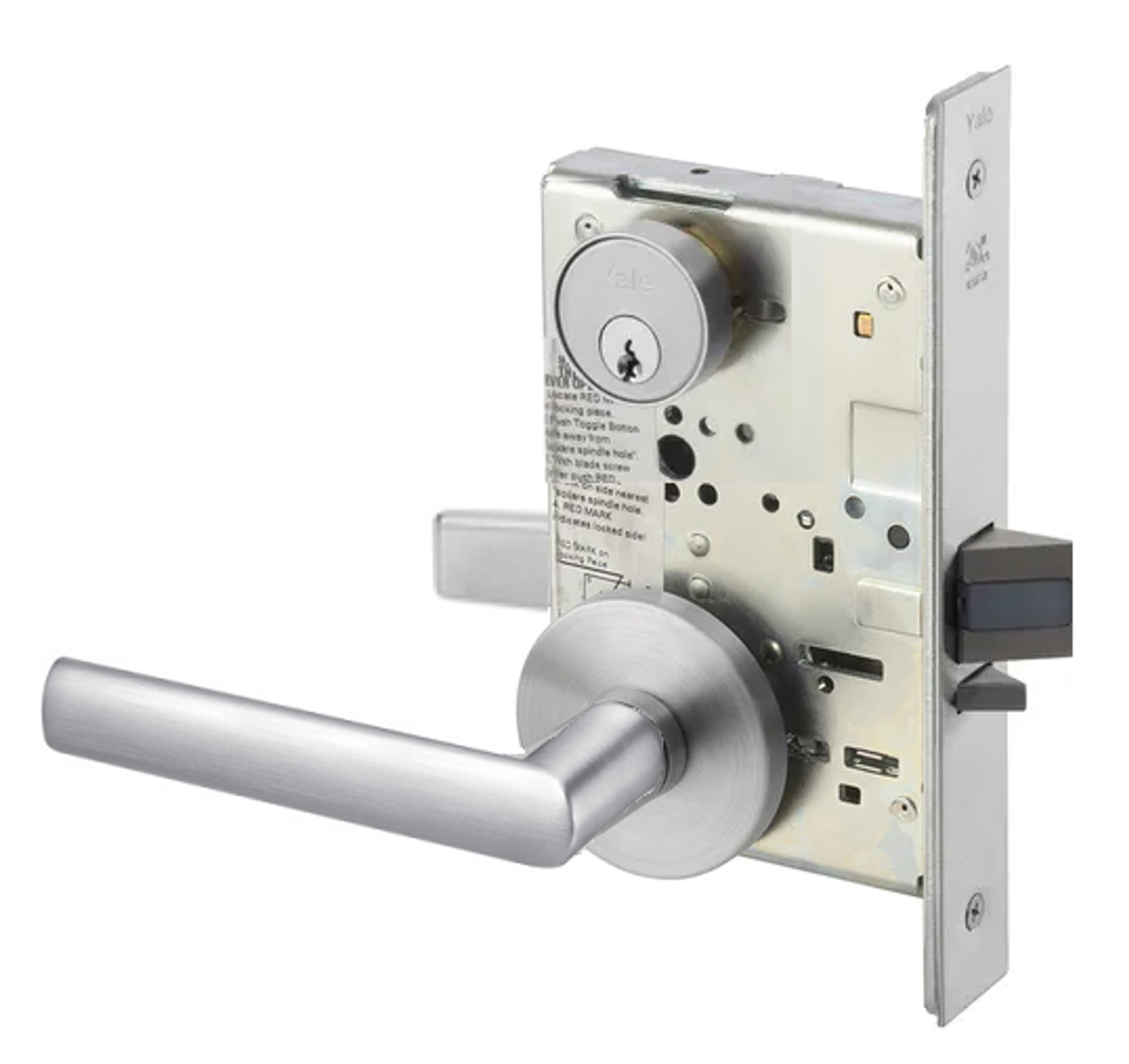

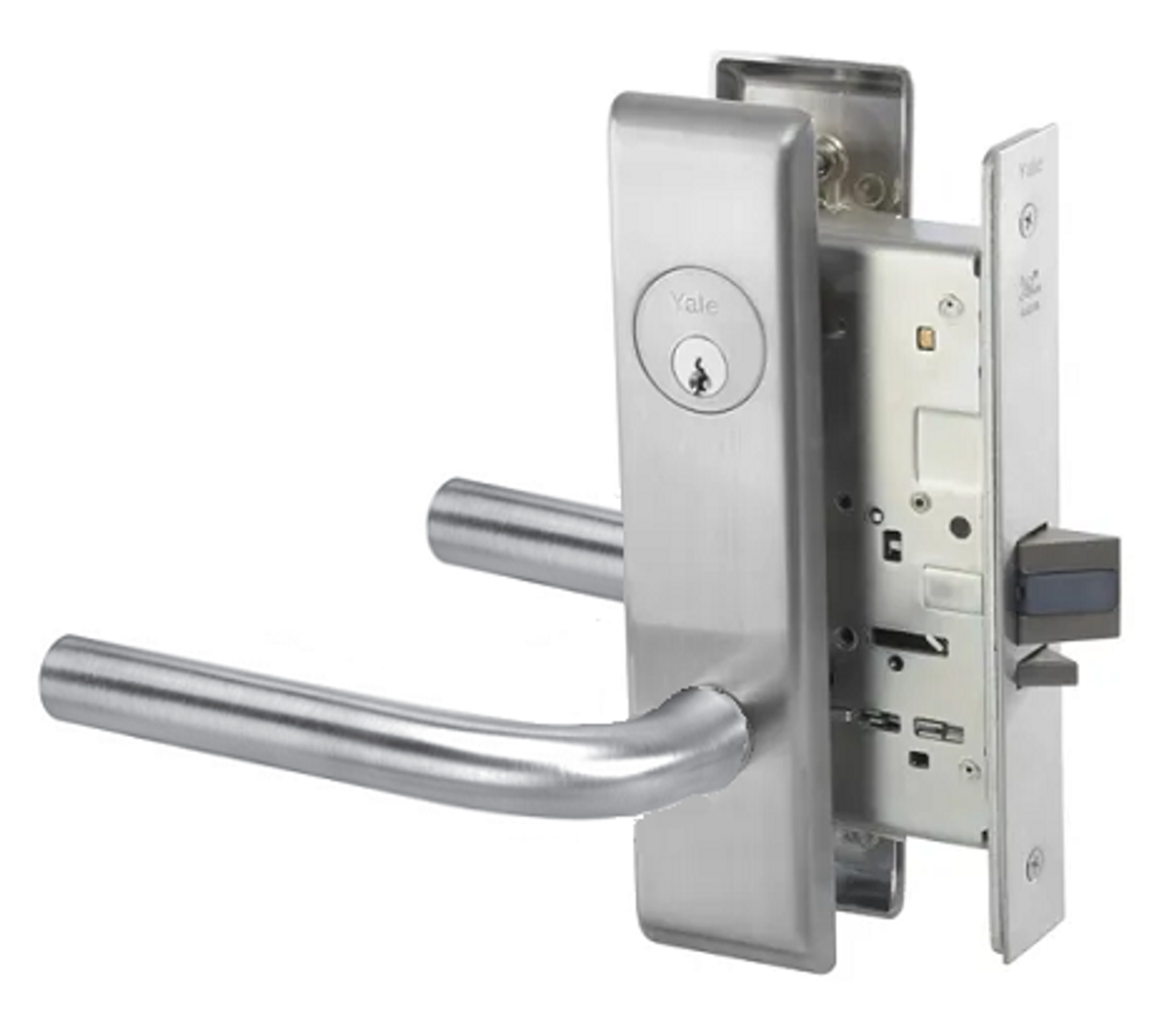

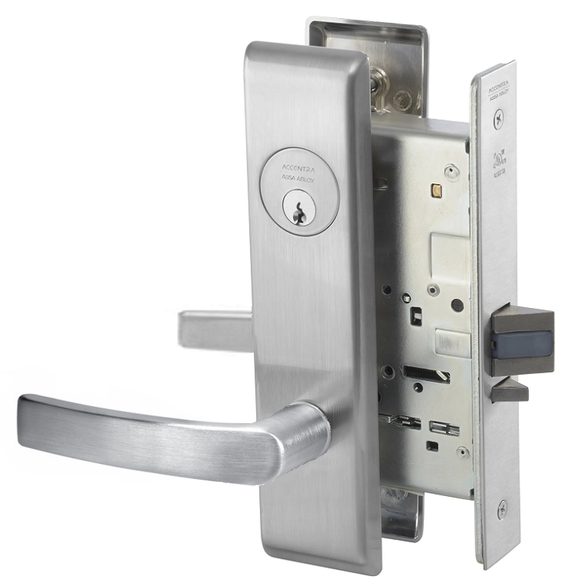

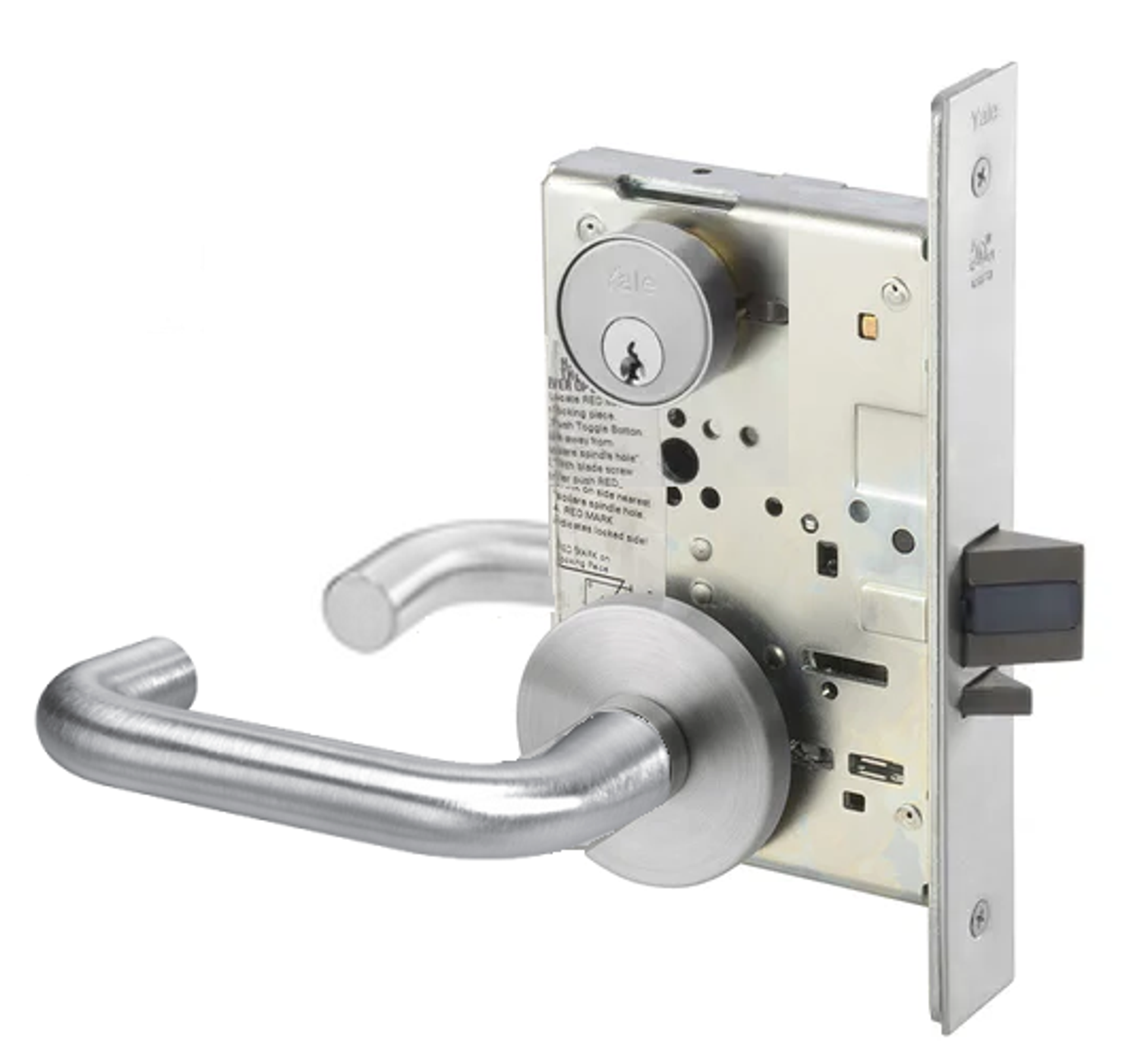

Available in the following trim styles: **

**

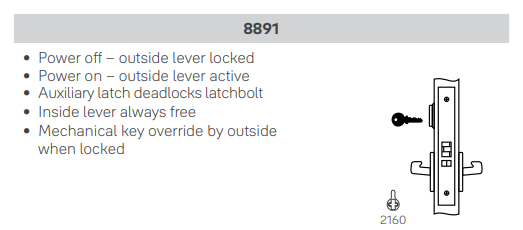

Power off outside lever lockedPower on outside lever activeAuxiliary latch deadlocks latchboltInside lever alwaysfreeMechanical key override byoutside when locked

Applications:Stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashierstations, hospital equipment rooms and pharmaceutical storage rooms.

Electrical specifications:

Fail Safe/Fail Secure612 mA @ 12 VDC330 mA @ 24 VDC

All monitoring switches rated at:

2 Amp @ 30 VDC3 Amp @ 125 VAC

Handing:

Yaleelectrifiedmortise locks are handed.are handed.

*Door Thickness: *1-3/4" (44mm) standard. * Backset: *

2-3/4" (70mm).

**Lockcase:**

*  Wrought steel, zinc dichromated, 5-1/16" (129mm) x 4-1/8" (105mm) x 1" (25mm).*

*Armor Front: *

8" (203mm) x 1-1/4" (32mm)

*Latchbolt: *

*  3/4" throw, stainless steel two-piece anti-frictioncamming action.*

*Deadbolt:*

1" throw, stainless steel with two enclosed hardenedsteelroller armor pins.

*Hubs: *

3/8" solid steel, fine-blanked and heat treated for additional strength.

*Strike:*

Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

*Cylinder: *

*  Brass, 6-pin. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)*

*Keys: *

Two nickel silver standard.

*Keying Features Available:*

Master keying, Construction master keying

Warranty:

Mechanical mortise locks (10) year warranty and Electrified mortise (2) year warranty.

Model: 8891FL ARR, AUR, CRR, JNR, MOR, PBR, PNR, VIR, ZAUR, ZCRR, ZMOR, ZPBR, ARCN, AUCN, CRCN, JNCN, MOCN, PBCN, PNCN, VICN, ZAUCN, ZCRCN, ZMOCN, ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal:Meets FF-H-106C.

UL /ULC:Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction

Model: 8891FL-ARR, 8891FL-AUR, 8891FL-CRR, 8891FL-JNR, 8891FL-MOR, 8891FL-PBR, 8891FL-PNR, 8891FL-VIR, 8891FL-ZAUR, 8891FL-ZCRR, 8891FL-ZMOR, 8891FL-ZPBR, 8891FL-ARCN, 8891FL-AUCN, 8891FL-CRCN, 8891FL-JNCN, 8891FL-MOCN, 8891FL-PBCN, 8891FL-PNCN, 8891FL-VICN, 8891FL-ZAUCN, 8891FL-ZCRCN, 8891FL-ZMOCN, 8891FL-ZPBCN.
