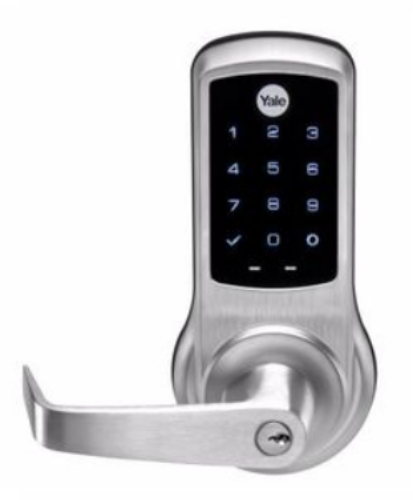

Accentra (Yale) *AU-NTB623-NR Nextouch Touchscreen Keypad Lock*
The stand-alone nexTouch boasts a wide range of robust features to make setup and daily access easy and convenient.
Voice guided programming:Advanced voice-guided programming makes setting up your nexTouch straightforward and effortless
Up to 25 users:Without any additional modules, the stand-alone nexTouch has the capacity to store up to 100 users plus a master code.
ADA:The nexTouch Series lever design meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities, all requiring ease of accessibility.
ANSI/BHMA:Certified ANSI/BHMA A156.2, Series 4000 Grade 1.
Backset:2-3/4" (70mm) standard backset,
DOOR PREPARATIONS:nexTouch uses a cylindrical lock with lever door preparation with the addition of one 1" hole. This product conforms to modified ANSI/BHMA Specifications A156.115 and A156.115-W. Respectively, these specifications involve hardware preparations for steel doors/frames and hardware preparations for wood doors with wood or steel frames.
Door thickness:Standard door thickness is 1-3/4" (44mm). For use on 1-3/8" thick doors, a special thin door kit must be used. To order 1-3/8" thin door kit, specify part number 14-4761-0106. This kit includes inside and outside escutcheon spacers as well as a 2-3/8" latchbolt
Note: Using a 2-3/8" latchbolt results in Grade 2 performance of the lock.
Fire Listings:Functions are UL/cUL Fire Listed for use on fire doors having a rating up to and including 3 hours.
Note:Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance
with all applicable codes and ratings.**
Free Wheeling Lever Trim:The nexTouch features Yale's Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
Handing:Locksets are non-handed.
Latchbolt:1/2" (13mm) throw deadlocking latchbolt supplied standard.
Power Source:Powered by 4 AA alkaline batteries with optional hardwire input
for 9VDC external power.
STRIKES:ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard.
Technology options:NR Keypad only, no radio
With Cylinder Override:For doors that require mechanical key override. - Latchbolt retracted by lever outside with valid PIN code; by use of mechanical key, or by operating lever inside. - Inside lever always active. - Deadlocking latchbolt.
Packing:Each box has a paper door marker, combination wood and machine screws, Door Position Switch (DPS), 4 AA alkaline batteries, Allen wrench, lever removal tool and easy-to-follow installation and programming instructions. Cylinder functions supplied with two keys.
Model: Accentra (Yale) AU-NTB623-NR, AU-NTB620-NR-626, AU-NTB620-NR-676, Yale AU-NTB620-NR-613E, AU-NTB620-NR-605
