Accentra (Yale) CRCN8817-2FL Mortise Apartment, Exit or Public Toilet Lever Lock, Carmel Lever

Accentra (Yale) CRCN8817-2FL Mortise Apartment, Exit or Public Toilet Lever Lock, Carmel Lever

Apartment, Exit or Public Toilet - ANSI F09

Latchbolt retracted by lever either side, except when outside lever is locked by key inside. When outside lever is locked, latchbolt is operatedby key outside and lever inside. Deadlocking latchbolt.

Handing: Yale mortise locks are field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: 8800 Series Mortise Lock

Deadbolt: 1" stainless steel throw

Latchbolt: 3/4" stainless steel, two-piece antifriction camming action, deadlocking

Cylinder: Not included- 2153 or 2553, 1-1/8" mortise cylinder with 2160 cam, order separately

Trim Formats: Sectional rose (R suffix), escutcheon (CN suffix)

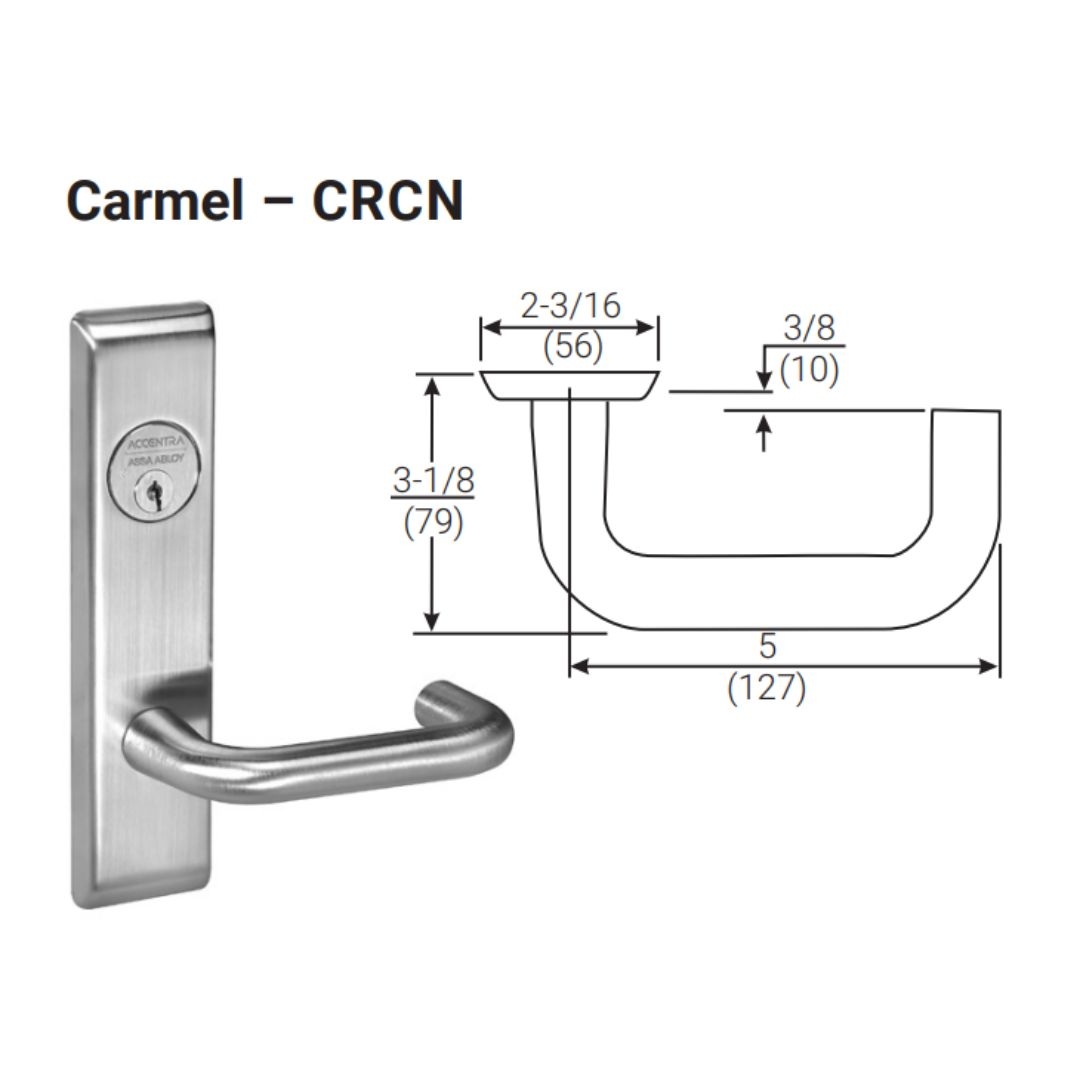

Lever Options: Carmel (CRR/CRCN)

Door Thickness: 1-3/4" standard; through 3-1/4" with standard trims

ANSI/BHMA: A156.13 Series 1000, Operational Grade 1; Security Grade 1 with CN escutcheon

ADA: Compliant- all lever designs meet ANSI 117.1 and UFAS

UL/cUL: 3-hour fire doors; 20-minute wood doors

Cycle Test: 12.3 million cycles, UL Verification ID V572228

Federal: FF-H-106C

ISO: 9001

Warranty: 10-year mechanical

Model: 8817-2FL-ARR, 8817-2FL-AUR, 8817-2FL-CRR, 8817-2FL-JNR, 8817-2FL-MOR, 8817-2FL-PBR, 8817-2FL-PNR, 8817-2FL-VIR, 8817-2FL-ZAUR, 8817-2FL-ZCRR, 8817-2FL-ZMOR, 8817-2FL-ZPBR, 8817-2FL-ARCN, 8817-2FL-AUCN, 8817-2FL-CRCN, 8817-2FL-JNCN, 8817-2FL-MOCN, 8817-2FL-PBCN, 8817-2FL-PNCN, 8817-2FL-VICN, 8817-2FL-ZAUCN, 8817-2FL-ZCRCN, 8817-2FL-ZMOCN, 8817-2FL-ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility standards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon & SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by Underwriters Laboratories Inc. for use on fire doors having a rating up to and including 3 hours and for use on 20 minute wood doors. This pertains to single swing doors not exceeding 4 feet in width and 8 feet in height and in doors mounted in pairs not exceeding 8 feet in either direction
