Adams Rite 3600-36-US32D CVR Exit Device, Fire Rated, 36", 628 Finish

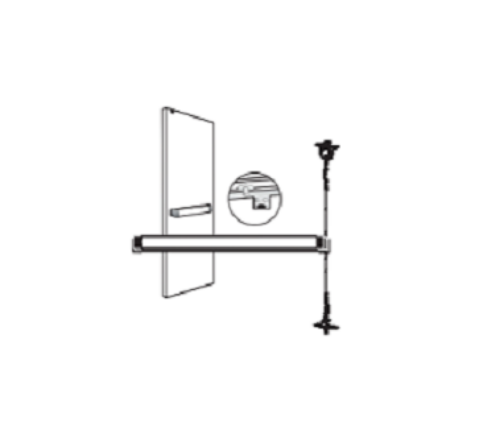

*Adams Rite 3600-36-US32D  Concealed Vertical Rod Exit Device, Fire Rated, 36", Satin Stainless Steel, fire-rated up to 3 hours *

**Features:

Materials:** Push bar made of extruded aluminum, cladded or anodized in a variety of finishes.

Push bar Length: 36" [914.4 mm], Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].

Handing:Device is non-handed.

Door Thickness:Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Door Height: Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height. For doors over 66" [1,676.4 mm] above bar height, up to 10' [3.05 m] use 3655 Tall Door Kit available separately.

Stile Width: Minimum 3-1/2" [88.9 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength.

Stile Wall: Doors with stile walls other than 1/8"[3.2 mm] require modification.

Projection:2-5/8" [66.7 mm]

fire-rated up to 3 hours.

fire-rated exit devices dosen't  have Standard dogging with hex key or with cylinder.

Fasteners: Standard self-tapping screws and machine screws. Optional Sex Bolt Kits 26-0584 (two required per device) available separately.

Cylinders(Available separately): Accepts any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm].

Cylinder x Fixed Pull Functions(Available separately): For entry trim function 03 (Night latch -key releases  latch) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. If key entry operation  is required, any standard mortise cylinder  with MS cam can be installed through an  8650 Cylinder Escutcheon. 8650 Cylinder Escutcheon Kit available separately.

Entry Trim Functions(Available separately): For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1"  [25.4mm] to 1-1/4" [31.8 mm]. Available separately.

Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. Adjustable protected steel rods. The hexagonal, hardened steel bottom bolt is shielded in a cast housing  for strength and stability.

Shipping Weight:12 lbs [5.44 kg]

Electrification Options: (MLR) Motorized Latch Retraction, Electric Latch Retraction(LR), Alarm, Monitoring. Mechanical Options:Matching End Caps.
