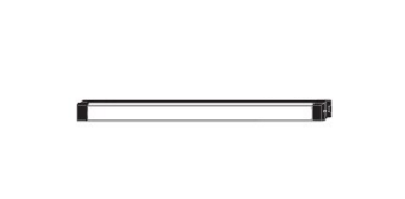

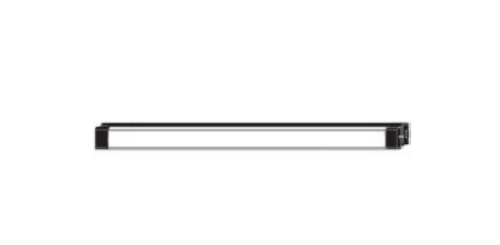

Adams Rite 3700-36-US32D Fire Rated Rim Exit Device - Satin Stainless - 36"

Adams Rite 3700-36-US32D Fire Rated Rim Exit Device - Satin Stainless - 36"

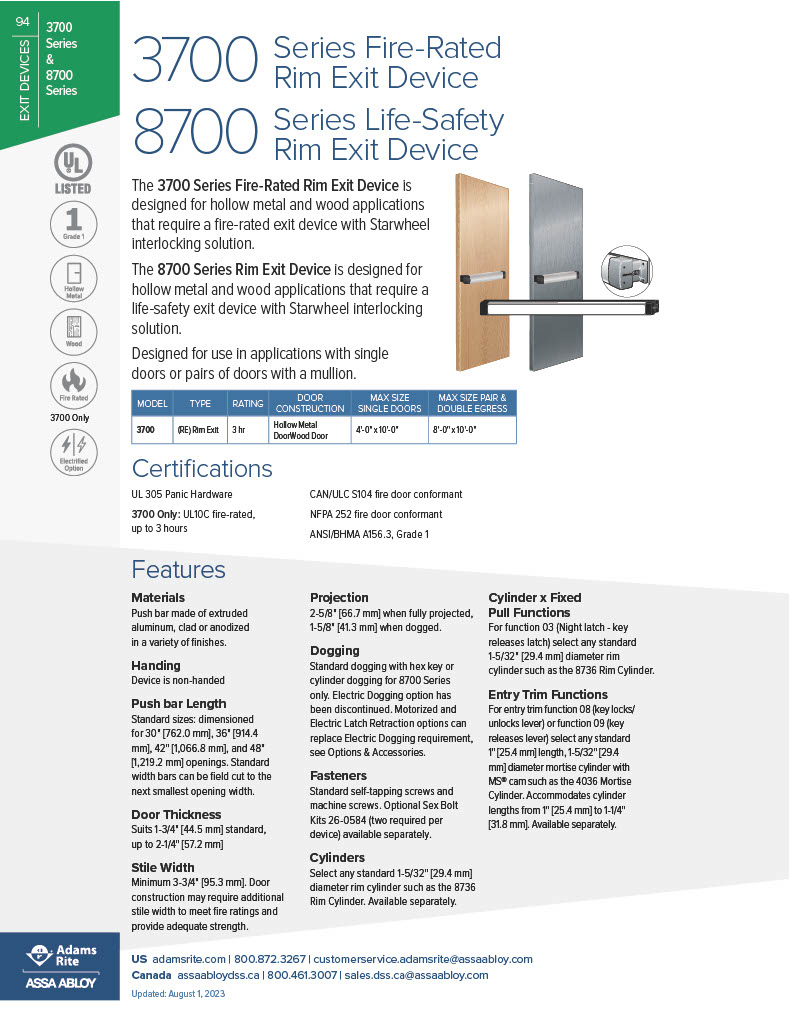

Features and description:**

fire Rating: 3 Hr

• Door Construction: Hollow metal or wood

• Max Size Single Doors: 4´0" x 8´0"

• Max Size Pairs & Double Egres: 8´0" x 8´0"

• Patented “Starwheel" bolt interlocks door to frame

• Strong, durable construction for a high level of security

• Easy to install

• Unobtrusive design for clean sight lines

• Materials: Pushbar made of extruded aluminum

• Handing: Device is non-handed. Lever Entry Trim is field reversible.

• Pushbar Length: Standard sizes: dimensioned for 36" openings. Standard width bars can be field cut to the next smallest opening width.

• Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

• Stile Width: 3700 – Minimum 3-3/4". Door construction may require additional stile width to meet fire ratings and provide adequate strength.

• Projection: 2-5/8" when fully projected

• Fasteners: Standard self-tapping screws.

• Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

• 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

• Warranty: Five year limited.

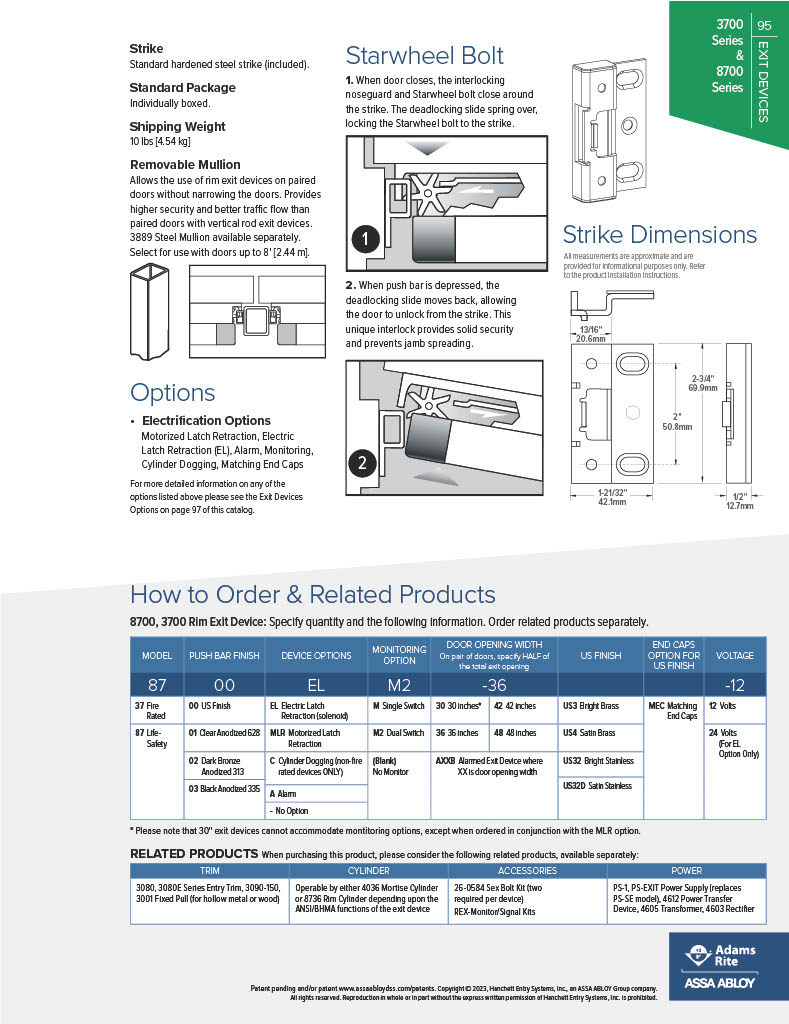

• Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

  2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

• Strike: Standard hardened steel strike (included).

Specifications:

3700 Series Certifications:

• UL Panic-Fire Exit Hardware, 3-Hour Fire Label

• UL 305 Panic Hardware

• California State Fire Marshall

• New York City MEA*

• Warnock/Hersey Listing
