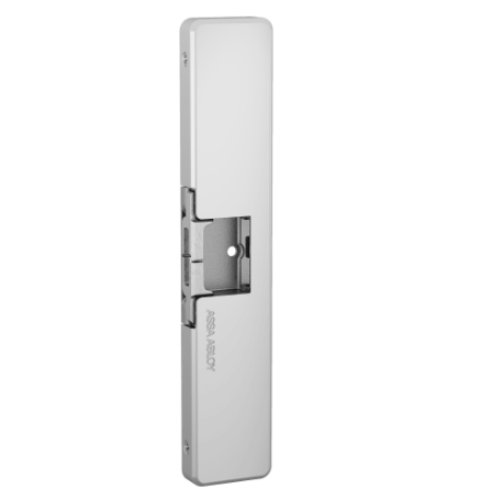

Adams Rite 7800 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted

Adams Rite 7800 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted,Grade 1, 1/2 In. Thick Strike Body, Non-Handed

*Function: * This non-handed, low-profile, surface mounted electric strike features anultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. Internally mounted dual solenoid operates on 12 or 24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

**Features:

Strike Dimensions:**1-13/4" x 9" x 9/16" deep [44.5 mm x 229 mm x 14.2 mm deep]

Strike Opening:Bolt retaining keeper is stainless steel.1" x 1-1/2" x 1/2" deep [24.4 mm x 38.1mm x 12.7 mm deep]. Strike only accepts Starwheel/Interlocking latching mechanism.

Faceplate:Not separate.1-3/4" x 9-1/64" x 9/16" [44.5 mm x 229 mm x 14.2 mm deep]

Compatibility:Accommodates Starwheel/Interlocking latching mechanism of Adams Rite 8800, 8700, EX88 Series Rim Exit Devices.

Standard Package:Individually boxed with 1/16" and 1/8"spacer plates, mounting screws and installation instructions. -Spacer Plates included to accommodate varying door gaps. -Screws for wood applications not provided

Voltage:Field selectable, dual voltage, 12 or 24 VDC.

Current Draw: 0.45A at 12 VDC 0.25A at 24 VDC

Fail Safe | Fail Secure:Field selectable fail safe/fail secure

Options & Accessories:

-Ships standard with one 1/16" and 1/8"spacer plate. Units ordered in 613E, 628E, 630, & BSP finishes will be made of stainless steel to match. All other finishes will receive black stainless steel spacers.

-Available with two monitoring options:  Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status (M). Latchbolt monitor (L).

-ELX-ElectroLynx Adapter: Connects Adams Rite electrified products to ElectroLynx system.

Certifications: ANSI/BHMA A156.31 Grade 1UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 listed RoHS compliant
