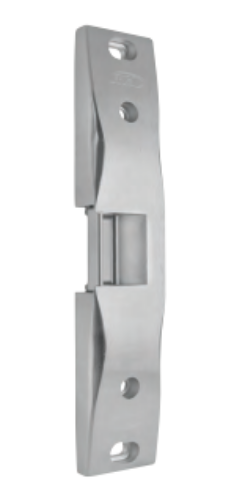

RCI 0162-32D, 3/4" Surface Mount Rim Electric Strike

RCI (Rutherford Controls) 0162-32D, 3/4" Surface Mount Rim Electric Strike - Satin Stainless Steel

Description And Features:

The 0162 is a completely surface-mounted rim strike designed for use with Pullman latch rim exit devices.

 0162 Cross Reference: Hes - 9600, Trine - 4800 1-3/4"W x 9"H x 3/4"D (45mm x 229mm x 20mm) Completely surface-mounted – no frame cutting required Accommodates 1/2" to 3/4" (13mm–19mm) latch projection Mounting spacer included to provide enhanced latch engagement Stainless steel ensures superior strength and creates a sleek aesthetic Horizontal adjustment ensure proper latch positioning to compensate for door misalignment – up to 1/4" (6.4mm) Conventional keeper design (one moving part)- promotes even load distribution Plug-in wire connectors Lockdown holes for secure mount HEX socket head cap screws for added support Installation tool included (HEX key) Non-handed (featuring horizontal solenoid design) 1/16" (1.5mm) mounting spacer for additional latch engagement included Brushed Stainless Steel (32D) finish Factory tested to over 4-million cycles of operation UL 1034 burglary-resistant Listed UL 294 Listed for Access Control Unit Accessory (6th Edition) CAN/ULC S104 & UL 10C, 3-hour fire-rating Listed2 California State Fire Marshal Listed (CSFM: 3776-2127:0101)2 Certified to ANSI/BHMA standard A156.31, Grade 1,endurance 500,000 cycles Energy: 500mA1, Field-Selectable - 12/24VDC & 12-24VAC Strength: 1,500lbf Static, 70ft-lb Dynamic Warranty: 5 Year Limited Warranty Model: Fail-Secure
