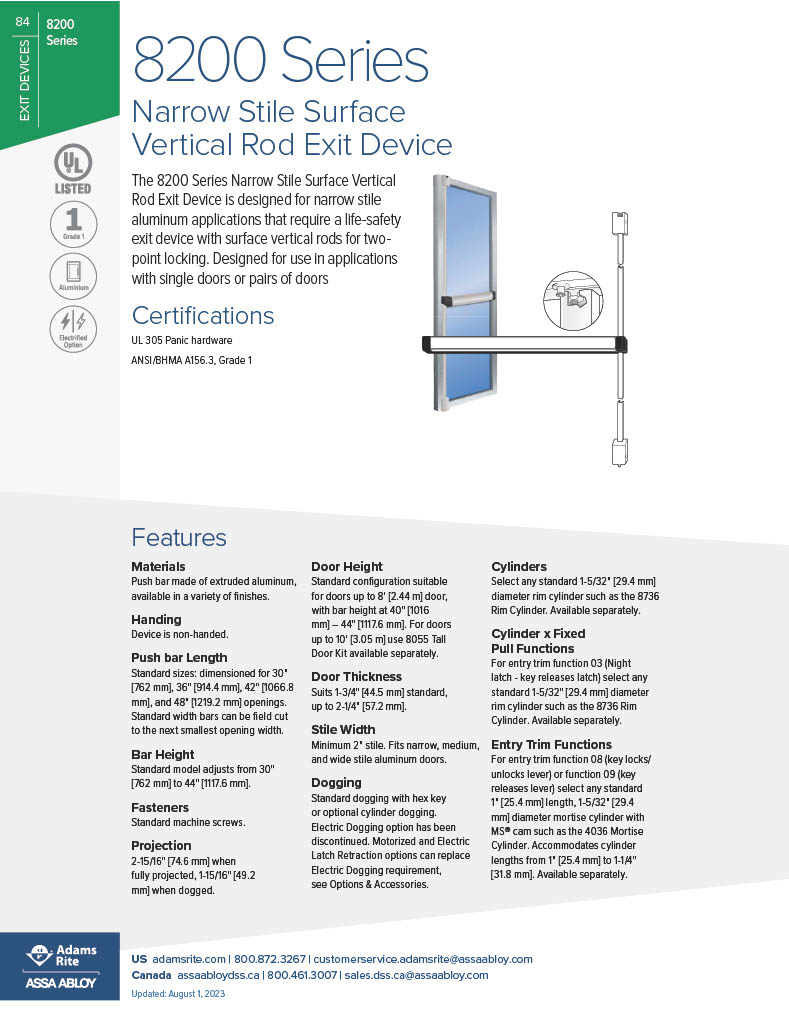

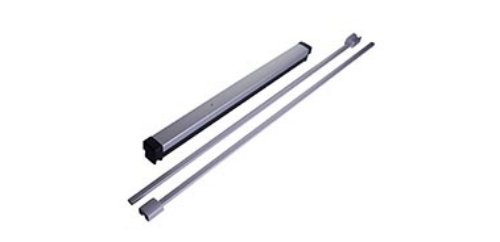

Adams Rite 8200-36-US32D Narrow Stile Surface Vertical Rod Exit Device, 36 In.

Adams Rite 8200-36-US32D Narrow Stile Surface Vertical Rod Exit Device, For Aluminum Applications, 36 In. Satin Stainless Steel

Certifications:UL 305 Panic hardware

Features:

Designed for use in applications with single doors or pairs of doors.

Materials:Push bar made of extruded aluminum, available in a variety of finishes.

Handing:Device is non-handed.

Push bar Length:Standard sizes: dimensioned for 30" [762mm], 36" [914.4 mm], 42" [1066.8 mm], and 48" [1219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height:Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].

Fasteners:Standard machine screws.

Projection:2-15/16" [74.6 mm] when fully projected,1-15/16" [49.2 mm] when dogged.

Door Height:Standard configuration suitable for doors up to 8' [2.44 m] door, with bar height at 40" [1016mm] 44" [1117.6 mm]. For doors up to 10' [3.05m] use 8055 Tall Door Kitavailable separately.

Door Thickness:Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width:Minimum 2" stile. Fits narrow, medium,and wide stile aluminum doors.

Dogging:Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.

Cylinders:Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.Available separately.

Cylinder x Fixed Pull Functions:For entry trim function 03 (Night latch - key releases latch) select any standard 1-5/32"[29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.Available separately.

Entry Trim Functions:For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm].Available separately.

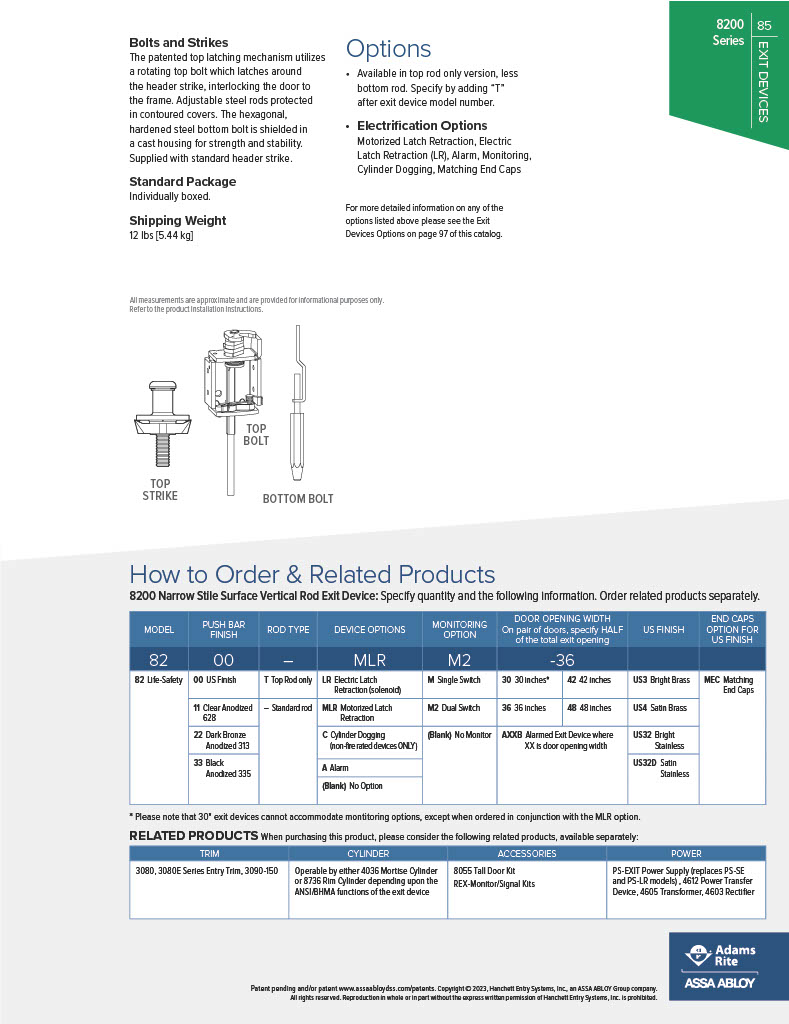

Bolts and Strikes:The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame. Adjustable steel rods protected in contoured covers. The hexagonal, hardened steel bottom bolt is shielded ina cast housing for strength and stability. Supplied with standard header strike.

Standard Package:Individually boxed.

Shipping Weight:12 lbs [5.44 kg]

Options: Also available in top rod only version, less bottom rod. Specify by adding T after exit device model number. Electrification Options: (MLR) Motorized Latch Retraction, Electric Latch Retraction (LR), Alarm, Monitoring Mechanical Options: Cylinder Dogging, Matching End Caps

Related Products:When purchasing this product, please consider the following related products, available separately: Accessories:  8055 Tall Door Kit, REX-Monitor/Signal Kits Cylinders:  Operable by either 4036 Mortise Cylinder or 8736 Rim Cylinder depending upon theANSI/BHMA functions of the exit device. Trim:  3080, 3080E Series Entry Trim, 3090-150, 3090P/3090C, A100 Series Keyless Entry Power: PS-SE, PS-LR, PS-EXIT Power Supply, 4612 Power Transfer Device, 4605 Transformer, 4603 Rectifier
