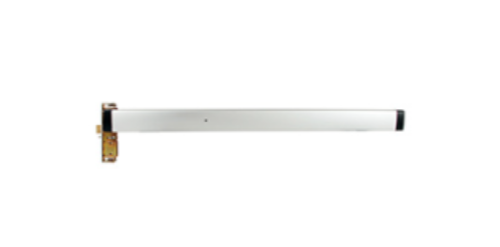

Adams Rite 8312 Mortise Exit Device - Clear Anodized, Bevel Faceplate

Adams Rite 8312 Mortise Exit Device - Clear Anodized, Bevel Faceplate

Specifications:

Stile Width: Minimum 5".

Certifications: UL 305 Panic Hardware, ANSI/BHMA A156.3 Grade 1, California State Fire Marshall, New York City MEA

Handing: Specify handing and bevel if applicable.

Pushbar Length: Standard sizes: dimensioned for 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" standard. Can be modified for thicker doors.

Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS® cam (not included)

For Mortise CylindersClick Here.

Projection: 2-5/8" when fully projected.

Fasteners: Standard self-tapping screws.

Faceplate: Bevel Face Shape, Clear Anodized**Finish

Strikes: Made of stainless steel. Supplied with exit device.

Warranty: Five year limited..

Features:

   Heavy duty deadlatching mechanism   Strong, durable construction for a high level of security   Easy to install   Clean, unobtrusive designModel: 8312-7142, 8312-8142, 8312-7136, 8312-8136, 8312-7148, 8312-8148
