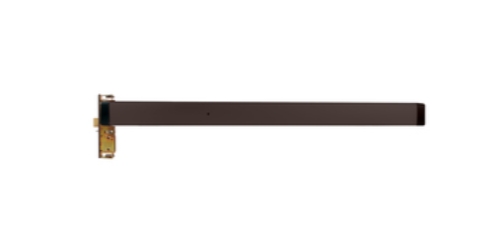

Adams Rite 8420LR Narrow Stile Mortise Exit Device - Electric Latch Retraction - Dark Bronze Anodized Faceplate

Adams Rite 8420LR Narrow Stile Mortise Exit Device - *Electric Latch Retraction - Dark Bronze Anodized Faceplate*

Specifications:

Electric Latch Retraction: The LR option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. LR option is not available on rim type exit devices

Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

8400 Series Certifications: UL 305 Panic Hardware, ANSI/BHMA A156.3 Grade 1, California State Fire Marshall,New York City MEA

Handing: Specify handing and bevel if applicable.

Pushbar Length: Standard sizes: dimensioned for 30", 36" and 42" openings. Standard width bars can be field cut to the next smallest opening width.

Backset: 1-1/8"  Backset

Face Shape:  Flat, Radius, Beve

Door Thickness: Suits 1-3/4" standard. Can be modified for thicker doors.

Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS® cam (not included).

For Mortise CylindersClick Here.

Fasteners: Standard self-tapping screws.

Warranty: Five year limited.

Strike: Standard strike included.

Features:

 Heavy duty deadlatching mechanism Strong, durable construction for a high level of security Easy to install Clean, unobtrusive design Fits standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doorsModel: 8420LR-37130, 8420LR-38130, 8420LR-37136, 8420LR-38136, 8420LR-38142
