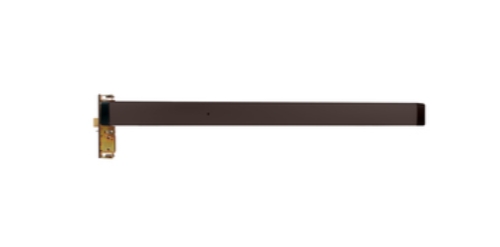

Adams Rite 8420SE Narrow Stile Mortise Exit Device - Silent Electrification Latch Retraction - Dark Bronze Anodized Faceplate

Adams Rite 8420SE Narrow Stile Mortise Exit Device -*Silent Electrification Latch Retraction* - Dark Bronze Anodized Faceplate

Silent Electrification Motorized Latch Retraction: The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.

The high speed/low current draw motor (0.4 Amps inrush current, 0.2 Amps hold current) offers a powerful yet efficient system that allows for lighter gauge wiring and an energy-saving reduced amperage powersupply.

The device also features electric latch retraction with electric dogging which minimizes hardware projection and noise.

The SE option is available with 3000/8000 Series Exit Devices and the RITE Door®.

Features And Description:

Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

8400 Series Certifications: UL 305 Panic Hardware, ANSI/BHMA A156.3 Grade 1, California State Fire Marshall,New York City MEA

Handing: Specify handing and bevel if applicable.

Pushbar Length: Standard sizes: dimensioned for 36" and 42" openings. Standard width bars can be field cut to the next smallest opening width.

Backset: Backsets available in  1-1/8", and 31/32"

Face Shape:  Flat, Radius, Beve

Door Thickness: Suits 1-3/4" standard. Can be modified for thicker doors.

Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS® cam (not included).

For Mortise CylindersClick Here

Fasteners: Standard self-tapping screws.

Warranty: Five year limited.

Strike: Standard strike included.

Features:

• Heavy duty deadlatching mechanism

• Strong, durable construction for a high level of security

• Easy to install

• Clean, unobtrusive design

• Fits standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doors

Model:8420SE-37136, 8420SE-27136, 8420SE-38136, 8420SE-28136, 8420SE-37142, 8420SE-28142
