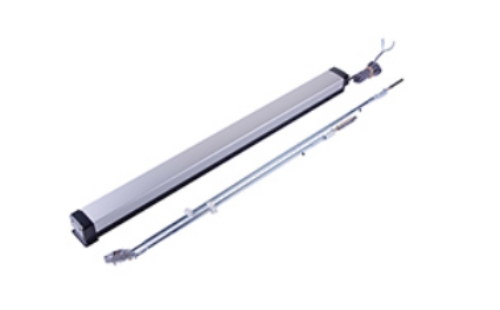

Adams Rite 8611 Narrow Stile Concealed Vertical Rod Exit Device - Clear Anodized

Adams Rite 8611 Narrow Stile Concealed Vertical Rod Exit Device - Clear Anodized

Description:

Handing: Device is non-handed. Lever Entry Trim is field reversible.

Pushbar Length:  Standard sizes: dimensioned for 30", 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30" to 44".

Door Height:Standard unit adjustable for doors up to 66" above the selected bar height. For doors over 66" above bar height, up to 10 ft use 8655 Tall Door Kit.

Door Thickness: Suits 1-3/4" standard, up to 2-1/4". Device requires modification when used with cylinder in doors over 1-3/4".

Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

Stile Wall: Doors with stile walls other than 1/8" require modification.

Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

Dogging: Standard dogging with hex key or cylinder dogging option.

Fasteners: Standard self-tapping screws.

Cylinder x Fixed Pull (Function 03): Accepts any standard mortise cylinder with MS® cam.

For Mortise CylindersClick Here.

Warranty: Five year limited.

Features:

 Patented top latching mechanism interlocks door to frame Strong, durable construction for a high level of security Adjustable steel rods protected in contoured covers Easy to install Clean, unobtrusive designSpecifications:

8600 Series Certifications:

 UL 305 Panic Hardware California State Fire Marshall ANSI/BHMA A156.3 Grade 1 New York City MEA
