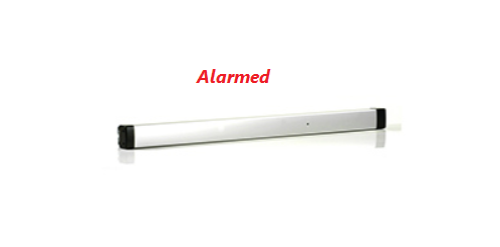

Adams Rite 8701A-48B Alarmed Rim Exit Device - Clear Anodized - 48"

Adams Rite 8701A-48B Alarmed*Rim Exit Device - Clear Anodized (628) - *48"

Alarmed Exit Device:This battery-operated option emits a loud (95 decibel) alarm tob notify management of unauthorized exit. Alarm is controlled by a key in any standard Mortise cylinder with MS® cam to arm, disarm, delay, or reset the alarm.

Will not alter the Life-Safety characteristics of the exit device in any way.

Red letters printed on the bar give a “hands off" warning to deter accidental activation.

Four AA alkaline batteries power twin horns for two minutes (or until disarmed) when pushbar is depressed. Beeps to signal need for new batteries.

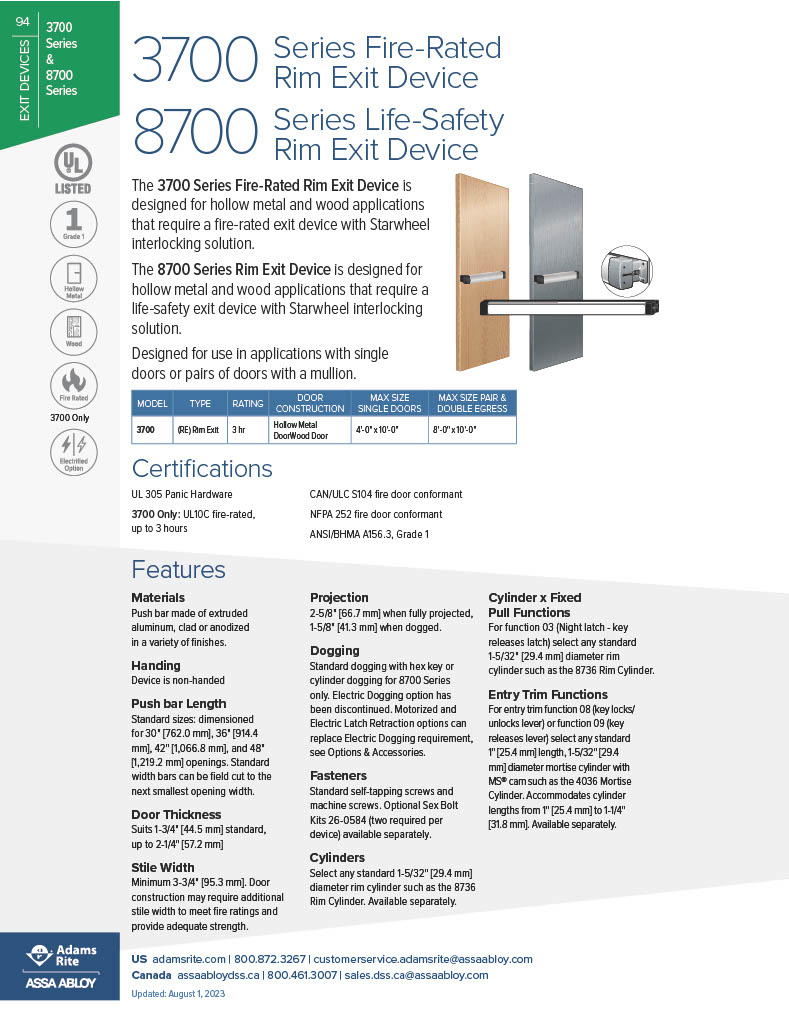

Features and description:

• Patented “Starwheel" bolt interlocks door to frame

• Strong, durable construction for a high level of security

• Easy to install

• Unobtrusive design for clean sight lines

• Materials: Pushbar made of extruded aluminum

• Handing: Device is non-handed. Lever Entry Trim is field reversible.

• Pushbar Length: dimensioned for 48" openings. Standard width bars can be field cut to the next smallest opening width.

• Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

• Stile Width: 8700 – Minimum 3-3/4".

• Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

• Dogging: Standard dogging with hex key or cylinder dogging for 8700 Series only.

• Fasteners: Standard self-tapping screws.

• Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

• 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

• Warranty: Five year limited.

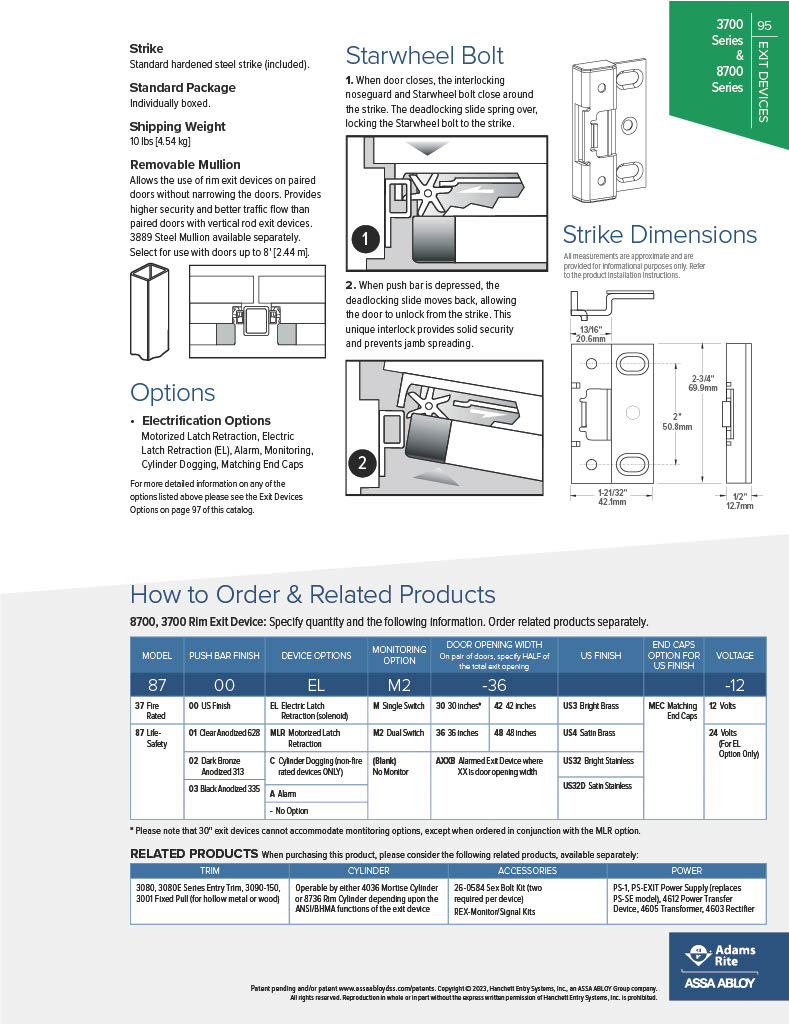

• Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

  2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

• Strike: Standard hardened steel strike (included).

Specifications:

8700 Series Certifications:

• UL 305 Panic Hardware

• ANSI/BHMA A156.3 Grade 1

• California State Fire Marshall

• New York City MEA*
