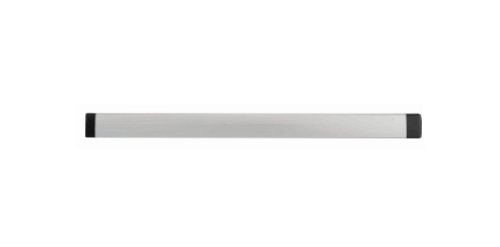

Adams Rite 8800-36-US32D Narrow Stile Rim Exit Device - Satin Stainless Steel - 36"

Adams Rite 8800-36-US32D Narrow Stile Rim Exit Device - Satin Stainless Steel - 36"

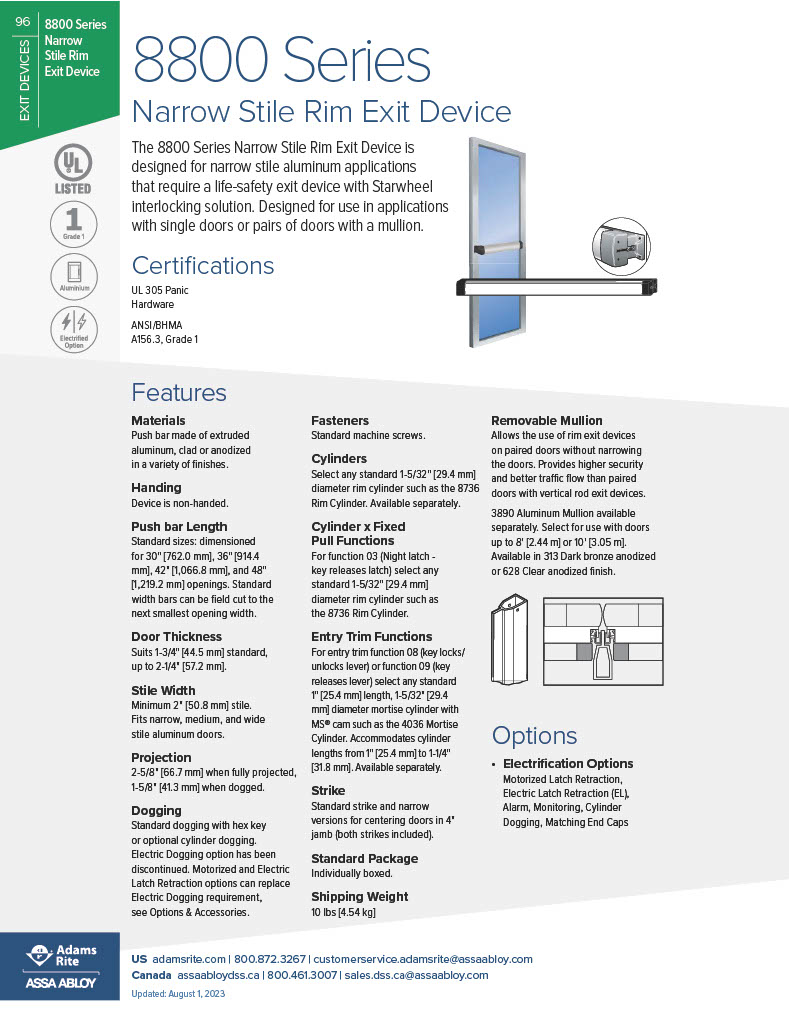

Features and description:**

• Patented “Starwheel" bolt interlocks door to frame

• Strong, durable construction for a high level of security

• Easy to install

• Unobtrusive design for clean sight lines

• Materials: Pushbar made of extruded aluminum

• Handing: Device is non-handed. Lever Entry Trim is field reversible.

• Pushbar Length: dimensioned for 36" openings. Standard width bars can be field cut to the next smallest opening width.

• Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

• Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

• Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

• Dogging: Standard dogging with hex key.

• Fasteners: Standard self-tapping screws.

• Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

• 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

• Warranty: Five year limited.

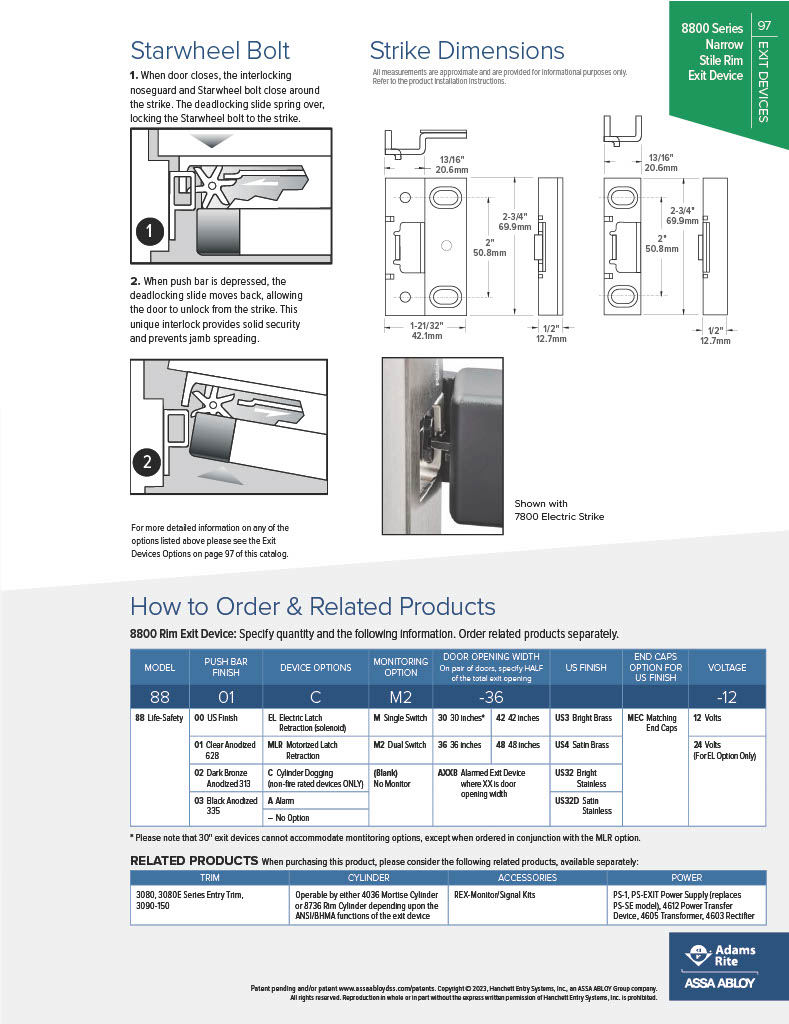

• Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

  2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

• Strike: Made of hardened steel. Standard strike and narrow versions for centering doors in 4" jamb. (Both strikes are included)

Specifications:

• UL 305 Panic Hardware

• ANSI/BHMA A156.3 Grade 1

• California State Fire Marshall

• New York City MEA*
