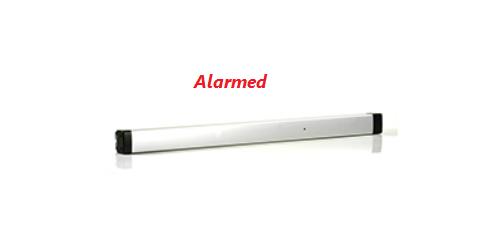

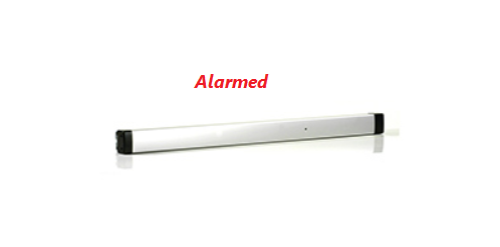

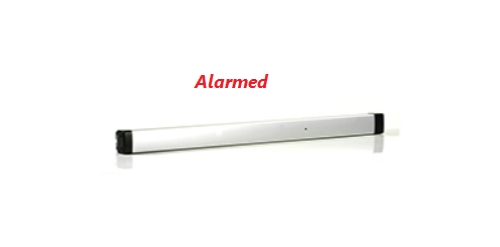

Adams Rite 8801AxxB Narrow Stile Alarmed Rim Exit Device - Clear Anodized

Adams Rite 8801AxxB Narrow Stile Alarmed Rim*Exit Device*- Clear Anodized (628)

Alarmed Exit Device:This battery-operated option emits a loud (95 decibel) alarm tob notify management of unauthorized exit. Alarm is controlled by a key in any standard Mortise cylinder with MS® cam to arm, disarm, delay, or reset the alarm.

Will not alter the Life-Safety characteristics of the exit device in any way.

Red letters printed on the bar give a “hands off" warning to deter accidental activation.

Four AA alkaline batteries power twin horns for two minutes (or until disarmed) when pushbar is depressed. Beeps to signal need for new batteries.

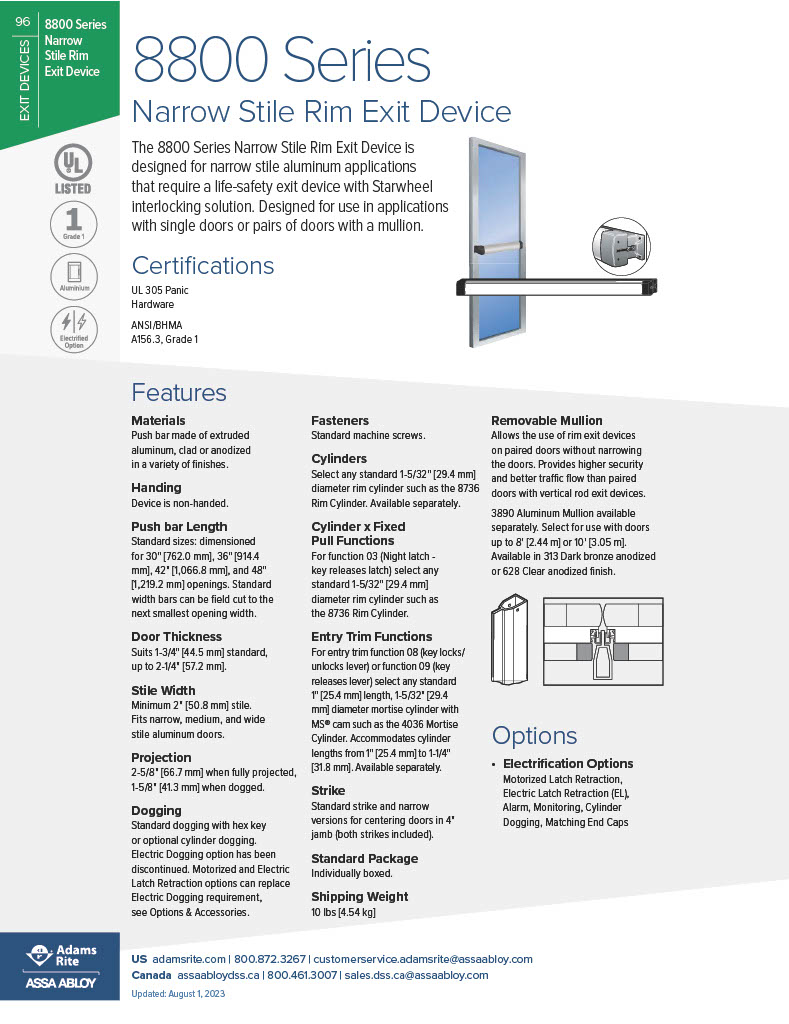

Features and description:

-Patented “Starwheel" bolt interlocks door to frame

• Strong, durable construction for a high level of security

• Easy to install

• Unobtrusive design for clean sight lines

• Materials: Pushbar made of extruded aluminum

• Handing: Device is non-handed. Lever Entry Trim is field reversible.

• Pushbar Length: dimensioned for 36",42" and 48" openings. Standard width bars can be field cut to the next smallest opening width.

• Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

• Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

• Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

• Dogging: Standard dogging with hex key.

• Fasteners: Standard self-tapping screws.

• Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

• 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

• Warranty: Five year limited.

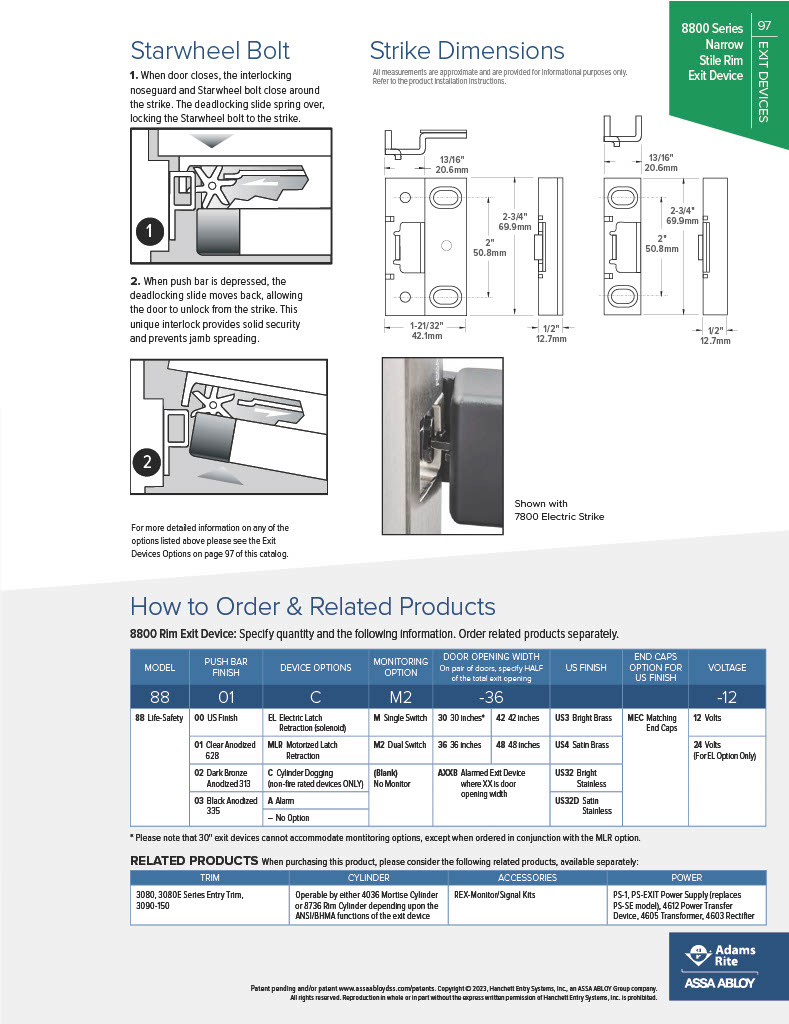

• Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

Specifications:

- UL 305 Panic Hardware

- ANSI/BHMA A156.3 Grade 1

- California State Fire Marshall

- New York City MEA*

Model: 8801A-36B, 8801A-48B, 8801A-42B
