Adams Rite 8802A-36B Narrow Stile Alarmed Rim Exit Device - Dark Bronze Anodized - 36"

Adams Rite 8802A-36B Narrow Stile Alarmed Rim Exit Device - Dark Bronze Anodized (313) - 36"

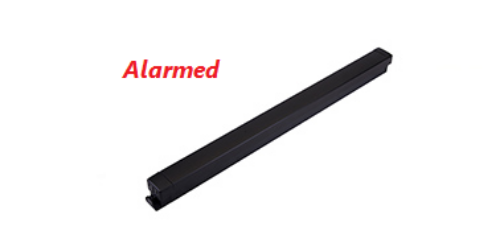

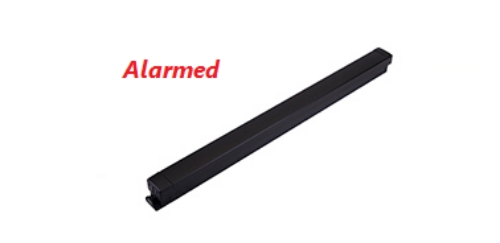

Alarmed Exit Device:This battery-operated option emits a loud (95 decibel) alarm tob notify management of unauthorized exit. Alarm is controlled by a key in any standard Mortise cylinder with MS® cam to arm, disarm, delay, or reset the alarm.

Will not alter the Life-Safety characteristics of the exit device in any way.

Red letters printed on the bar give a “hands off" warning to deter accidental activation.

Four AA alkaline batteries power twin horns for two minutes (or until disarmed) when pushbar is depressed. Beeps to signal need for new batteries.

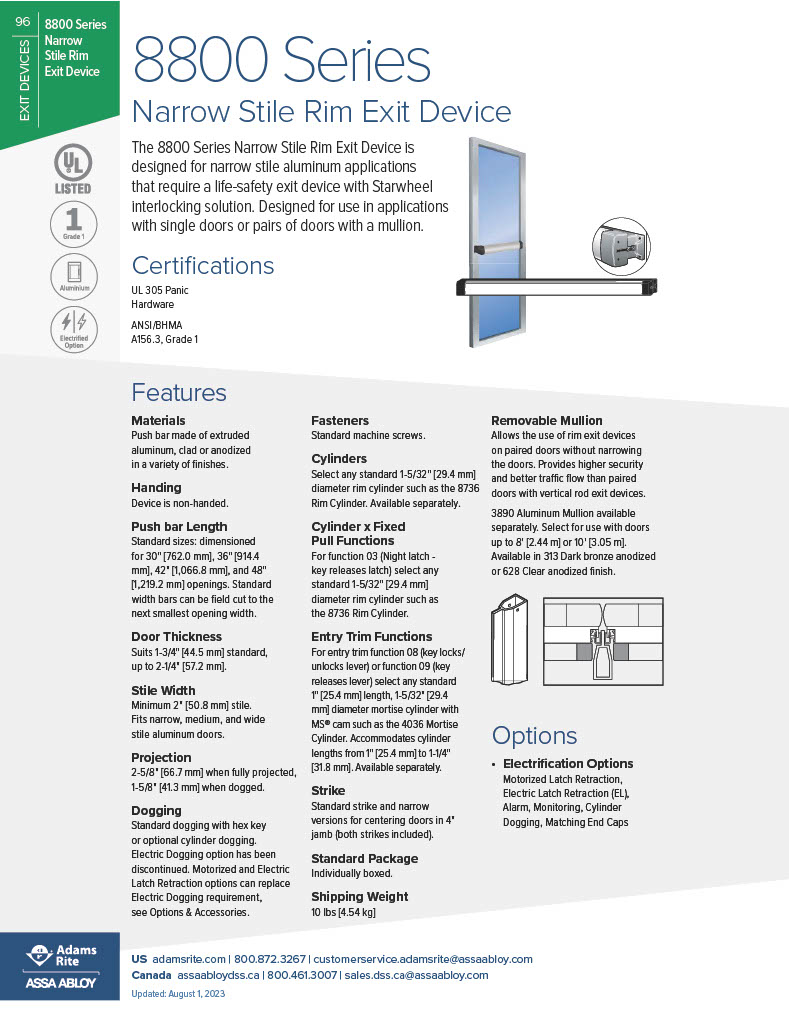

Features and description:

 Patented “Starwheel" bolt interlocks door to frame

 Strong, durable construction for a high level of security

 Easy to install

 Unobtrusive design for clean sight lines

 Materials: Pushbar made of extruded aluminum

 Handing: Device is non-handed. Lever Entry Trim is field reversible.

 Pushbar Length: dimensioned for 36" openings. Standard width bars can be field cut to the next smallest opening width.

 Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

 Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

 Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

 Dogging: Standard dogging with hex key.

 Fasteners: Standard self-tapping screws.

 Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

 Warranty: Five year limited.

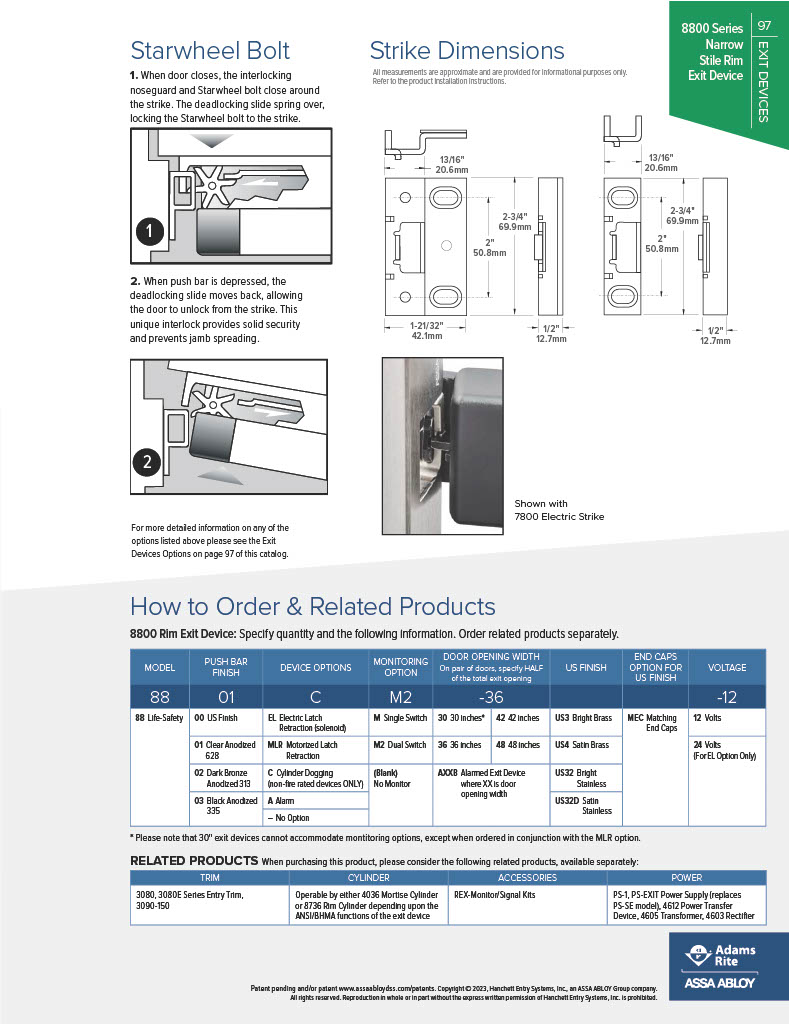

 Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

  2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

Strike: Made of hardened steel. Standard strike and narrow versions for centering doors in 4" jamb. (Both strikes are included).

Specifications:

 UL 305 Panic Hardware

 ANSI/BHMA A156.3 Grade 1

 California State Fire Marshall

 New York City MEA*
