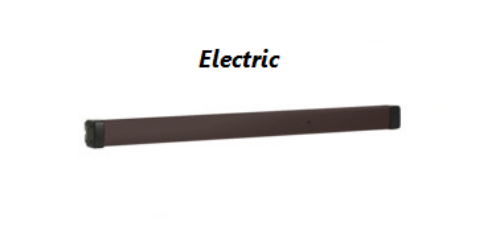

Adams Rite 8802SE Rim Exit Device - Silent Electrification Latch Retraction

Adams Rite 8802SE Narrow Stile Rim Exit Device - Silent Electrification Latch Retraction*-*Dark Bronze Anodized (313)

Silent Electrification Motorized Latch Retraction:The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.

The high speed/low current draw motor (0.4 Amps inrush current, 0.2 Amps hold current) offers a powerful yet efficient system that allows for lighter gauge wiring and an energy-saving reduced amperage powersupply.

The device also features electric latch retraction with electric dogging which minimizes hardware projection and noise.

The SE option is available with 3000/8000 Series Exit Devices and the RITE Door®.

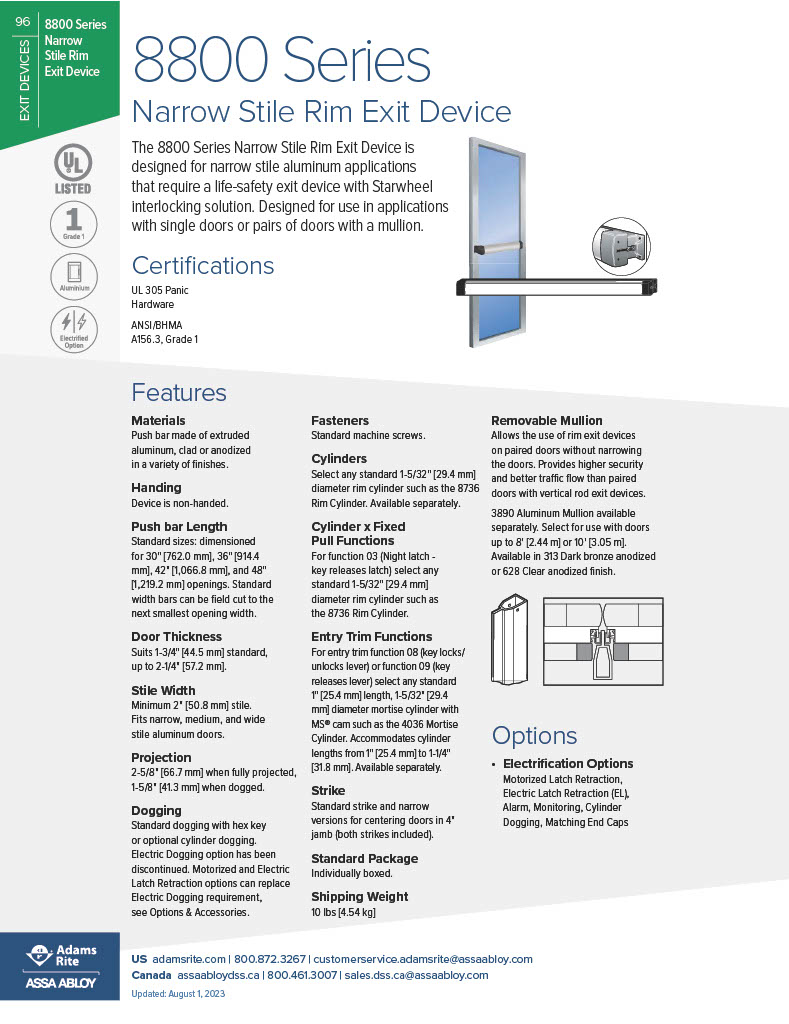

Features and description:

• Patented “Starwheel" bolt interlocks door to frame

• Strong, durable construction for a high level of security

• Easy to install

• Unobtrusive design for clean sight lines

• Materials: Pushbar made of extruded aluminum

• Handing: Device is non-handed. Lever Entry Trim is field reversible.

• Pushbar Length: dimensioned for 36",42" and 48" openings. Standard width bars can be field cut to the next smallest opening width.

• Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

• Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

• Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

• Dogging: Standard dogging with hex key.

• Fasteners: Standard self-tapping screws.

• Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

• 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

• Warranty: Five year limited.

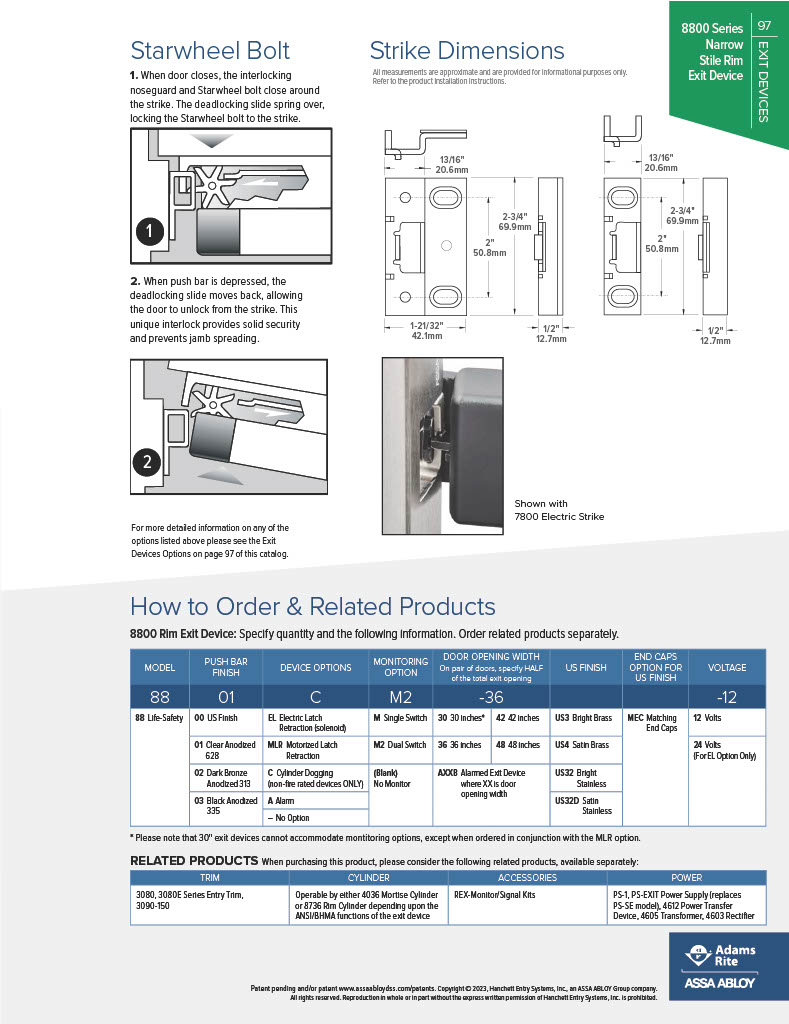

• Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

Specifications:

 UL 305 Panic Hardware ANSI/BHMA A156.3 Grade 1 California State Fire Marshall New York City MEA* Model: 8802SE-36, 8802SE-42
