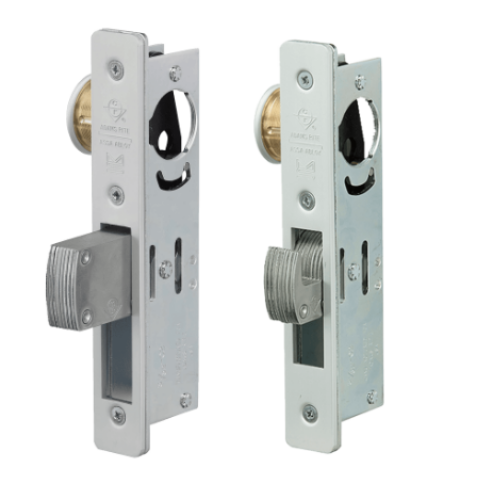

Adams Rite MS1850SN MS Deadlock With Flat Face Plate - ANSI Size

 Adams Rite MS1850SN MS Deadlock With Flat Face Plate  - ANSI Size

Function:

For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), the MS1850SN Deadlock provides maximum security and ease of installation. Its standard 1-1/2" backset dimension provides adequate clearance for the deep stop on the door jamb of hollow metal entrances.

Operation:

360 Degree turn of key or thumbturn throws or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1-5/32" diameter mortise cylinder from either or both sides(not included).Cylinder must have MS® dimensioned cam.

For Mortise CylindersClick Here.

Specifications:

Cylinder Backset: 1-1/2" only

Case: Steel with corrosion-resistant plating, measures 1" x 6" x 2-1/4".

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Non Handed

Options:For jambs too narrow to accept theStraight bolt(1), Use Theshorter bolt with hook shape(5) to provide equal security against door-prying attempts.  All use any make standard mortise cylinder and thus can be keyed into systems with other types of doors.

Standard Package: Individually boxed with machine screws for mounting.

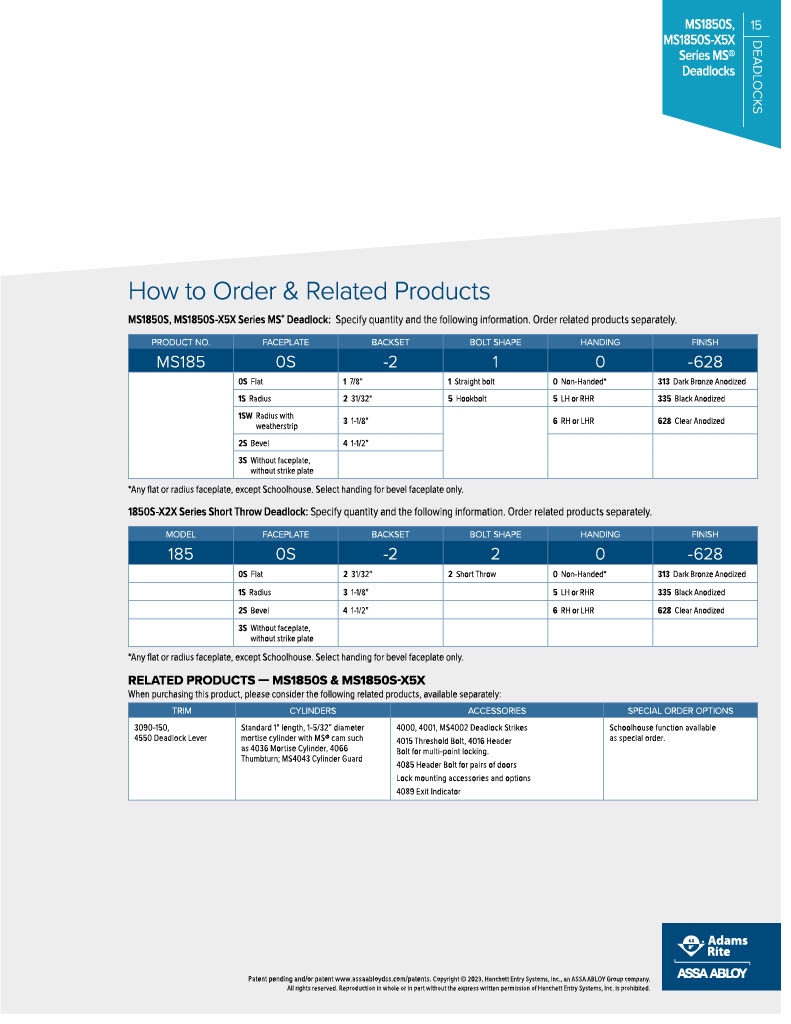

Model:MS1850SN-410-313, MS1850SN-410-335, MS1850SN-410-628, MS1850SN-450-313, MS1850SN-450-335, MS1850SN-450-628
