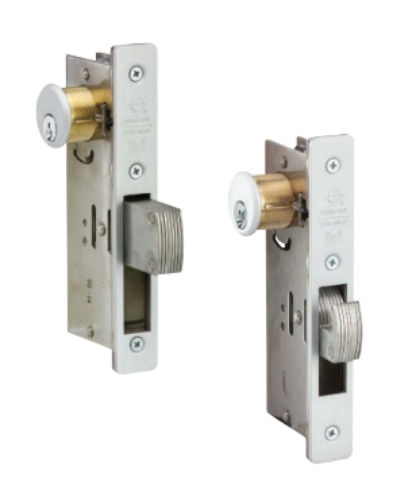

Adams Rite MS1950 Stainless Steel MS Deadlock - Flat faceplate

Adams Rite MS1950 Stainless Steel MS Deadlock - Flat faceplate

Function:

A huge bolt of laminated stainless steel, nearly three inches long, activated by an uncomplicated pivot mechanism, has made this basic MS® Deadlock the standard of the narrow stile door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be.

Operation:

360" turn of key or thumbturn throws or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1-5/32" diameter mortise cylinder or thumbturn from either or both sides (not included). Cylinder must have MS® dimensioned cam.

 For Mortise CylindersClick Here.

Specifications:

Cylinder Backset: 31/32", 1-1/8", or 1-1/2" only

Case: Fully stainless steel case and internal components, measures 1" x 6" x depth. Depth varies by backset

Bolt: 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw. Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super" hacksaws.

Faceplate: Measures 1" x 6-7/8".

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Options: For jambs too narrow to accept the Straight,long bolt (1), use the shorter bolt with hook shape (5) to provide equal security against door-prying attempts.

Non handed

Standard Package: Individually boxed with machine screws for mounting. Cylinders and/or thumbturns available separately.

Model:MS1950-250-628, MS1950-310-628, MS1950-210-628, MS1950-350-628, MS1950-410-628, MS1950-450-628, MS1950-250-313, MS1950-310-313, MS1950-210-313, MS1950-350-313, MS1950-410-313, MS1950-450-313
