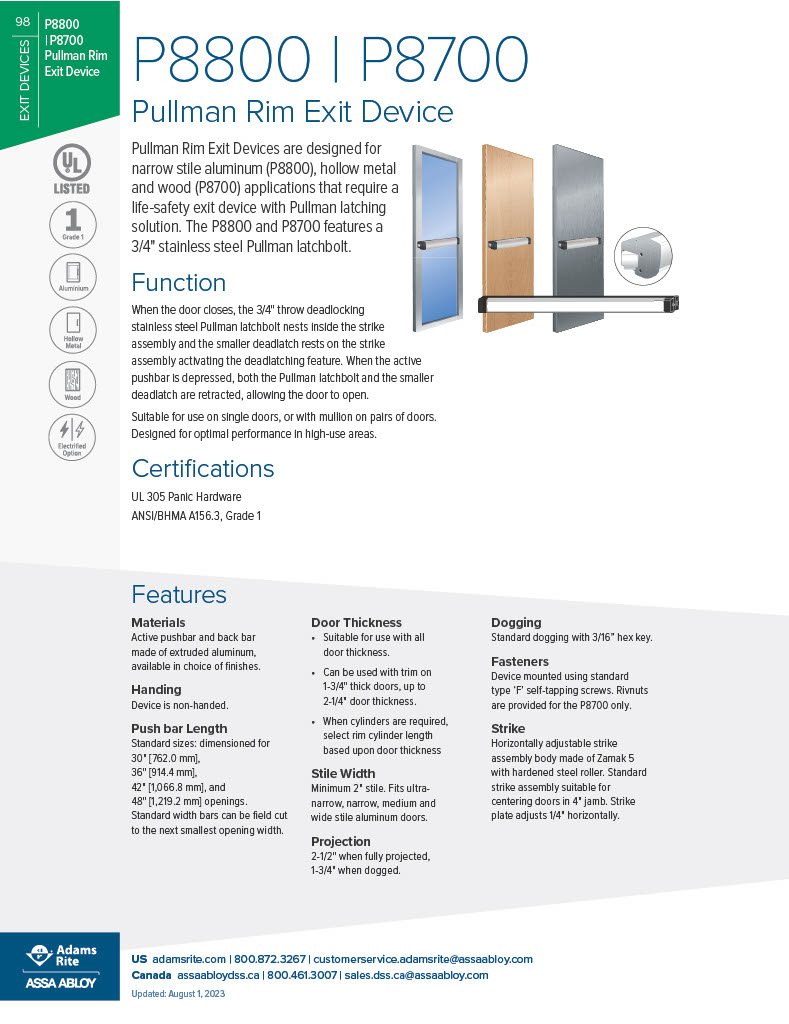

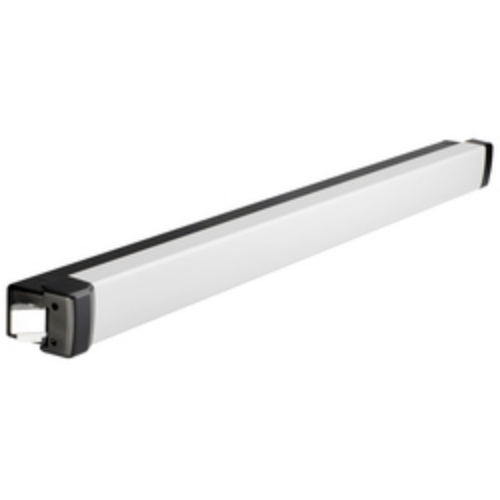

Adams Rite P8801 Grade 2 Narrow Stile Life Safety Rim Exit Device. Satin Aluminum Clear Anodized Finish

Adams Rite P8801 Grade 2 Narrow Stile Life Safety Rim Exit Device, Satin Aluminum Clear Anodized Finish

Function: When the door closes, the 3/4" throw deadlocking stainless steel Pullman latchbolt nests inside the strike assembly and the smaller deadlatch rests on the strike assembly activating the deadlatching feature.

When the active pushbar is depressed, both the Pullman latchbolt and the smaller deadlatch are retracted, allowing the door to open.

Suitable for use on single doors, or with mullion on pairs of doors. Designed for optimal performance in high-use areas.

Certifications: UL 305 Panic Hardware ANSI/BHMA A156.3-2014 Grade 1.

Features:

Materials:Active pushbar and back bar made of extruded aluminum, available in choice of finishes. Handing: Device is non-handed.

Push bar Length:  Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.  Standard width bars can be field cut to the next smallest opening width.

Door Thickness : - Suitable for use with all door thickness. - Can be used with trim on 1-3/4" thick doors, up to 2-1/4" door thickness.  - When cylinders are required, select rim cylinder length based upon door thickness.

Stile Width:Minimum 2" stile. Fits ultranarrow, narrow, medium and wide stile aluminum doors.

Projection: 2-1/2" when fully projected, 1-3/4" when dogged.

Dogging:Standard dogging with 3/16" hex key.

Fasteners:Device mounted using standard type 'F' self-tapping screws. Rivnuts are provided for the P8700 only.

Strike:Horizontally adjustable strike assembly body made of Zamak 5 with hardened steel roller. Standard strike assembly suitable for centering doors in 4" jamb. Strike plate adjusts 1/4" horizontally.
