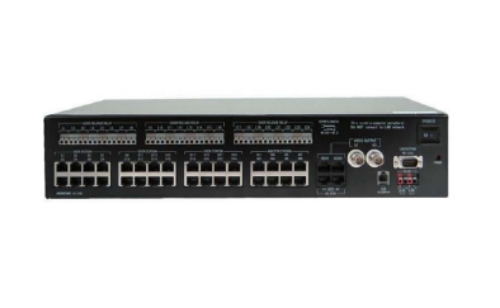

Aiphone AX-248C Exchange Unit - Up To 8 Master Stations And 24 Door Stations

Aiphone AX-248C Exchange Unit  - Supports Up To 8 Master Stations And 24 Door Stations

Description:

the AX-248C is a central exchange unit for the AX integrated audio and video security system. Audio/video and/or audio onlymaster or door stations connectdirectly to this unit via homerun CAT-5e wiring and RJ45 jacks.

The AX-248c supports up to 8 master stations and up to 24 door/sub stations. The AX-248C can be expanded in increments of 32 for up to 120 door/sub stations with the use of AX-320C Add-on CEU's

The Ceu handles the calling and communication signals for the system, as well as providing selective door reles=ase outputs, video outputs, DVR trigger outputs and CO line transfer outputs. System  set up and veriety of functions are programmed in the CEU with the use of supplied software. Power is applied  directly to the CEU via two PS-2420Ul power supplies. The serial connection is for uploading the system programming, for raw RS232 data output, or for system monitoringvia the supplied program.

The unit can be surface mounted to a wall, desk mounted, or mounted in a standard 19"EIA rack using the supplied brackets.

Features:

Wiring hub for AX system using CAT-5e cable

Controls all functionality for AX system

8 Master station ports

24 Door/sub station ports

2 24V DC power supply input terminals

24 Door release dry contacts (24V AC/DC 500mA)

2 BNC composite vidio outputs an video switching triggers

Outputs for AX320C add-on exchanges to support the maximum capacity of 120 doors

Co line transfer output to viking k-1900-5 programmable auto dialer

Rack mountable

Programmable functionality via supplied Software

Includes USB to serial adapteor and gender changer, software program and installatioin and operation manualon CD,and QuickStart Guide
