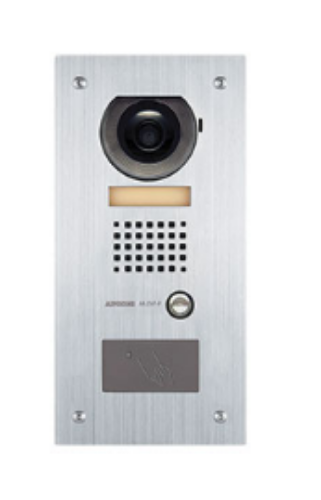

Aiphone AX-DVF-P Flush Mount Audio/Video With Card Reader Door Station For AX Series

Aiphone AX-DVF-P Flush Mount Audio/Video With Card Reader Door Station*For AX Series - Vendal Resistent*

Description:

The AX-DVF-P is a Flush Mount color video door station for the AX series.  The unit has a built in HID ProxPoint plus card reader (6005B). The reader connects to an access control system while the camera connects directly to the AX central exchange unit using CAT-5e wire with an Rj45 jack

The AX-DVF-P has an stainless steel faceplate. It includes a camera, microphone, speaker, call button and HID reader. Tamper resistent screws are provided for mounting.

When the call button on the station is pushed, the master station ring and the video monitor comes on with the image from the doorstations camera. The master station user then pushes the talk button to initiate communication. the person at the door station talks hands-free. If the visitor has valid credentials, he/she swipes his/her card and the access system controls the door

The AX door stations can be located up to980' from the AX CEU  and wired with CAT-5e cable. Additional equipment is available to interface with third party hardware for transmission over fiber optic cable or an IP network.

Features:

Color video camera with audio intercom and embedded card reader

HID ProxPoint Plus reader (6005B) Requires Separate wiring and host controller

2 way hands-free voice communication with AX master station

Call button to initiate call to master

White LED illuminator for low light conditions

RJ45 jack for easy CAT-5e connection

980' wiring distance from CEU on CAT-5e cable
