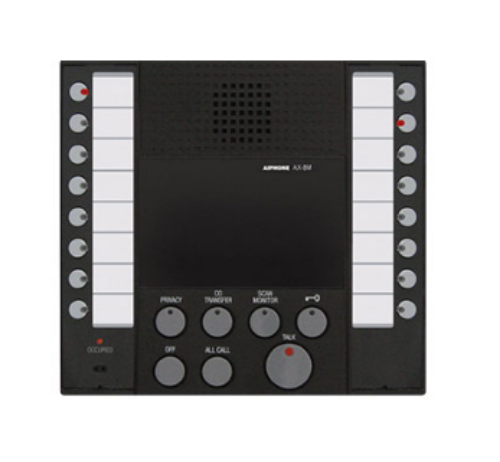

Aiphone AX-8M Audio Master Station For AX Series

Aiphone AX-8M Audio Master Station For AX Series

Description:

the AX-8M is an Audio only master station and can be one of the up to 8 masters suppoted in the AX integrated audio and video security system.

Each AX-8M master station can initiate and answer calls from up to 8 door or sub stations. The Master can be expanded with AX-16SW add-on selectors for a maximum capacity of 120 door/sub stations. its streamline design is mountable on a wall or desk.

When a door or sub station calls,a tremolo tone rings. To answer the call simply press the TALK button once and speak hands free, or press and hold the talk button to use as push-to-talk, release to listen. If access control is included, simply press the "key" button and the associated electric strike or megnetic lock will be activated. The AX-8M can answer the call from any audio only or audio/video door/sub on the system

Each master station connects via CAT-5e cable homerun to the AX central exchange unit. Feature and operation variables are set with the system set-up software and uploaded to the CEO.

Features:

8 Master station channels

24 Door/sub station channels

Led and call tone annunciation for programmable length or infinite call-in

Hands -free VOX communication or push-to-talk

All call to other master stations

Selective calling to any station in the system

 Add-on selectors in increments of 16 channels for max. Capacity of 120 door/sub stations

Privacy prevents other masters from listening in

CO transfer allows calls to transfer to a telephone number

Scan monitor allows listening to door/sub stations in programmed ime increments

Door release button activates door strike or magnetic lock

3.5mm speaker and mic jacks for computer-style handset connection

tone and volume adjustments for open voice and headset communication

Option connector for call extension or footswitch operation of talk function
