Aiphone DA-1AS Silver Door Phone Set W/ Power Supply

Aiphone DA-1AS Silver Door Phone Set W/ Power Supply

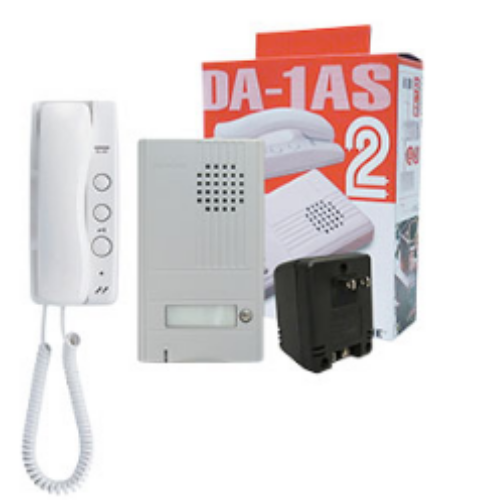

Set Containing: DA-1DS, DA-1MD & PT-1211C: DA-1DS is a silver door station that connects via two wires to a master DA-1MD. System power is the PT-1211C. The DA-1DS features a 12V AC output for door strike connection, call button and illuminated directory. The master handset DA-1MD features a call tone volume control, handset for communication and button for door release.

Features & Benifits:

Simple to use, Answer calls and unlock the entrance with simple, intuitive operation

Door release powered by door station without the need of an additional transformer

Service button to control an external device

Call tone volume control with mute indicator

Optional Call Extension Sounder

Designed for EL-12S door strike only

Backlit directory

Simple two-wire connection for intercom and door release ( Door strike wires directly to door station)

Vandal resistant door stations

Extra function button on tenant station can be used to activate light at entry ( Requires additional wiring)

Call extension sounder to hear call-in at remote location

Visitor screening:Safely and conveniently speak with visitors to determine their intent before unlocking the door

easy to install:Reduce installation costs by using existing doorbell wire. No doorbell No problem! The system only requires two wires, making installation a snap!

Specification:

Power Source:15V AC - Use AC transformer PT-1211C, 120V

Communication:Press and hold down button to call

Door Release:Contact rating: 16V AC, 20Ω min. resistance, or use EL-12S only

Wiring:Door to master: 2-cond., overall shield

Distance:Door to master: 180’(22AWG) 500’(18AWG)

Wire Type:Aiphone #822202
