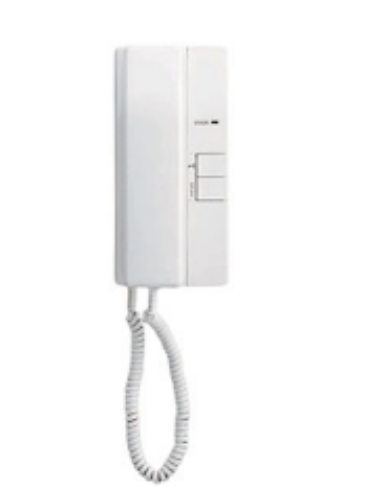

Aiphone IE-1GD Handset Master Station For 1 Door,3 Room Max

Aiphone IE-1GD Handset Master Station For 1 Door,3 Room Max

Master Handset - Master handset to communication with a single IE series door station. Door call-in is announced with a four stroke chime and an LED indicator. The IE-1GD features a handset for private communication, a door release button, chime volume control and a button to call sub handsets (IEH-1CD). Maximum three IEH-1CD may be connected in a system.

Specification

Power Source: 12-16V AC - Use AC transformer PT-1210N 12~24V DC, 160mA

Communication: Door calls in with 4-tone chime (vol. adjustable), pick up handset to reply, press CALL to call other inside stations with pre-tone and voice Door Release : Contact rating: 24V AC/DC, 500mA

Wiring: Door to master: 2-cond., overall shield Master to subs: 6-cond., overall shield

Distance :Door to master: 500’(22AWG) 1,180’(18AWG) Master to farthest sub: 250’(22AWG) 590’(18AWG)

Wire Type:Door to master: Aiphone #822202  Master to subs: Aiphone #822206
