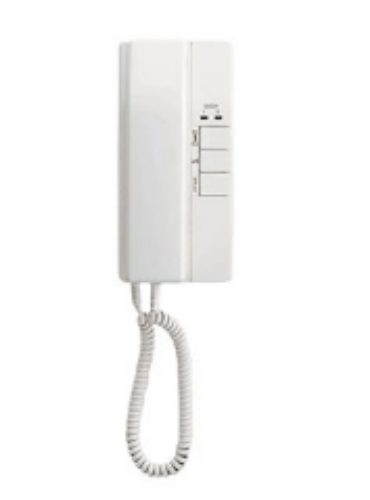

Aiphone IE-2AD Handset Master Station For 2 Door,3 Room Max

Aiphone IE-2AD Handset Master Station For 2 Door,3 Room Max

Master Handset - Master handset to communication with maximum two IE series door station. Door call-in is announce with either a two or four stroke chime and an LED indicator. The IE-2AD features a handset for private communication, a door release button, chime volume control and a button to call sub handsets (IEH-1CD). Maximum three IEH-1CD may be connected in a system.

Power Source:12-16V AC - Use AC transformer PT-1210N; 12-24V DC, 200mA

Communication:Door calls in with 4 or 2-tone chime to all stations, chime can be cut at sub, pick up any handset to reply, press CALL to call other stations with pre-tone and voice

Door Release:Contact rating: 24V AC/DC, 500mA

Wiring:Door to master: 2-cond., overall shield Master to subs: 6-cond., overall shield

Distance:Door to master: 500’(22AWG) 1,180’(18AWG) Master to farthest sub: 250’(22AWG) 590’(18AWG)

Wire Type:Door to master: Aiphone #822202 Master to farthest sub: Aiphone #822206
