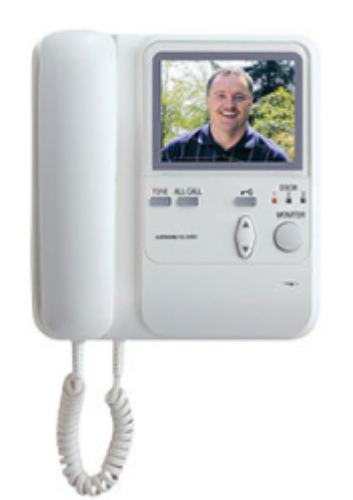

Aiphone KB-3MRD Color Master Station

Aiphone KB-3MRD Color Master Station

Features:

Clear and bright image with color TFT LCD monitor and color video door station

Three color video door stations, five inside monitor stations

Instant voice call-in with image

Selective Call or All Call

Chime or receiver volume control

Optional selective door release with RY-3DL

330' total distance looped between monitors

TILT camera control

Specifications:

Power Source:24V DC - Use PS-2420UL

Calling:Chime, image and audio approx. 30 sec., hear and see door instantly

Communication:Pick up at any station to reply, 2-1/2 min. timed, recycle with MONITOR, monitor audio and image of door, hands-free with MONITOR, press a station selector and call by voice, the called station replies hands-free, lift handset, press All Call button to call the other stations with pre-tone and voice

Video Monitor:4" direct-view TFT color LCD

Scanning Line:525 lines

Image View Area:Approx. 2’ horizontal, 3’8"~7’9" vertical  at 4’3" high and at 20" in front of camera

Night Viewing:Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen

Door Release:Contact rating: 12V AC, 400mA Use RY-24L for larger contact rating

Wiring:Door to master: 2-cond., mid cap, solid, non-shielded Master to subs: 2 x 2-cond., mid cap, solid, non-shielded

Distance:Master to door: 330’(22AWG) 650’(18AWG) Master to farthest sub: 165’(22AWG) 330’(18AWG) Master to IER-2: 165’(22AWG) 330’(18AWG)

Wire Type:Aiphone #871802
