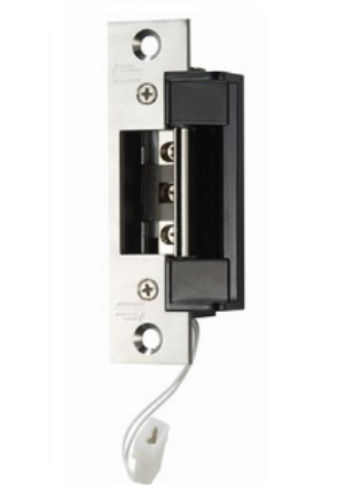

Alarm Controls AES-200 Electric Strike - Grade 2

About this item

Alarm Controls AES-200 Electric Strike - Grade 2

Features & Description:

Designed for medium-duty applications, the all-in one AES-200 offers variable voltage and field selectable fail secure/fail safe operation.

Deep latch cavity accommodates cylindrical locksets with a 5/8" throw in steel, wood or aluminum frames. Easy to install and connect.

▪ BHMA Grade 2

▪ 1000 lb. static strength

▪ Factory cycle tested to 500,000 cycles

▪ Strike depth 1-1/2"

▪ 5/8" throw

▪ Adjustable keeper

▪ Strike monitored with SPDT (1 form C), dry contacts

▪ Field selectable, fail safe/fail secure

▪ Universal 12 through 24VAC or VDC input

▪ Fully reversible for right or left hand doors

▪ Mounting kit includes two 4-7/8" stainless steel face plates (one round corner and one square corner) ▪ Horizontally adjustable, pre-load capable

▪ Built-in buzzer, sounds when voltage is applied

▪ Current draw 12 VAC 200mA, 24 VAC 70mA

▪ Current draw 12 VDC 130mA, 24 VDC 70mA
