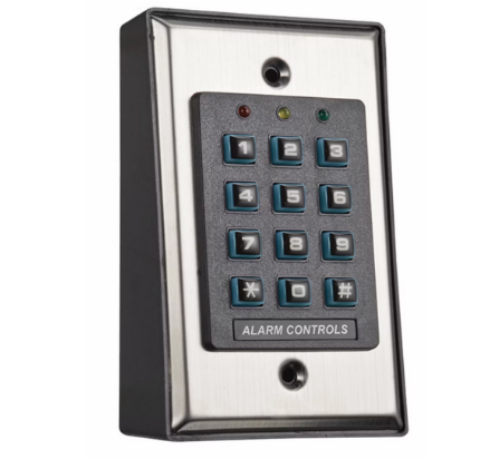

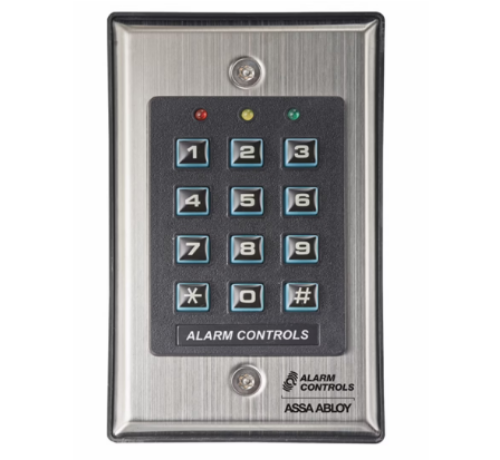

Alarm Controls KP-100A Surface or Flush Mount Indoor Keypad

Alarm Controls KP-100A *Self-contained digital keypad suitable for residential and commercial installations.*

Surface or Flush Mount Indoor Keypad

Standard Features

Single gang flush mount stainless steel plate with surface mount back boxTrue 10-digit operation (10 digits plus * and # keys)Capacity up to 1000 user codes, length from 4 to 8 digits50 visitor codes, programmable for one time use or with time limitFully programmable from the keypadProgrammable passage and false code lockout mode capabilitiesBuilt-in tamper switchRed, green, and yellow LEDs for status and programming feedbackFail safe or fail secure capableRequest to Exit (REX) inputAudible and visible key press; keys are backlit for visibilityFor indoor applications only3 year warranty

Specifications

Dimensions

Keypad: 2-3/4"W x 4-1/2" H x 5/32"DSurface Mount Back Box: 2-13/16" W x 4-5/8" H x 1-7/16" D

Electrical

Operating Voltage: 12-24 VAC/VDC [+/- 10%]Operating Current: − 12 VDC: 40mA at rest, 100mA active − 24 VDC: 70mA at rest; 50mA activeOutput Relay: 1 SPDT dry contacts; 5A/30 VDC MaxREX Input: N/O dry contact; 1mA/5VDC MaxTamper Switch: N/C dry contact; 50mA/24 VDC Max

Operating Temperature

-4 Degree F to +158 DegreeF [-20 Degree C to +70 Degree C]Humidity: 5-95% relative humidity non-condensing
