Securitron DK-16 Digital Keypad System - Secure, Easy-to-Program Single Door Control System (59 Users)

Securitron DK-16 Digital Keypad System - Secure, Easy-to-Program Single Door Control System (59 Users)

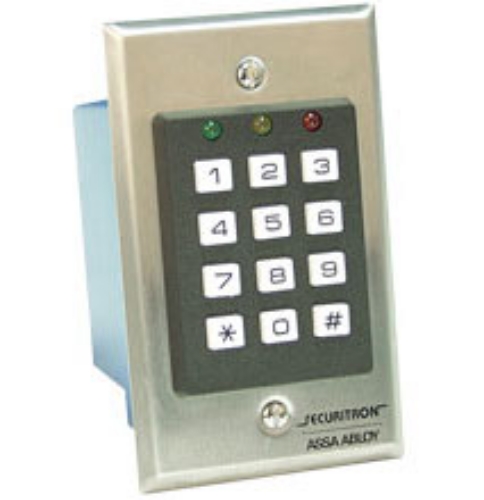

Features: Stainless Steel plate Telephone-type keypad i.e 12 key with 3x4 keypad with engraved and paint filled numbers in plastic keys on a single gang box Red, green and a yellow LEDs mounted on the face for status and programming feedback Digital Keypad System circuit board is a remote unit for increased security Audible keystroke echo Digital Keypad System circuit board mounts in a plastic enclosure and provides for 59 multiple users, expandable to 119 Wiegand output available User code and/or hard code disable feature 5 Amp DPDT relay output for lock control and alarm shunt, camera call-up or other device interface Request-to-Exit (REX) input True 10 digit operation (keys are not paired), 3 LEDs and a beeper 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable MagnaCare Lifetime Replacement No Fault Warranty

Dimensions: Keypad: 2-3/4"Wx4-1/2"Hx5/32"D Enclosure: 6"Wx8"Hx3"D

Current Draw and Voltage: 7mA at rest, 160mA active, 12VAC or VDC 20mA at rest, 190mA active, 24VAC or VDC

Operating Temperature: CPU: +32 to +158F [0 to +70C] Keypad: +32 to +110F [0 to +43C]

Shipping Weight: 4.2 lbs

Finishes: US32D/630 - Satin Stainless Steel

Model:DK16
