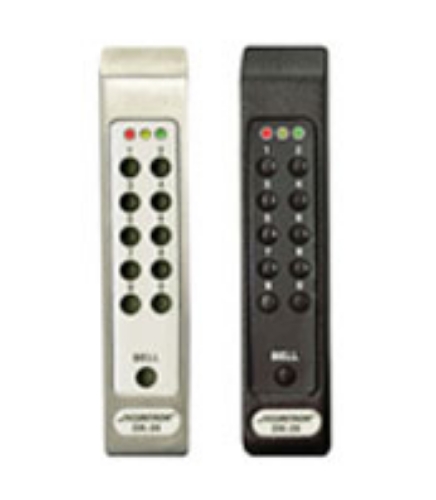

Securitron DK-26SS - Digital Keypad System - Narrow Stile - Satin Stainless (59 Users)

Securitron DK-26SS - Digital Keypad System - Narrow Stile - Satin Stainless (59 Users)

Features: Cast stainless steel with 11 EPDM rubber keys Weatherproof and vandal resistant Operates on 12V or 24V / AC or DC current Mounts on a narrow mullion True 10 digit operation (keys are not paired) Wiegand output available Digital Keypad System circuit board mounts in a plastic enclosure and provides for 59 multiple users, expandable to 119 Expansion board adds users, real time calendar, more relays and outputs User code and/or hard code disable feature 5 Amp DPDT relay output for lock control and alarm shunt, camera call-up or other device interface Passage Mode and Lockout Mode Request-to-Exit (REX) input 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable 3 LEDs and a bell button MagnaCare Lifetime Replacement No Fault Warranty

Dimensions: Keypad: 1-1/2"Wx7"Hx7/8"D Enclosure: 6"Wx8"Hx3"D

Current Draw and Voltage: 7mA at rest; 160mA active, 12VAC or VDC 20mA at rest; 190mA active, 24VAC or VDC

Operating Temperature: CPU: +32 to +158F [0 to +70C] Keypad: -22 to +158F [-30 to +70C]

Shipping Weight: 5 lbs.

Finishes: US32D/630 - Satin Stainless Steel

Model:DK26SS

CE:EN50091-1, EN 61000-6-2 Approved
