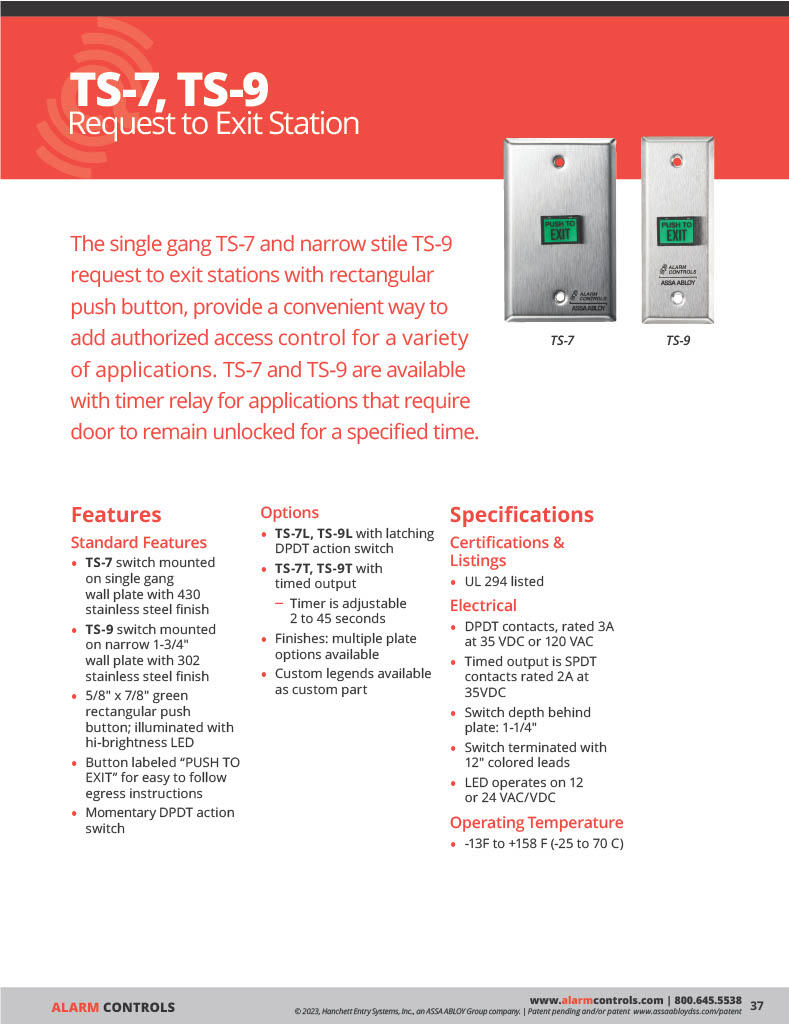

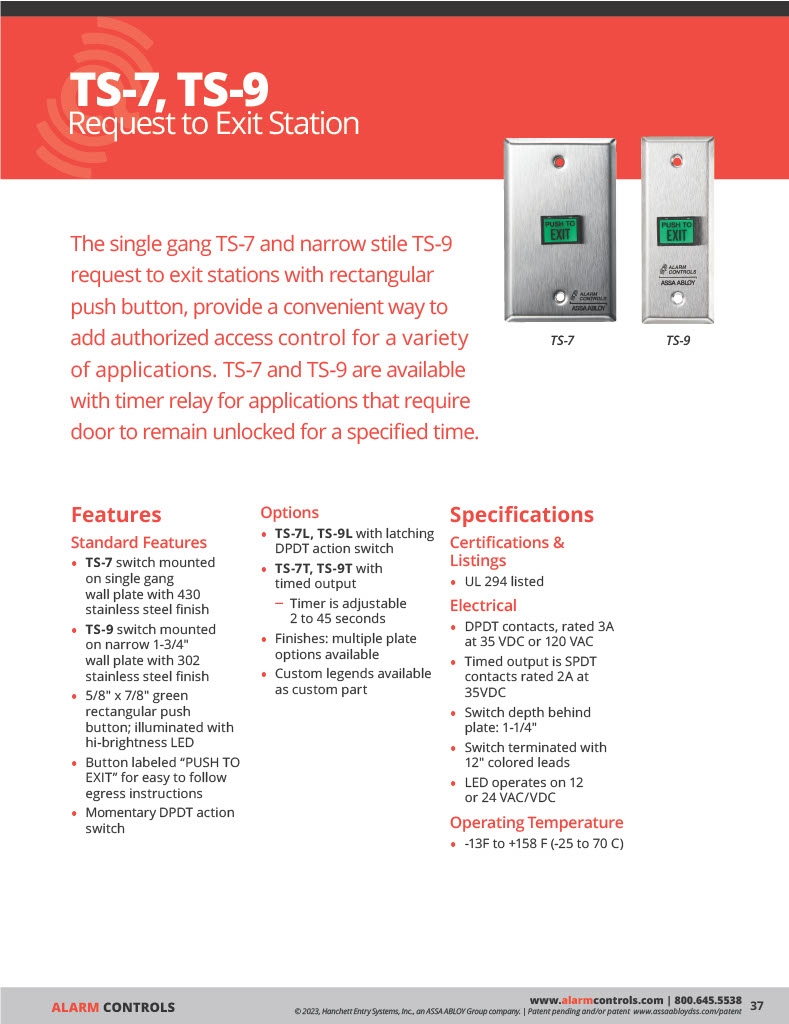

Alarm Controls TS-9 5/8" x 7/8" Green Button, "PUSH TO EXIT", DPDT Momentary, Narrow Plate

**Alarm Controls TS-9 5/8" x 7/8" Green Button, "PUSH TO EXIT", DPDT Momentary, Narrow Plate, with latching action switch

Features:**

TS-9 are available with timer relay for applications that require door to remain unlocked for a specified time.

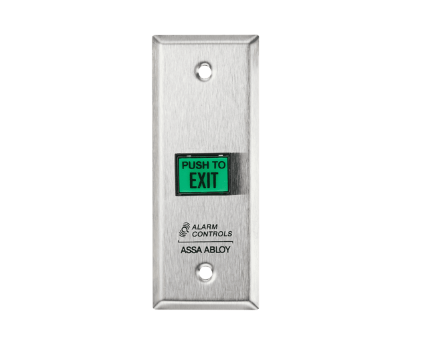

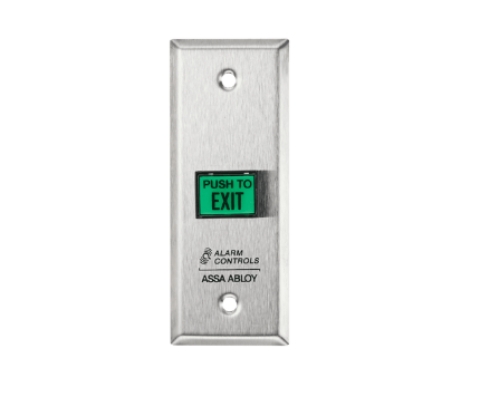

TS-9 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish.

5/8" x 7/8" green rectangular push button; illuminated with hi-brightness LED.

Button labeled "PUSH TO EXIT" for easy to follow egress instructions.

Momentary DPDT action switch.

Certifications & Listings: UL 294 listed

Electrical:

DPDT timed contacts, rated 3A at 35 VDC or 120 VAC.

Timed output is SPDT contacts, rated 2A at 35 VDC.

Switch depth behind plate: 1-1/4".

Switch terminated with 10" colored leads.

LED operates on 12 or 24 VAC/VDC.

Operating Temperature: -13F to +158 F (-25 to 70 C)
