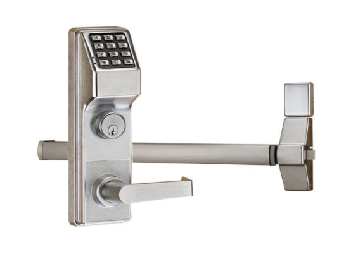

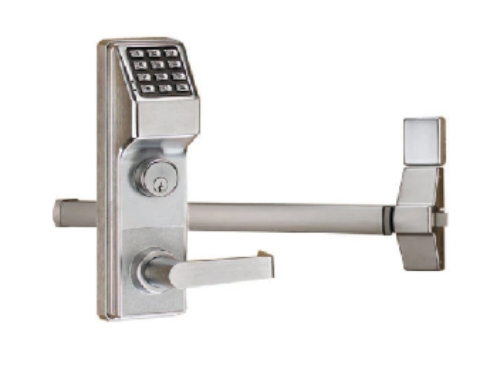

Alarm Lock ETDLN S1G 26D Networx Pushbutton Exit Trim, Straight Lever, Satin Chrome
Product Details
Alarm Lock ETDLN S1G 26D Networx Pushbutton Exit Trim, PHI 2200, Straight Lever, Weatherproof, Satin Chrome
(Panic Exit Device must be ordered separately)
User Codes: 5000 Code Length 3-6 digits, - Audit Trail Events: 40000, - Scheduled Events: 500, - Lockdown (Privacy): Global lockdown via lock, server or optional keyfob (available separately) , - Cylinder:Generic rim cylinder supplied. For other manufacturers cylinders, adapters can be ordered separately -Weather-Proof: -31 to 151˚ F, - Door Thickness: Fits 1 5/8" to 1 7/8", - Strike: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included, - Handing: Non-handed, fully field reversible - Power: 4 C-cell batteries (included), - Keypad: All matel, 12 button. Basic functions programmed through keypad, Doot prep: Standard ANSI A115 series prep, modified by additional through-bolt hules, - Battery/Cycles Typical: 4 C cells; 500,000 or up to 5 years
Trilogy Networx Locks communicate wirelessly via Ethernet, Bluetooth LE or 802.11B/G, for a comprehensive wireless networked door access control system, eliminating door-to-door programming and audit trail retrieval and providing all standalone Trilogy lock functionality plus new network-wide and emergency lockdown features.
Unsurpassed 5-year+ battery life, typical, (Automatic battery status reports at the PC; visual and audible low-battery status indicators at lock(s).
Trilogy Networx and gateway modules have an integral transceiver for highly-efficient 900MHz bidirectional communications, for longer range and less interference than with more common 2.4GHz spread spectrum devices, Alarm Lock devices require NO wiring; NO splitters or repeaters; NO hardwiring to the host/server; NO extra power supplies; and NO access controller/panels.
In 10 seconds, emergency global lockdown can be activated from the Networx PC, any Networx lock or Keyfob (RR-4BKEYFOB), (This priority emergency command is lightning-fast system-wide and supersedes all scheduled programs or updates, etc. However, if desired, locks may be selectively programmed to be excluded from emergency global lockdown function, i.e., they will ignore the command. )
System-wide free-passage enable or disable, can likewise be activated from the Networx PC.
Locks easily retrofit standard locks and support up to 5000 users with 3-6 digit numeric PIN codes and PDL-Series also support prox ID card users (virtually all HID format proximity technology ID cards or credentials.)
On demand, in seconds, wirelessly change users, schedules, lock features or retrieve audit trails of up to 40,000 events/lock from any networked PC. (Note: Transaction processing time is dependent upon system capacity, the more locks/gateways and the more data to be up/ downloaded, the longer the time.)
Unattended programming updates or event log retrievals can be scheduled to run automatically, saving manpower and productive time.
Secure 128bit AES PC encryption and proprietary RF-link lock communication encryption protects the system from interference or tampering (WEP or WPA compatible with wireless modem).
Seamless upgrade path for original Trilogy users: Intermix with existing Trilogy standalone lock installations and share one database and familiar Trilogy lock and software functions: Trilogy Wireless Networx Locks seamlessly integrate in an existing Alarm Lock Trilogy standalone door access system and share the same single DL-WINDOWS database (requires v4.1.x or higher). Existing rilogy users can easily add one wireless Networx Lock, or as many as two thousand, to an existing system seamlessly with no downtime.
Remote System Management: VPN-connection /remote capability for accessing the Networx System and controlling up to all 2000 locks, with all the security and peace-of-mind of your IT network.(No special modems required.)
Wireless locks are fully keypad programmable and can be up and functioning even before their wireless network is configured, so IT departments don't have to coordinate with physical security departments or locksmiths.
Free Alarm Lock DL-WINDOWS software doesn't require a dedicated computer or a special computer network or costly server software licenses, it simply runs as a secure Microsoft Windows-based application, on any computer system (as basic as a desktop or laptop PC), a wired or wireless router, and a gateway module or on an internal LAN with static IP add.
Minimizing hardware & installation costs, a single gateway module can interface between the PC network and up to 63 Networx locks, with a range of up to 900' clear field range or up to 200' depending on building construction. At its maximum, a Trilogy Networx system can comprise up to 32 gateways for the networking of up to 2000 locks or access controlled doors. Gen. 2 Gateways & Expanders for easiest networking.
Wall- or ceiling-mountable, compact gateway modules are available in wireless/hardwired and wired-only versions (with Power Over Ethernet (POE) option). The hybrid model connects using either 802.11, Ethernet cable or 100Base-TX (using RJ45 Jack); the wired versions use an RJ-45 Ethernet cable. Networx communications support both wired Ethernet 10BaseT and wireless 802.11.F
For the fastest most reliable networked system, in discovery setup mode, the system will locate and DL-WINDOWS will display each lock's signal strength at each installed gateway, so you can select it and optimize reliable communications and eliminate guesswork.
Lock programming, user- and usage-data are stored locally at the battery-powered lock for uninterrupted door access usage in a power outage or server offline situationEnterprise Networks, Real-Time Performance.
Networx locks can be used as wireless, singledoor controllers in real time too.Use with Continental Access CA4K, CA3000, or Lenel OnGuard Integrated Access Control & Video Security and Software House Connected Partner Program Platforms.
MODEL: ETDLN S1G ALARM LOCK, ALARM LOCK ETDLN S1G, TRILOGY ETDLN S1G, ETDLN S1G TRILOGY, Networx ETDLN S1G, ETDLN S1G, Networx ETDLN S1G
