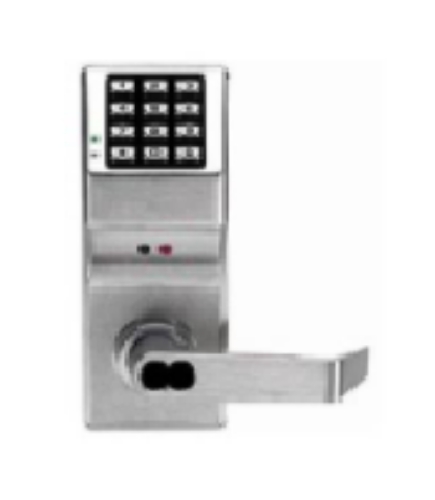

Alarm Lock Trilogy DL3200IC-S US26D Pushbutton Cylindrical Door Lock, Schlage I/C Prep, Less Core

Alarm Lock Trilogy DL3200IC-S US26D Pushbutton Cylindrical Door Lock, Schlage I/C Prep, Less Core

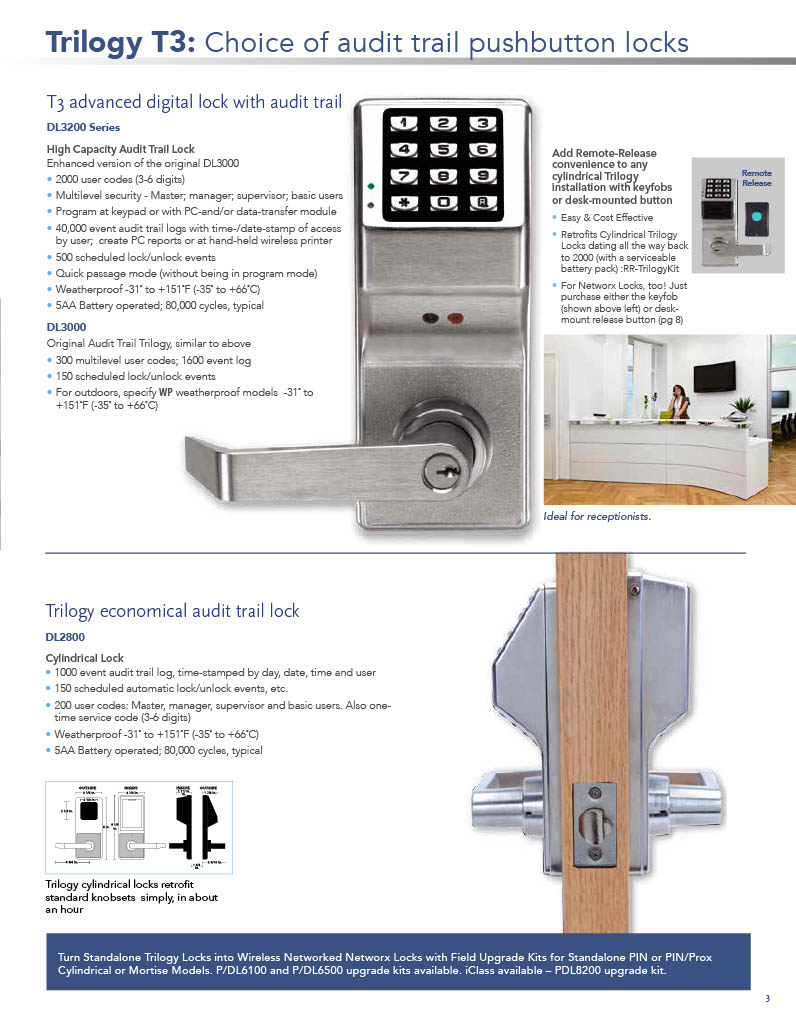

Alarm Lock - Trilogy DL3200 Series:

Rugged clutch mechanism and Grade 1 durability ensure long life

Program at keypad or with PC-and/or data-transfer module

2000 user codes (3-6 digits) including: Master, manager, supervisor and basic user. Also one-time entry service code

 500 scheduled events, including 4quick schedulesfor programming the 4 most common time schedules in one step

Quick passage mode (without being in program mode)

40,000  event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI)Interface Cable & Sofware(sold separately) to any PC using DLWindows Software.Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc

Hand-held infrared(AL-IR1) printer can be used to print on-site from the lock(sold separately).

Data Transfer Module (AL-DTMII)can also beused to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time(sold separately).

Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 Degree F to -31 Degree F (+66 Degree C to -35 Degree C)

Entry allowance from 5-15 seconds - Greater security withtemporary keypad lockoutafter 3 unsuccessful code-entry attempts

Real time clock allows logging of events to within 1 second of accuracy

4 time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock

Battery operated; Uses 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drivemotor. 80,000 cycles typical.

Available in standard key override and interchangeable core modelsDL3200ICaccepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.

Models: Alarm Lock, Trilogy,DL3200IC, DL3200IC26D, DL3200IC-26D, DL3200ICUS26D, DL3200IC US26D, DL3200IC 26D, Finishes: Satin Chrome,

Keypad:Rugged, vandal-resistant, all metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 15 seconds.

Operation:Durable clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.

Door Thickness:1 5/8" to 1 7/8." Other thicknesses. Please consult factory.

Backset:2 3/4" Standard. 2 3/8" backset also available.

Standard Key Override Cylinder:Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.

Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.

Latchbolt:UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.

Strike:1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included. With screws for wood or metal jambs.

Latch Front:1 1/8" x 2 1/4" wrought brass or stainless steel.

Handing:Non-handed.

Door Prep:Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.

Compliances:Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification and FCC certified.

ADAcompliant levers.
